BSEED Wall Touch Switch 1/2/3Gang 1/2Way Light Switch Dimmer Function Parts Glass Panel Frames EU Wall Sockets DIY Parts Only
Notice:
☆Our 1/2/3gang 2way switch has updated, they couldn’t work with the old ones from your previous orders before June 1st 2024, please make sure to buy 2-3pcs together.
☆The glass panel is just a panel and doesn’t contain switch function keys ,Function Keys need to be purchased separately.
☆The Metal Plate is included in the panel .
【Touch Light Switch】 Introduction:
Rated Current: 10A
Rated Voltage: 110V-240V AC
Load: 3-800w/Gang, 2000W Total
Capability allowance: -15%~+ 10%
Working temperature: -20°C~ +70″C
Relative humidity: 10% -93%(non-condensing)
Operating frequency: 50/60Hz
Wireless consumption: ≤0.02W
Certifications: CE, BS, RoHS, GCC, FC
Life time: 100,000 times
Wire:NO need Neutral Wire
WIFI:No wifi function
Back Light: ON-light Blue OFF-Weak Blue (can not be canceled)
Moduel shape:Round
【Dimmer Switch】 Introduction:
Rated Current: 10A
Rated operational voltage: 110V~240V AC
Capability allowance: -15%-+ 10%
1Way Dimmer Load: 3-700w/Gang, 700W Total
2Way Dimmer Load: 3-200w/Gang
Working temperature:-20°C~ +70*C
Operating frequency: 50/60Hz
Relative humidity: 10%-93%(non-condensing)
Energy consurmption: 0.5W
Certifications: CE, BS, RoHS, GCC, FC
Life time: 100,000 times
Wire:No Need Neutral Wire
WIFI:No wifi function
Back Light: ON-light Blue OFF-Weak Blue
Moduel shape:Round
(1 gang Dimmer switch we will send an adapter, 2 gang Dimmer switch we will send 2 pieces adapter, and each light needs an adapter)
Operation Step:
1.Please make sure you use the dimmable LED light bulbs before the operation.
2.Touch the button slightly to turn the switch on and off .
3.Touch the button and hold for 2 second to brighten the bulb ,and then loose the button press and hold again to reduce the brightness .
4.If the bulb starts to blink during the opearation,pls connect the white adapter between the light bulbs for resistance.
【Socket】 Introduction:
Item：EU /FR Plug without glass frame
Current:16A
USB Current :2.1A (Double)
Working Voltage:110 V-250 V
USB Voltage:5V
Certifications:CE, BS, RoHS, GCC, FC
Wire:with ground wire
Module shape:Round
Note:

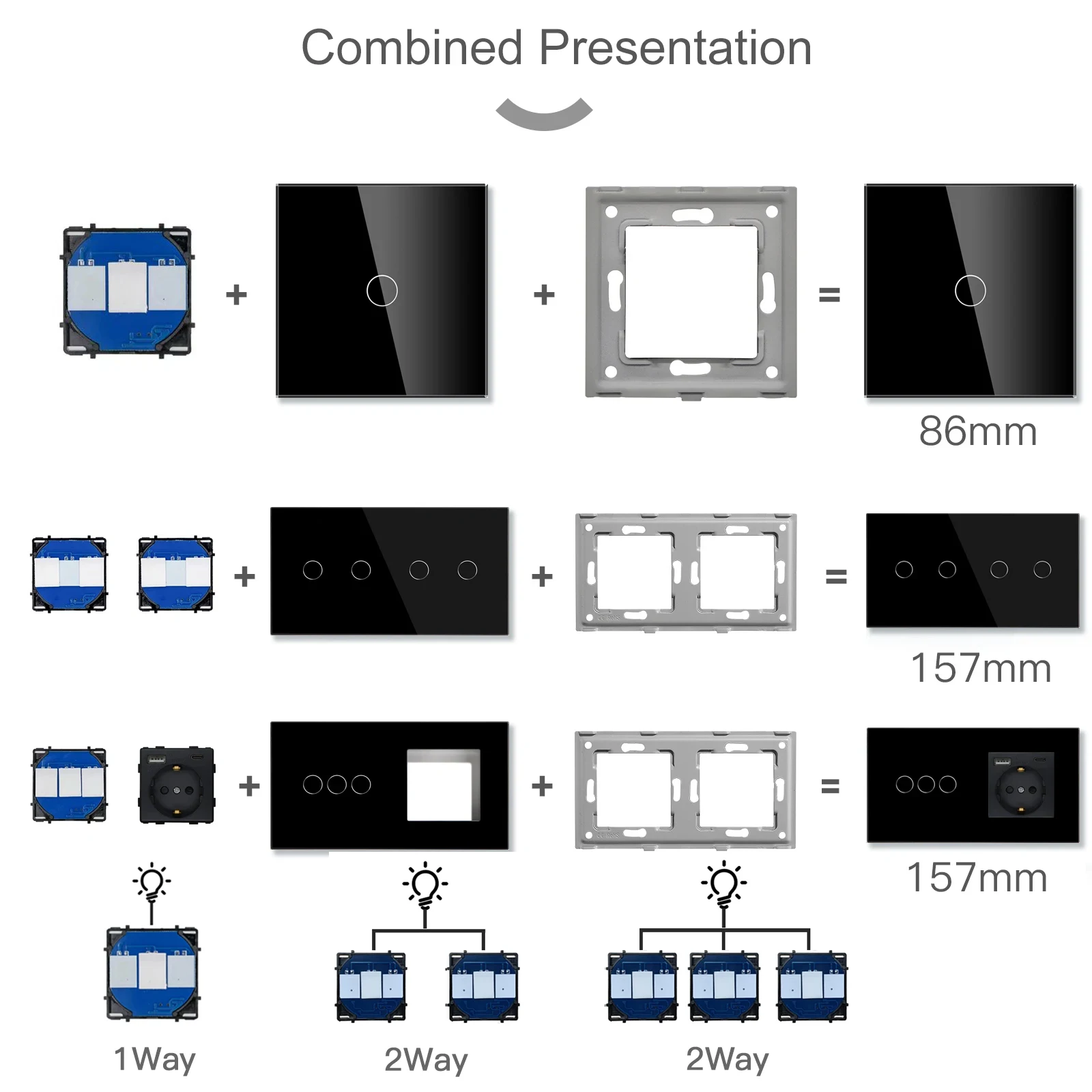

A Regular Touch Switch can only work with another Touch Switch and will not work with Mechanical Switches.
A Bseed 2 way Touch Switch can only connect with another Bseed 2-3 way touch switch.
A Touch Dimmer switch must be connected to another Touch Dimmer Switch.
3.You have to cut off the power and during the installation.
Matching Step:
1.Long Press The Master Switch (with light wire) Until The Backlight Flashing.2.Tap the Slave Switch A & B Slightly for one second to make the flashing stop then the matching is accomplished.3.Repeat 1&2 step for matching second or third button.
