BSEED EU Standard Plastic Frames Mechanical Button Switches 1/2Way Power Sockets With USB Type-c ST/TV/CAT6 DIY Function Parts
Features:
*DIY Function Spare Parts ,The Socket & Switch doesn’t Contain Outside Frames, so you need to buy the frame separately.
1. Popular Colors are available: White, Black,Gray.
2. Waterproof and Resistance Scratch. Protection Against Electric Shock.
3. Different quality testing during production, to ensure each switch work well before it is delivered to customers.
4. Elegant look, Suited greatly with many modern decor styles. It can be applied to drawing room, bedroom, corridor, kitchen, bathroom, Office and so on.
Product Introduction:
Color:Black Series

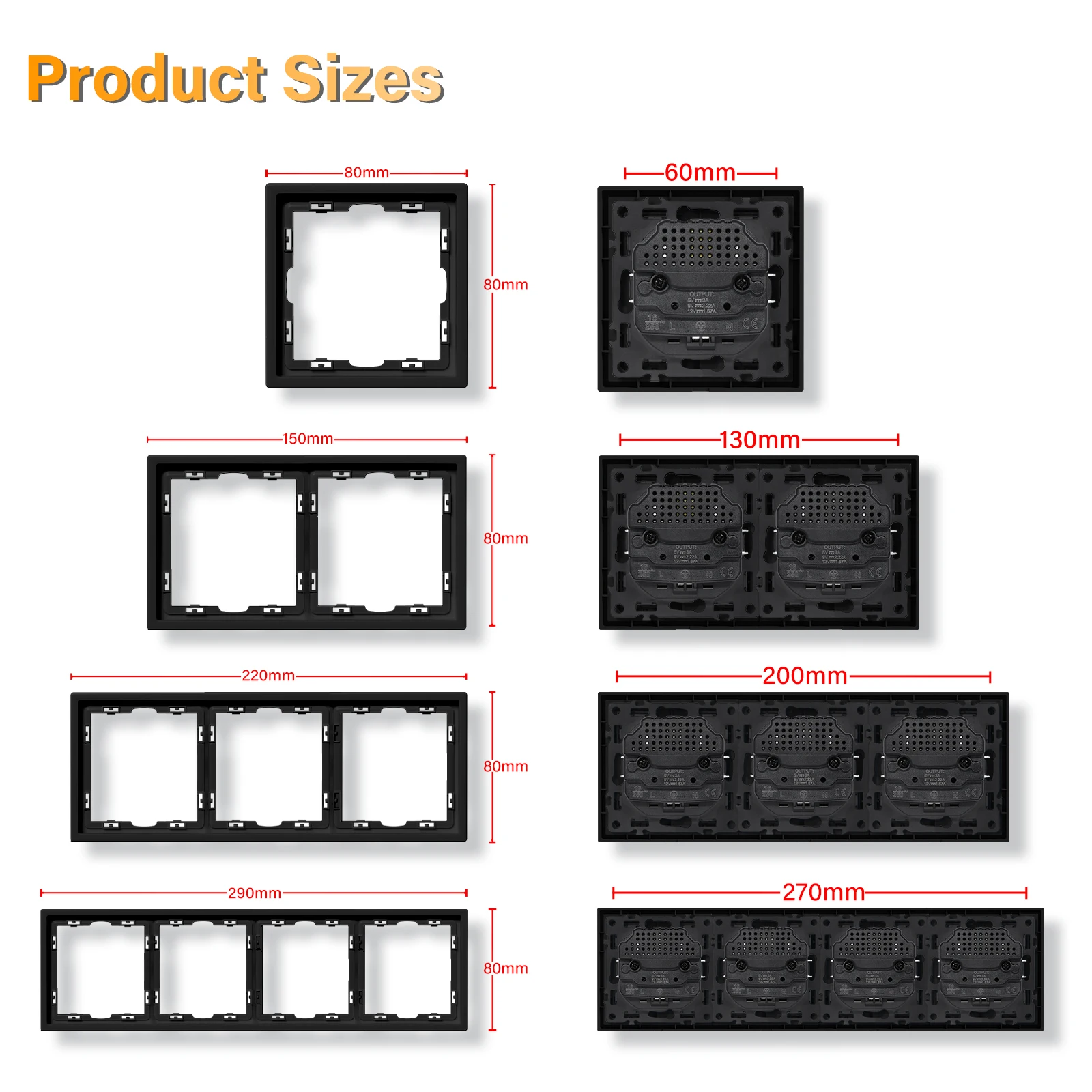

Frame Size:80/150/220*80*1mm
Switch & Socket Size:50*50*35mm
Material:Plastic Frame &Iron Plate& Plastic Switch Modules
Type:EU Standard
Rated Current: Switch :10A/ Socket :16A
Switch Working Voltage:110-240V AC
Socket Rated Voltage: 250V AC
USB Current:2.1A(10W) / 3.5A(20W) For Double
USB Working Voltage:5V
Capability allowance: -15%~+ 10%
Working temperature: -20°C~ +70″C
Relative humidity: 10% -93%(non-condensing)
Operating frequency: 50/60Hz
Wireless consumption: ≤0.02W
Certifications: CE, BS, RoHS, GCC, FC
Wall Box Type:Round& Square

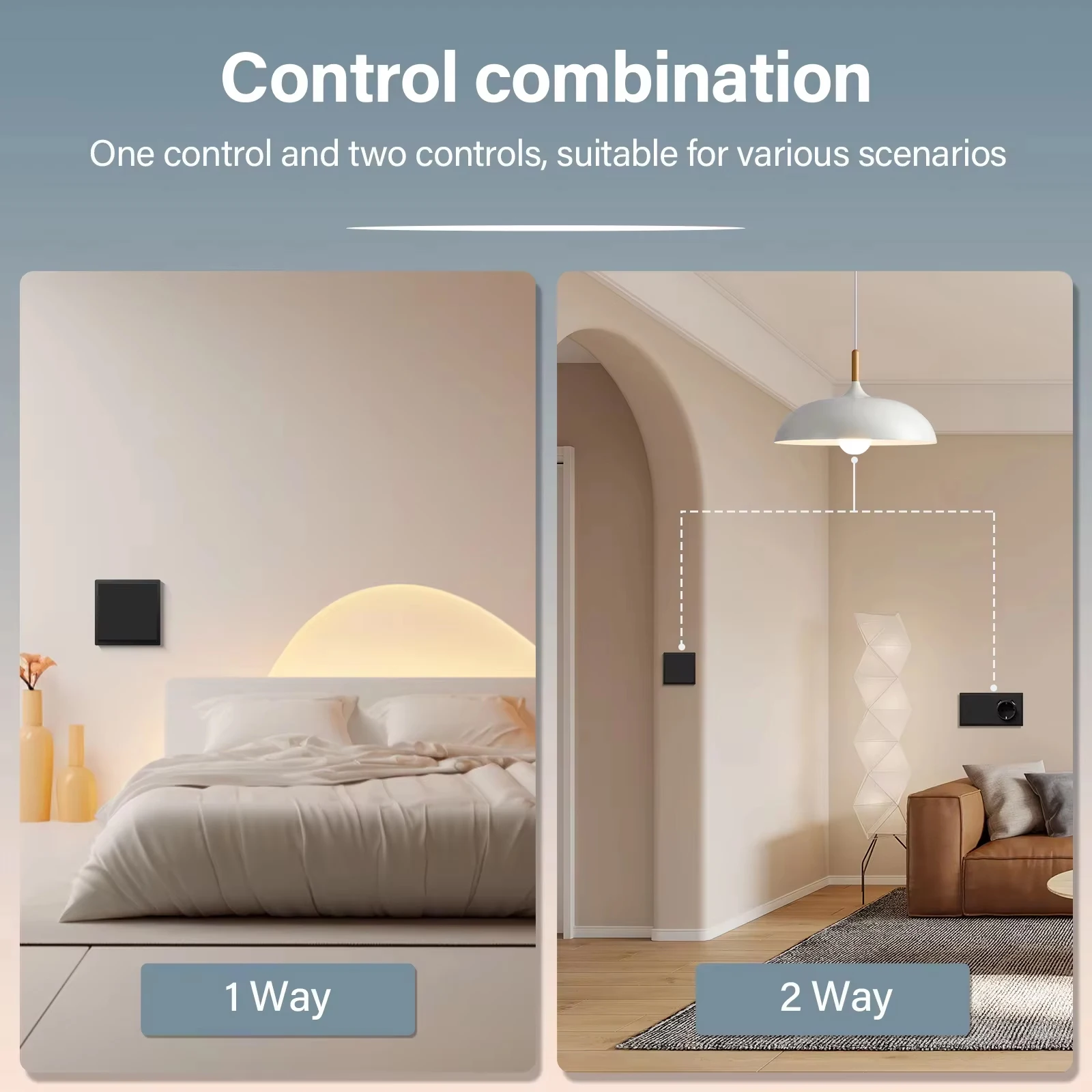

1Way:Control Light from only one position
Wall box Screw to Screw Size :60mm
Product Series :E-Series
Feature1:Switch &Socket with Claws

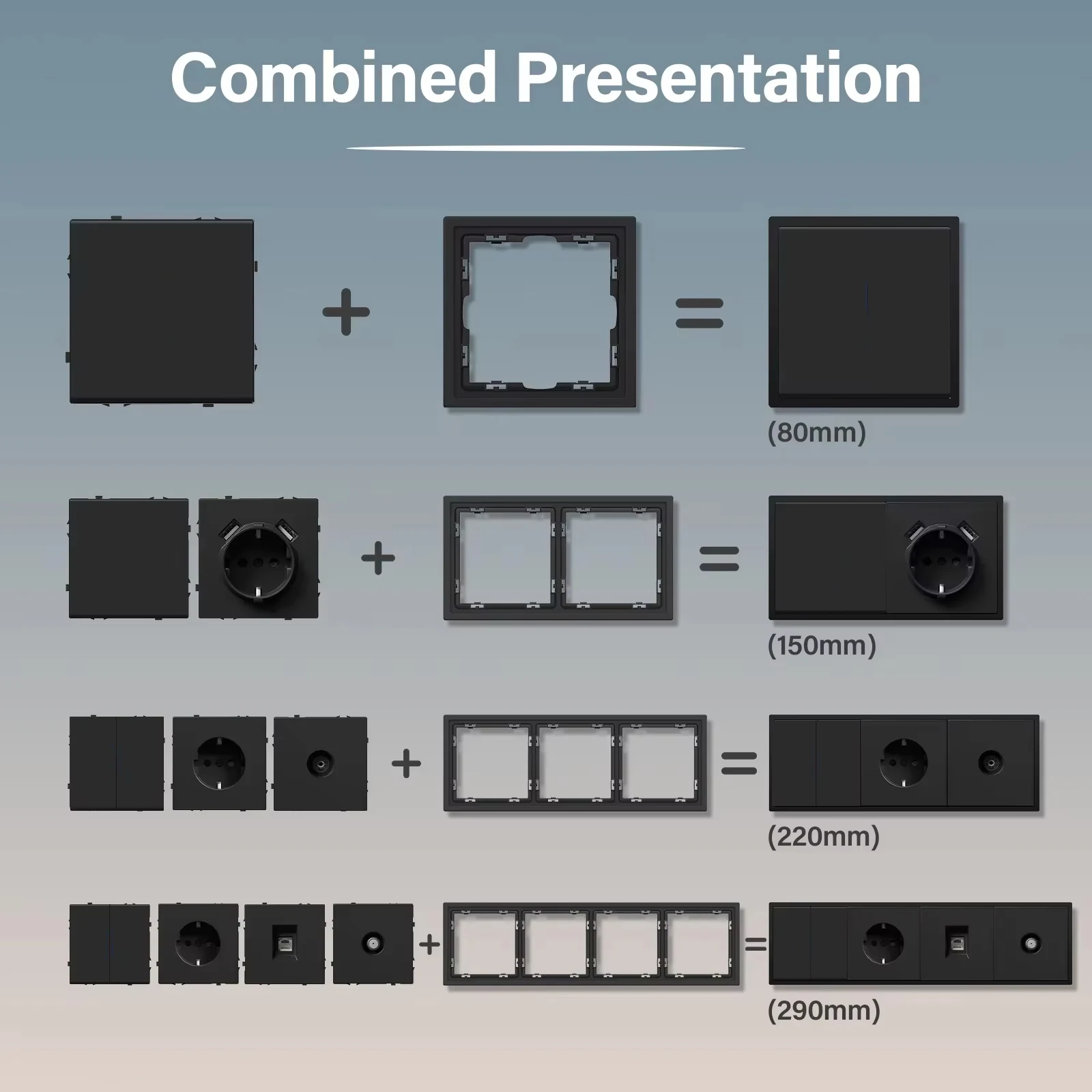

Feature2:Only E-Series Switches and Socket Panels are Compatible with Each Other
Wire:Switch No need Neutral Wire
Moduel shape:Round
Warranty:1Year
Note:

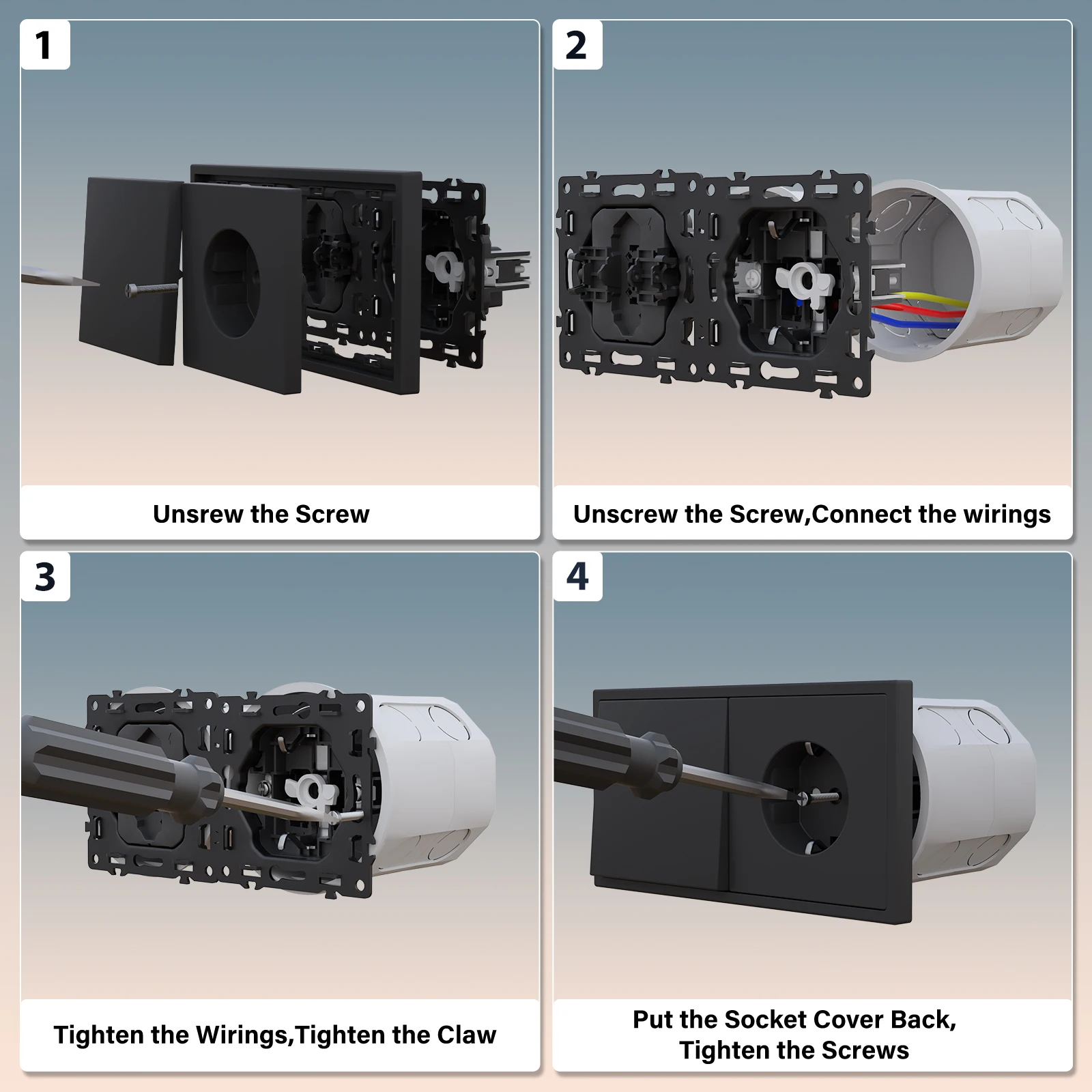

You have to cut off the power and during the installation.
