Max. Strom: 10A(switch) 16A(socket)
Load: 1000W/Gang
Wireless consumption: ≤0.2W
Max. Spannung: 90 ~ 250V
Relative Humidity:10% ~ 93%
Working Temperature: -30 ℃~+70℃
Zertifizierung: CE,RoHS
WiFi Frequency: IEEE802.11 b/g/n
WIFI Standard: Wifi 2.4GHz b/g/n
Frequency: 433.92 MHz
APP: Tuya/Smart Life
Voice Control: Google Home, Amazon Alexa
Wire: Need Neutral Wire
Back Light: ON-light Blue OFF-Weak Blue ( Can be canceled)
Module shape: Round

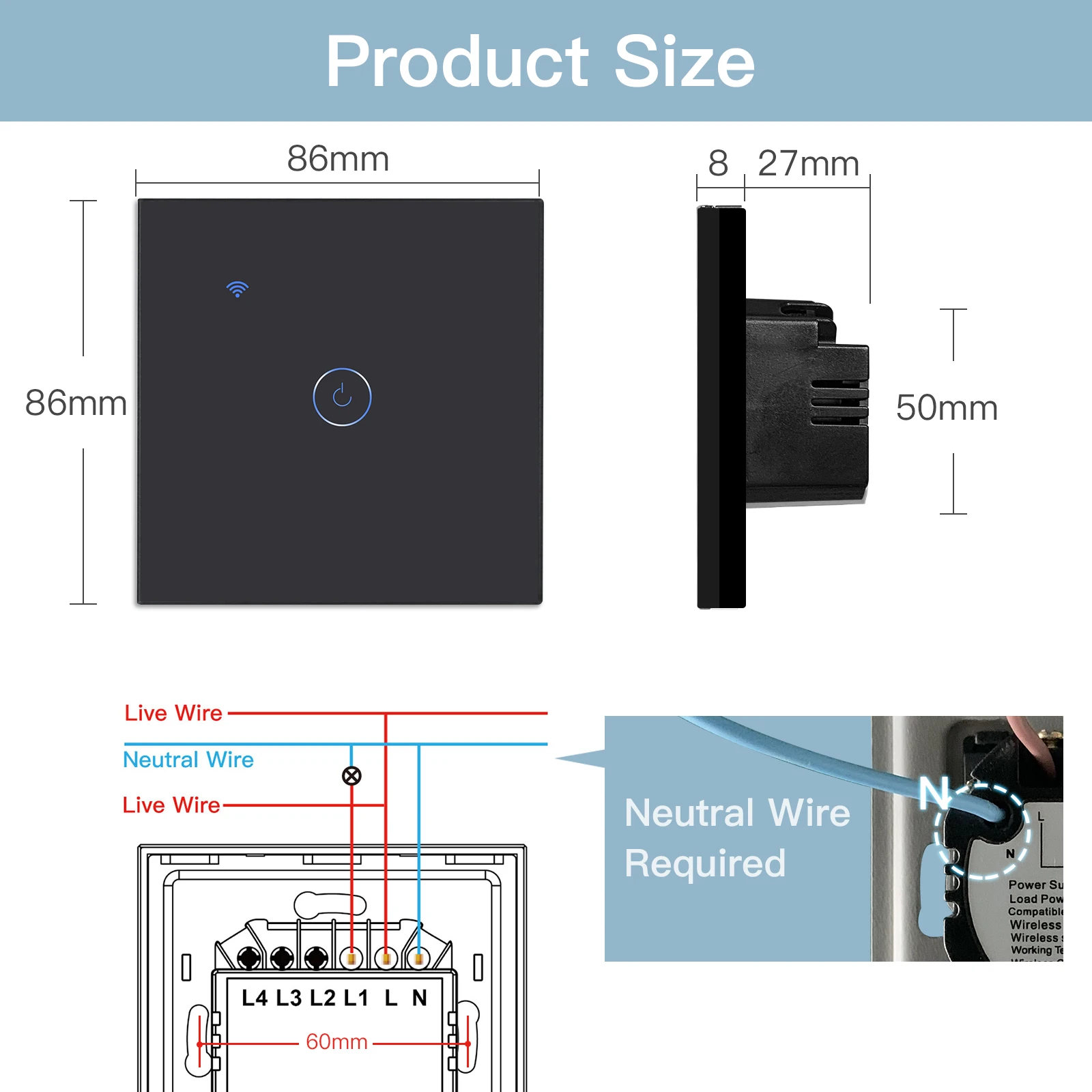

Switch Wall Box: Ø = 75mm,Width=71mm, Depth ≥ 35mm
FUNCTION:
Our Wifi Touch Switch Can Be Controlled Through Your Smartphone And All Support Google Home, Amazon Alexa, and Tuya App.
BACKLIGHT:
Bseed Wifi Touch Switches Have A Blue LED Light on the Front Panel Of Each Gang Which Ensure The Visibility In the Dark And is Easy To Find At Night.
BULBS:
The Smart Touch Switch is Compatible With LED Light Bulbs, Incandescent, Halogen, Fluorescent, and Compact Fluorescent Bulbs. The Wifi Smart Switch(required A Neutral Wire To Install).
INSTALLATION:
Connect 3 Wires to Install The Wifi Wall Touch Switch In Your Wall Mounted Box As Bellow:
l The Brown Or Red (Live) Wire Goes Into a Brass Screw L Or The Hole In The Back Of The Device.
l The Blue Or Black (Neutral) Wire Goes Into the Brass Skew N Or The Hole N In The Back Of The Device. The Panel Can Be Reassembled Easily For The Change Of Unit Part If Needed (Neutral Wire Required).
APP INSTALLATION:
Download The Tuya Or Smart Life App To Your Smartphone Or Tablet. The App Can Be Downloaded From Apple App Store or Google Play, Then Connect Your App With Amazon Alexa Or Google Home Which Enable You To Voice Control Your Lights And Appliances.
NOTE1:
Always turn off the main power during installation until the panel installation is complete, and then turn it on. If you test the switch by touching the directly (without the cover panel), turn it off for 5 minutes, place it on the control panel, and use it.
A: Yes, it does need a neutral wire to install.
A: Sorry, Our item can’t work with them at present.
A: Yes, it can work with them.
A: Yes, we offer a 2/3/4-way wifi touch switch, it functions stably. But you must at least buy 2/3/4 pieces of 2/3/4-way wifi switches. ( APP uses multi-control association function)
A: First, please check your wiring. Our wiring diagram is in the details. Then check whether the iron plate is installed correctly. Finally, check whether your switch matches. If there is no problem, please contact us, and send you the video.
A: Please check whether the switch or socket needs to be updated. If it is the latest version, please contact us and provide a video.
A: The blue backlight will be on when the wiring is successful. Allowing you to notice Our touch switch clearly in the dark.
Q: Does our switches can install vertically or Horizontally for 157mm/228mm glass panels？
A: Yes, we can install it in different ways, but you will see the small holes. (The small holes used to open the glass cover)
