BSEED 1/2/3/4Gang Wifi Smart Switches Light/Curtain /Dimmer Click Buttons Type-c USB Sockets DIY Function Parts EU Glass Frames
Notice:
☆The Switch and Socket are required to connect Neutral cable, Type-c USB charging ports are not smart , and Wifi Socket without Power monitor, Wifi socket with USB C ports has power monitor function.

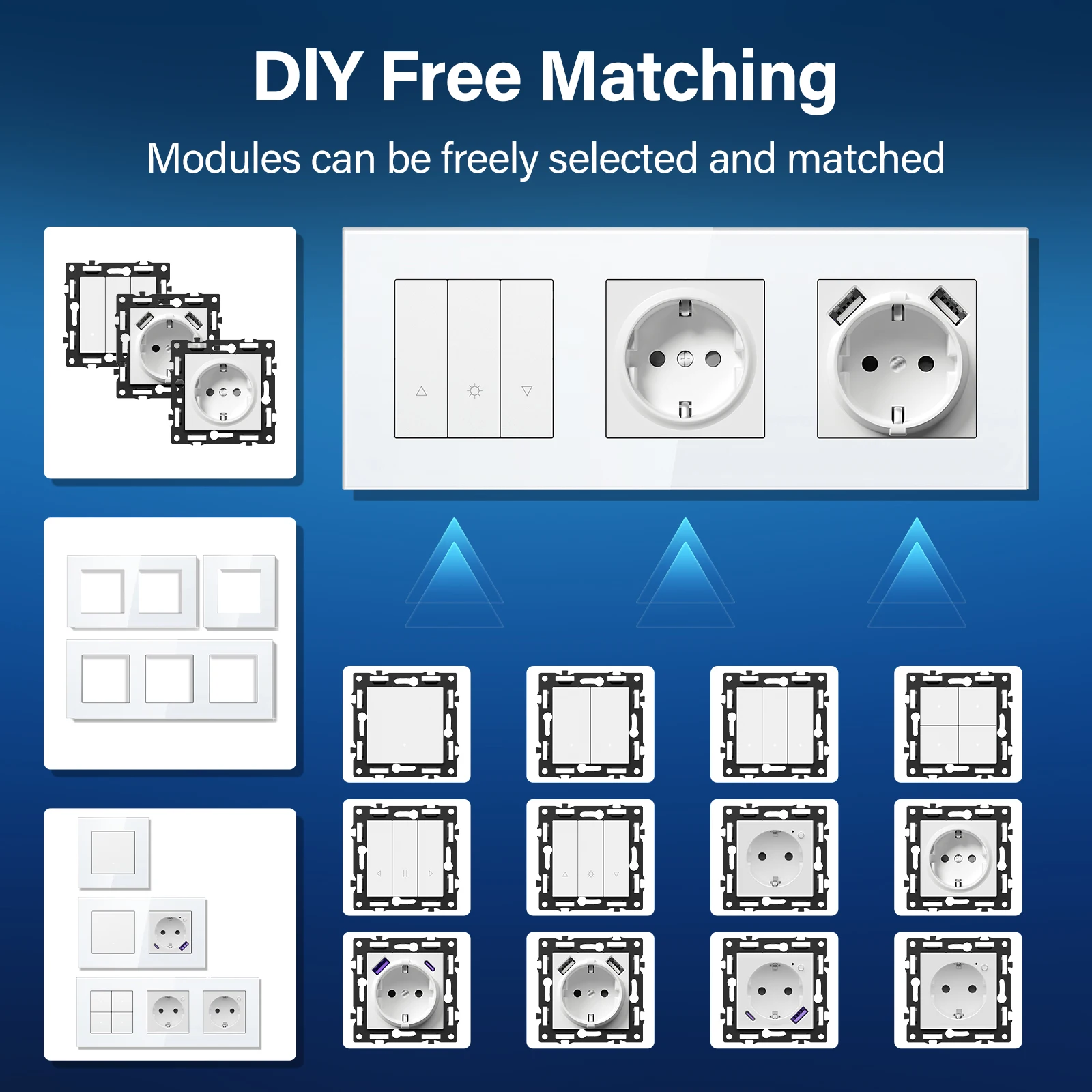

☆They are just DIY Spare Parts ,Switch without glass frame, glass doesn’t contain switch or socket.
Product Introduction:
Size:86/157/228/299/370*86*4mm
Max. Strom:Switch:10A / Socket:16A
Color:White Series(we also have black and gray Series )
Material:Glass Panel & Iron Plate & Plastic Switch Module
Load: 1000W/Gang
Wireless consumption: ≤0.2W
Switch Max. Spannung: 100-240V(AC)
Socket Max. Spannung: 250V(AC)
Relative Humidity:10% ~ 93%
Working Temperature: -30 ℃~+70℃
Certification:CE, BS, RoHS, GCC, FC
WiFi Frequency: IEEE802.11 b/g/n
WIFI Standard: Wifi 2.4GHz b/g/n
APP: Tuya/Smart Life/Yandex
Voice Control: Google Home, Amazon Alexa/Alice
Wiring : Need Neutral Wire
Back Light: ON-light White OFF-Weak Yellow
Moduel Shape:Round
Wall Box Type:EU Standard 60mm
Model:E-series
Feature:The Switch and Socket parts couldn’t work with BSEED other panel or frames.

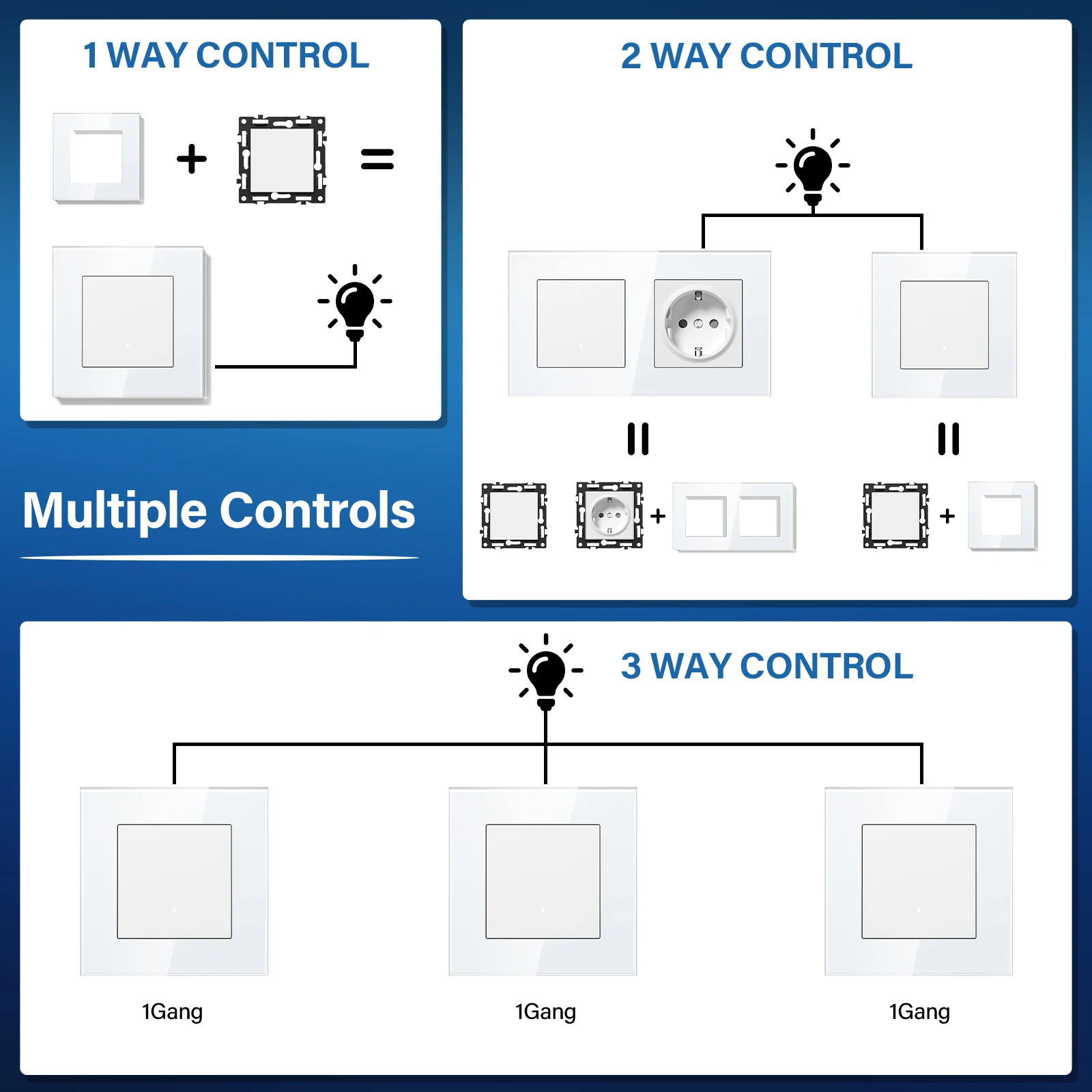

Multi-control association: the same light can be controlled from 1/2/3/4 different places with same type of switches.
Wifi Socket :Without Power Monitor Function.
Wifi Socket with USB C: With Power Monitor Function
Warranty:1Year
Note:
You have to cut off the power and during the installation.
FAQ:
Q: Does your Wifi touch switch need a neutral wire to install?
A:Yes, both switch and socket are all required to install neutral wire .
Q: Does the Type-c and USB Charging Ports are also Smart?
A:No,they’re just simple, they don’t work with wifi .
Q: Does the switch come with the glass frame?
A:No,they’re just spare parts , the switch doesn’t contain the glass frame ,if you need a complete product ,please order the function parts and frame  together .
Q: Does your Wifi touch light switch can work with Ewelink or Home Kit?
A:Sorry, Our item can’twork with them at present.
Q: Does your Wifi light switch can work with Smart Life/Tuya/Google/Alexa or Yandex Alice?
A:Yes, it can work with them.
Q: Do you offer a 2-way or 3-way Wifi touch light switch?
A:Yes, this type of wifi switch can work with each other to control the same light, you must at least buy 2 pieces 2-way wifi switches. ( APP use multi-control association function),please be aware that the wifi swtich couldn’t work with simple switich .
Q: Does your Wifi touch light switch have a backlight?
A:The backlight will be on when the wiring is successful. Allowing you to notice Our touch switch clearly in the dark.and it can be cancelled in the app at anytime.

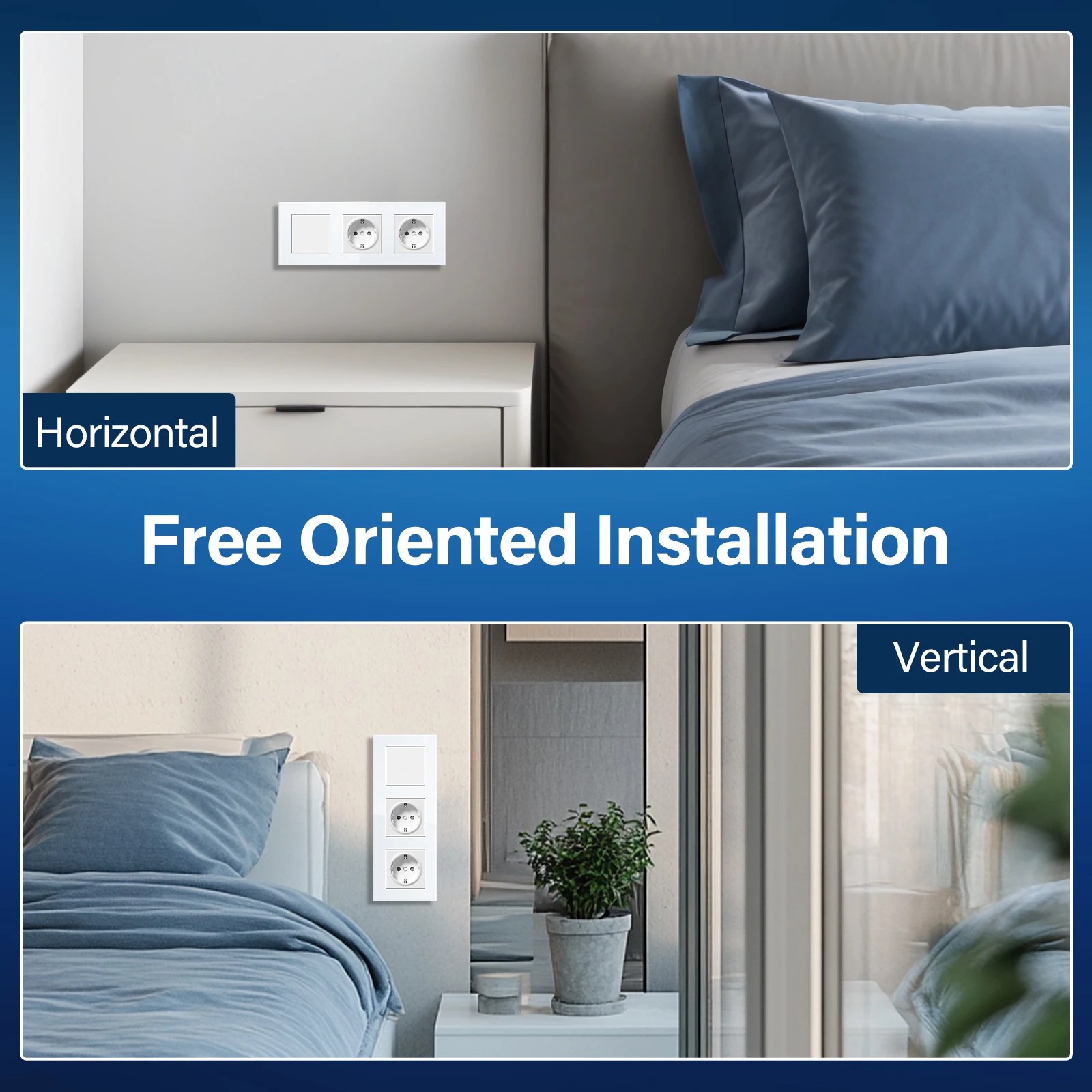

Q: Does our switches can install by vertical or Horizontal for 157mm/228mm glass panel?
A:Yes, we can install it in different ways, but you will see the small holes. (The small holes used to open the glass cover)
Q: Can I install the switch into other frame?
A:Because the E-series function keys and the iron middle plate are integrated, it is not suitable for useing with other BSEED frames or Panels.
