Price range: $11.99 through $13.95
Overview
| Weight | 5 lbs |
|---|---|
| Dimensions | 5 in |
| Brand Name |
NONE |
| Origin |
Mainland China |
| Current |
3A |
| Item Type |
SWITCHES |
| Warranty |
1 year |
| Switch Type |
Push Button Switch |
| Certification |
ce |
| Model Number |
12mm/16mm/19mm/22mm |
| Material |
Oxidized aluminum black |
| Lamp color |
Red Green Yellow Blue White |
| Using |
Car PC machine Device buttons |
| Level |
IP65 |
| Rating switch |
3A / 250VAC |
| Opening diameter |
12mm/16mm/19mm/22mm |
| Emitting Type |
Ring LED |
| Lamp voltage |
3V/6V/12V/24V/36V/110V/220V/other |
| Customization |
Yes , please leave a message to us |
Very important:Â Connectors are purchased separately

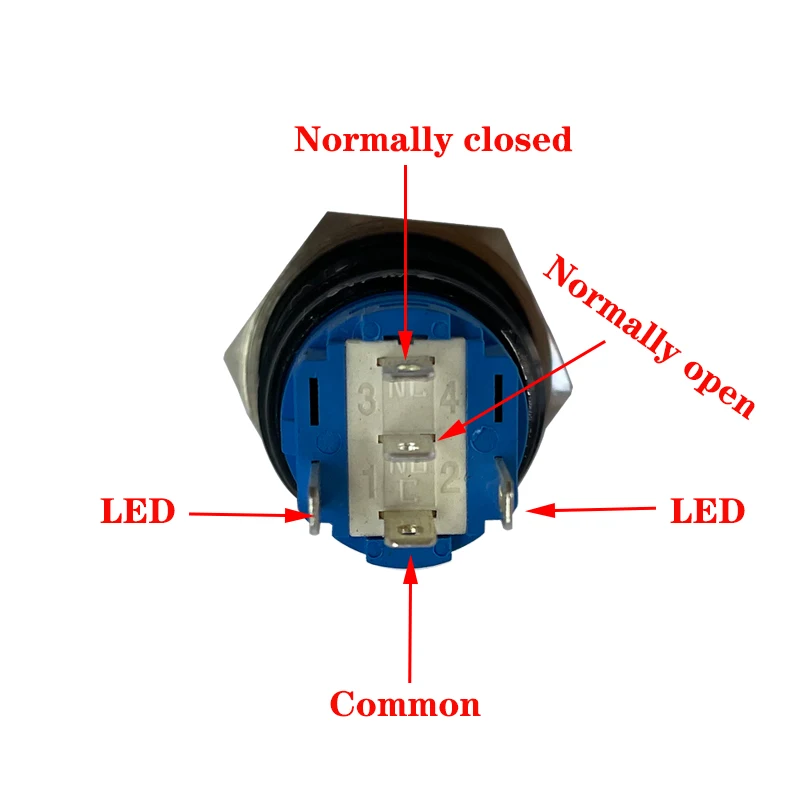

1.What does the signal “NC” and “NO” means?
“A” “+”: positive pole of the led “LED” ” – “: negative pole of the led ” NC “: Normal Close ” NO “: Normal Open ” C ” : Common
2.How to connect?
1.Connect ” NO ” and ” C ” : The circuit is alway open unless press the button. 2.Connect ” NC ” and ” C ” : The circuit is alway close unless press the button.
3.Will I get a seal ring for each button?
Yes,each button will have a free seal ring
