Beok Tuya Smart Home WIFI Floor Thermostat with Alexa Yandex Google Control Warm Underfloor Heating Temperature Regulator 220V

TIPS

1.TOL47-EP(for electric floor 16A) is used control Heating Cable/Heating Mat/Heating Flim etc. electric floor/underfloor heating system.

TOL47-WP(water floor 3A) is used control Valves/Normally Closed Actuators/Normally Opend Actuators etc. water floor/underfloor heating system.

TOL47-WPB(Boiler Heating 3A) is used control the Boilers/Heaters/Heating pump .etc. that are connected via “Dry Contact“

2.The package of TOL47-WP/TOL47-WPB don’t have

external floor sensor
!!!!!

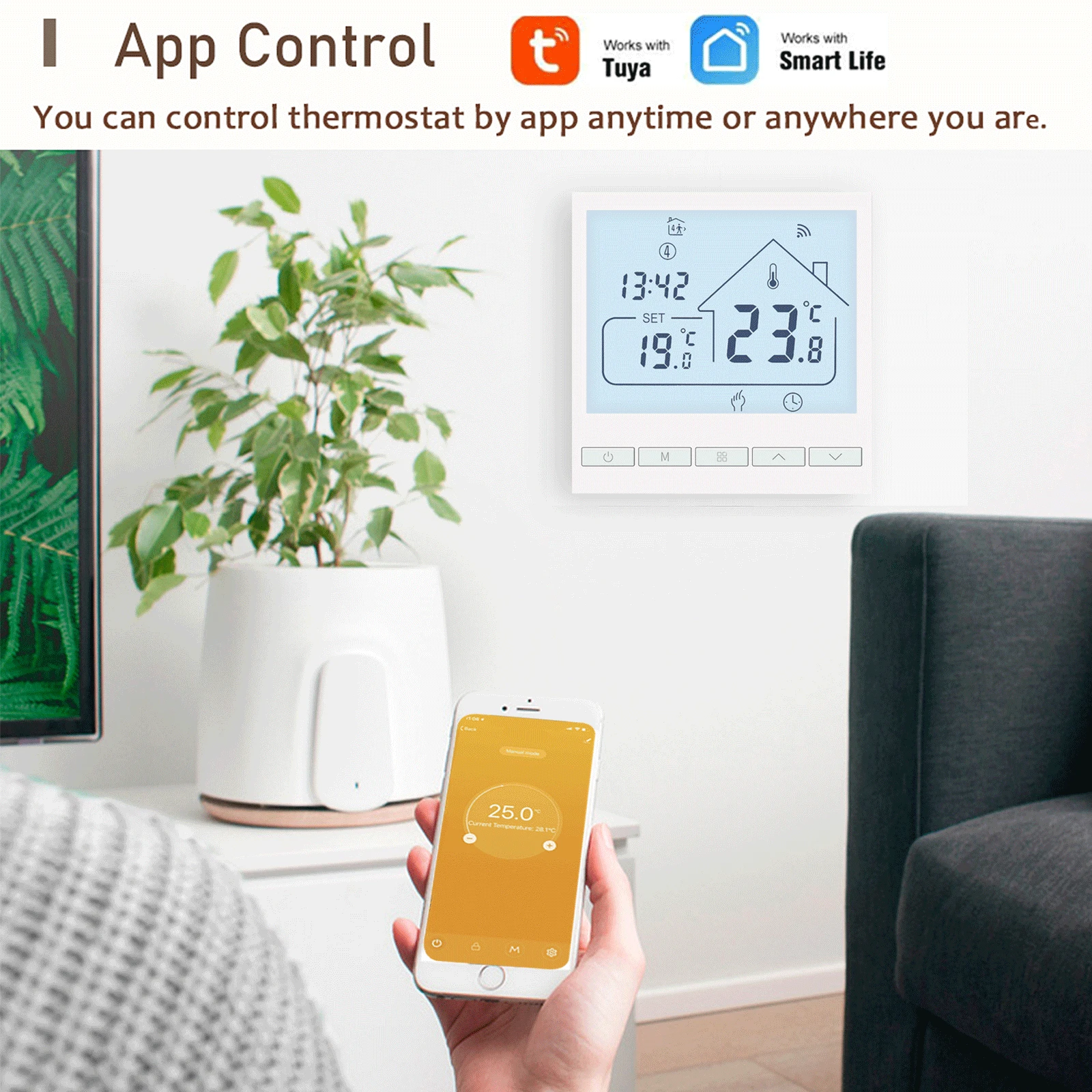

3.“Wifi” thermostat supports mobile phone remote control and voice control functions;

TOL47-WIFI-WPB has updated wiring terminals, but the functionality remains the same as before. The new and old models will be shipped randomly.

Product Summary

TOL47 Intelligent digital temperature controller is a floor heating system suitable for room temperature control and household temperature control.
It controls the operating state of the floor heating equipment by comparing the ambient temperature with the set temperature, which improves comfort and achieves energy saving.
This digital temperature controller adopts microcomputer control technology and is equipped with full-screen display and press buttons, which is elegant in design and easy to use.
The thermostat has manual automatic, programmable and state memory functions.

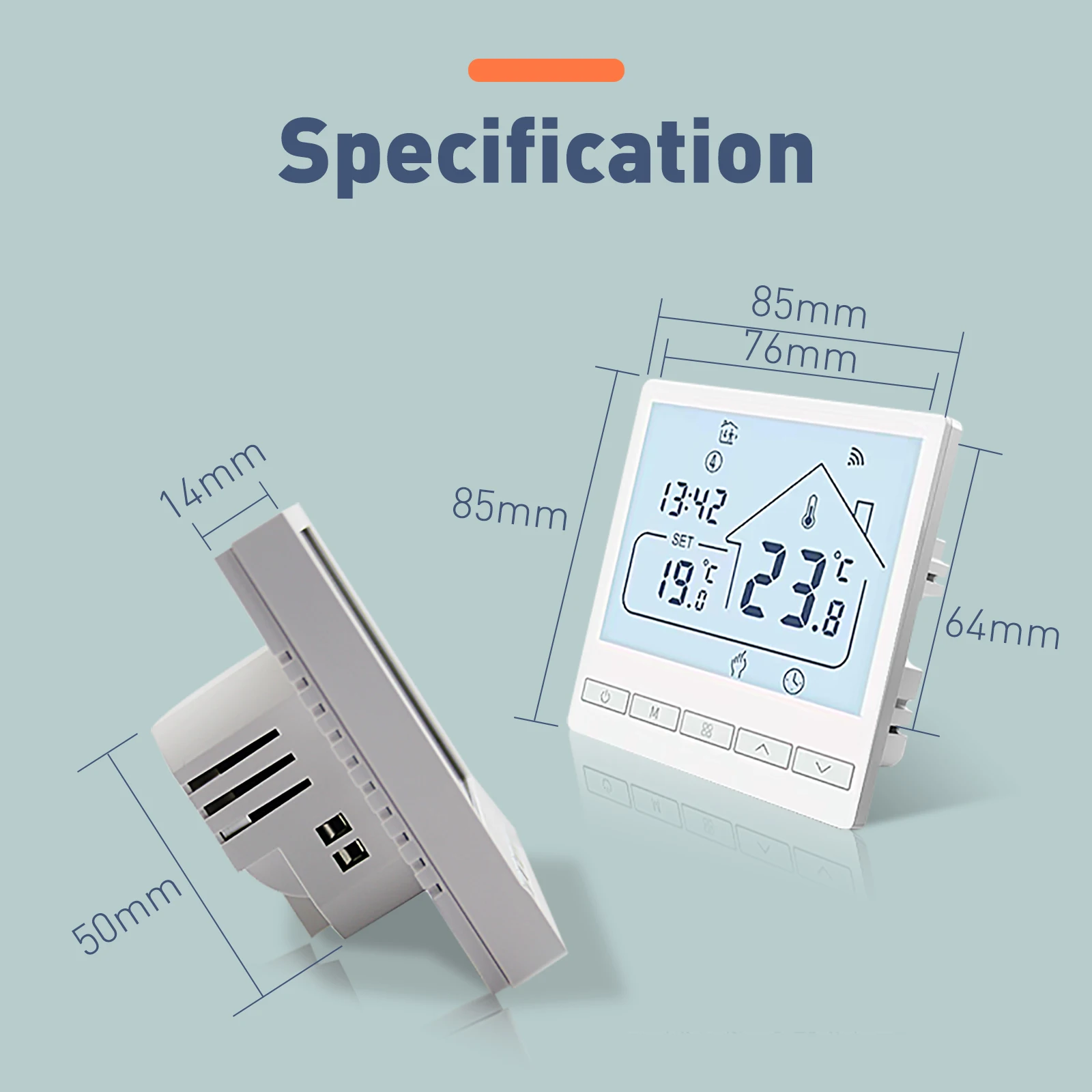

Technical Parameter

Power Supply: AC 95-240V; 50-60Hz
Current Load: ≤16A( Electric heating),≤3A(water heating)
Power Consumption: <3W
Warranty time : 2 years
External Material: PC+ABS (flame retardant)
Sensing Element: NTC 10K3950
Floor Set Temp. Range: 5-95 Celsius
Accuracy: ±1 ℃(No-WIFI); ±0.5℃(WIFI);
Storage Temp.: -5~55Celsius
Certificate: CE/ROHS
Support Phone System: iOS System/Android System
APP:Tuya Smart/Smart Life
Voice Control:Yandex Alice/Alexa/Google Home

Main Functions

1. WIFI for Andriod & Apple IOS
2. Large screen display and press button
3. Power-off memory function
4. Real-time data save function

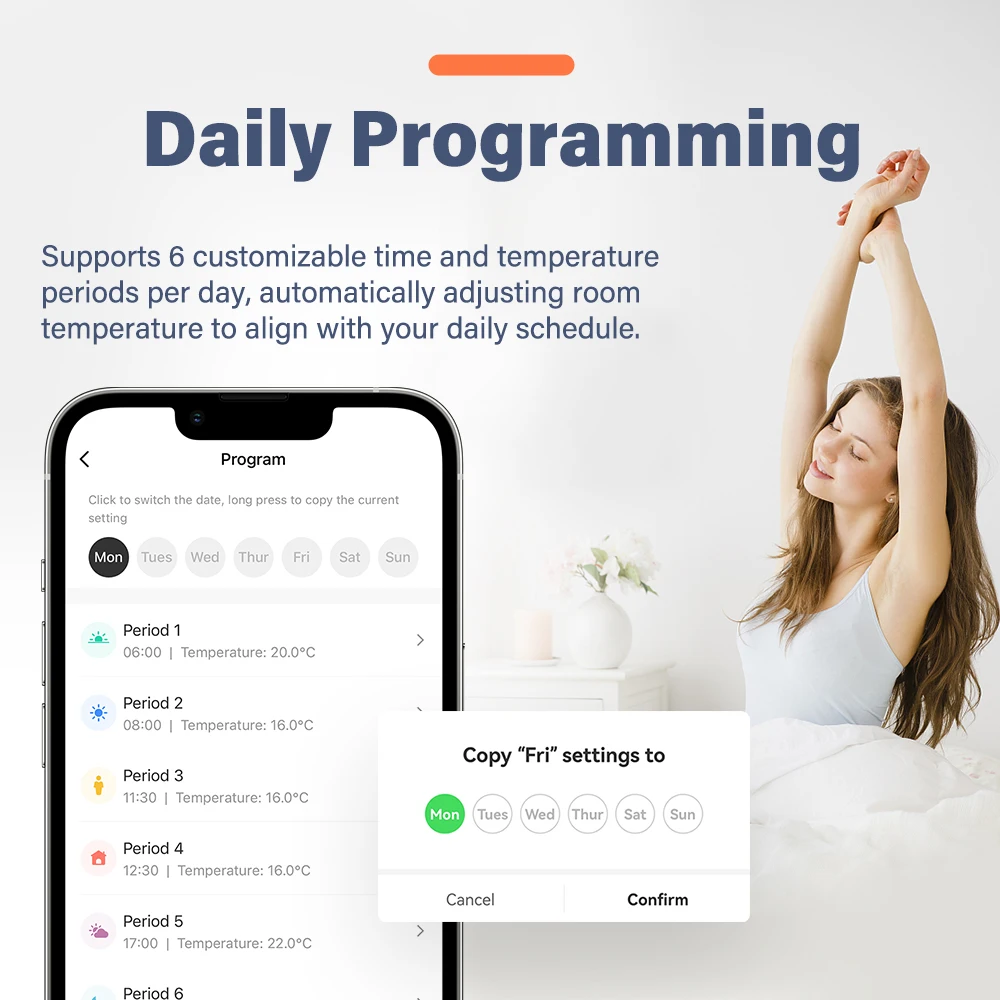

5. 5+2 or 6+1or 7days programmable; 6 time periods on weekdays and 2 time periods on weekends

Some models randomly send daily programming inventory.
6. Anti-freezing function
7. 3 sensor modes can be setting
8. Selectable 60mm Round European hidden box.
9. With child lock function
10. Output delay time setting
11. Screen brightness can be adjusted
12. Tuya Smart/Smart Life WIFI Phone Remote Control
13. Alexa/Google Home Vioice Control

Package List

Thermostat : 1 piece
User Manual : 1 piece
Screws: 2 pieces
External sensor: 1 pieces( only TOL47-EP include this senseor )
