Auto Accessories OBD2 Scanner T06 Check Engine System Code Reader Multi-language Support Car Diagnostic Tool Battery Tester

Functions:

• Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

• Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors

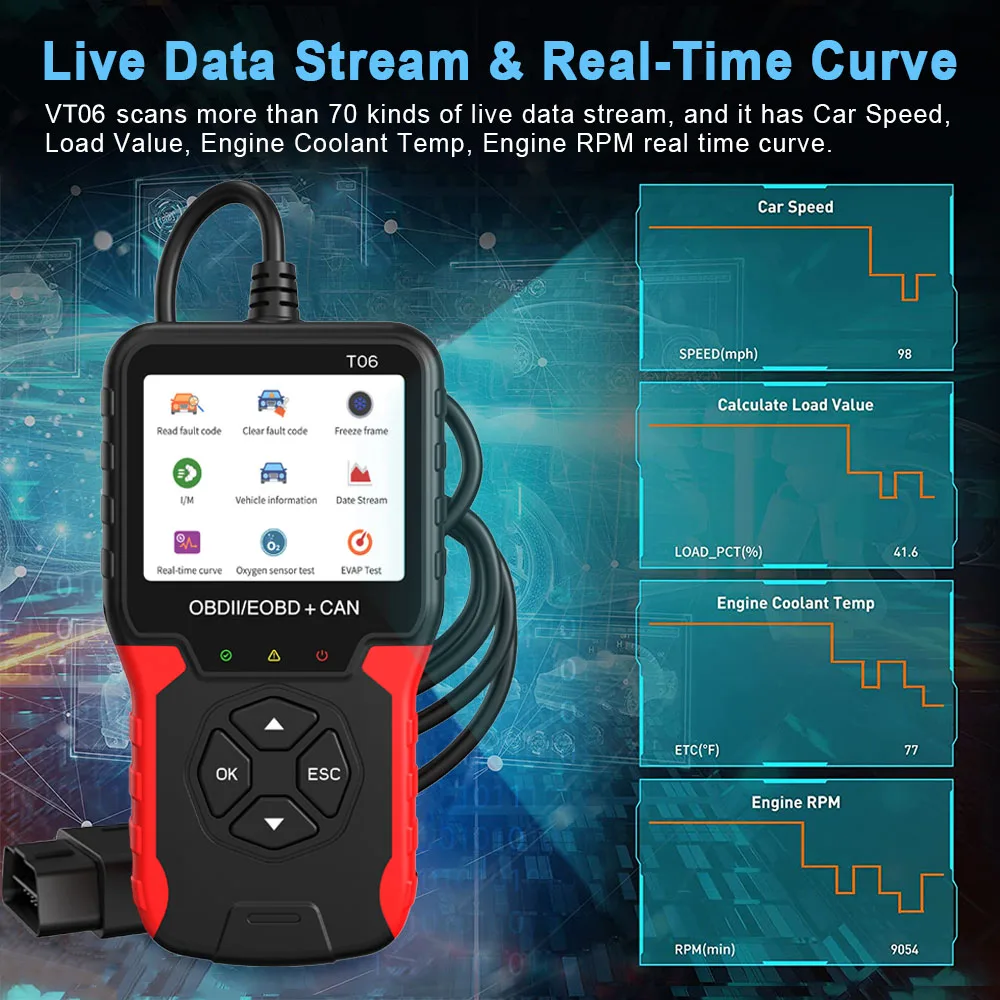

• Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data

• I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing

• View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs

• Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

• 200+ Data Stream

• 36000+ DTC Look-up

• Real Time Curve

• O2 Sensor Test

• EVAP Test

• Battery voltage reading

• Fault code query

• 8 languages supported

Specification:

• Working Temperature: -20℃~65℃

• Storage Temperature: -30℃~80℃

• Working Voltage: 9V-16V

• Working current: about 50mA

• Supported Languages: English, German, French, Spanish, Italian, Russian, Dutch, Chinese.

• Green light: support the vehicle detection

• Yellow light: it is read the vehicle is faulty

• Red light: the product is energized normally.

Package Included:

• 1 x T06 OBD2 Scanner

• 1 x English Manual
