ATTINY88 micro development board 16Mhz /Digispark ATTINY85 Upgraded /NANO V3.0 ATmega328 Extended Compatible for Arduino

$13.95

17 in stock

17 in stock

Specification

Overview

Weight 6 lbs
Brand Name

Estardyn

Origin

Mainland China

High-concerned chemical

None

Condition

New

Type

Voltage Regulator

Supply Voltage

3-5V

Dissipation Power

1

is_customized

Yes

Operating Temperature

-40-+85

Application

Computer

Package

SMD

Choice

yes

Description

BBS: //forum.mhetlive.com/topic/47/mh-et-live-tiny8-16-0mhz

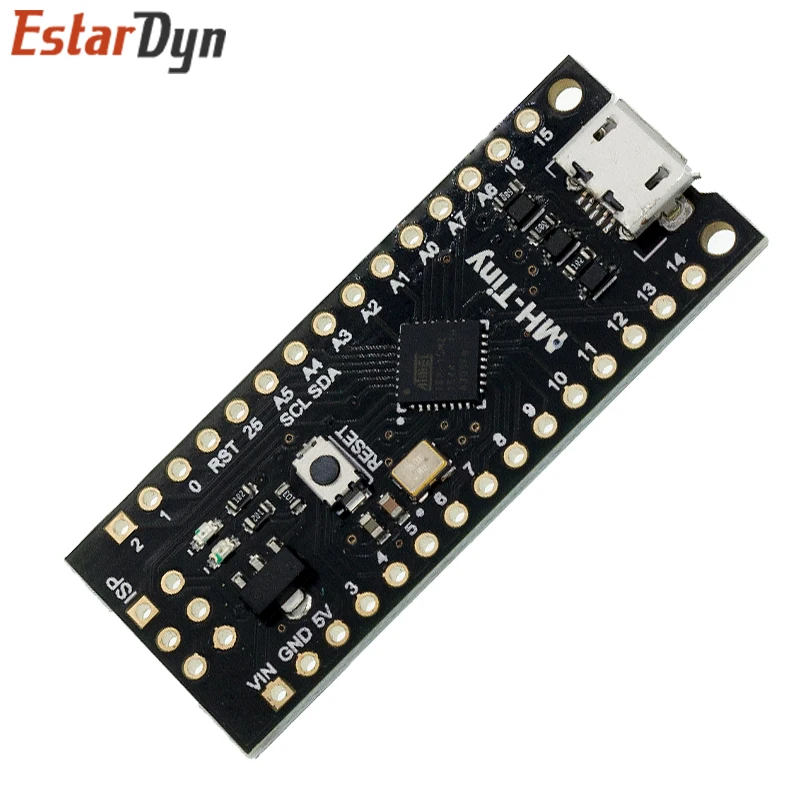

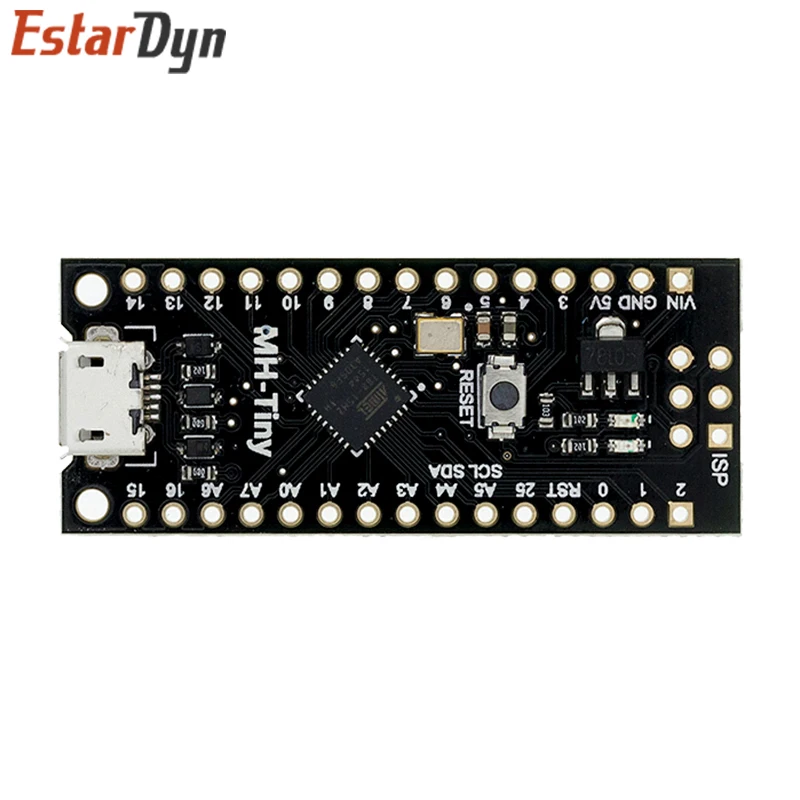

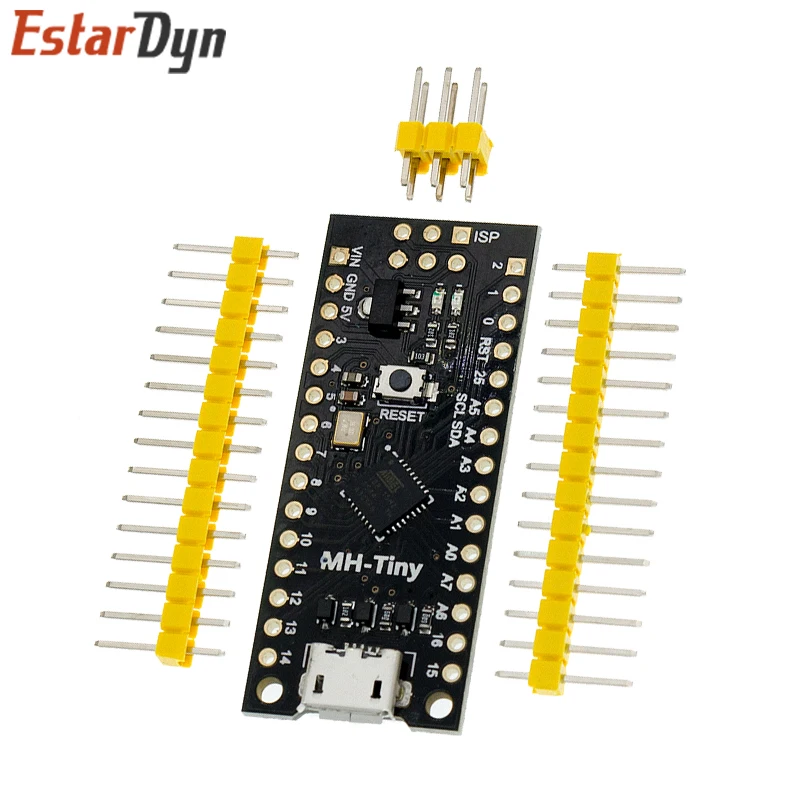

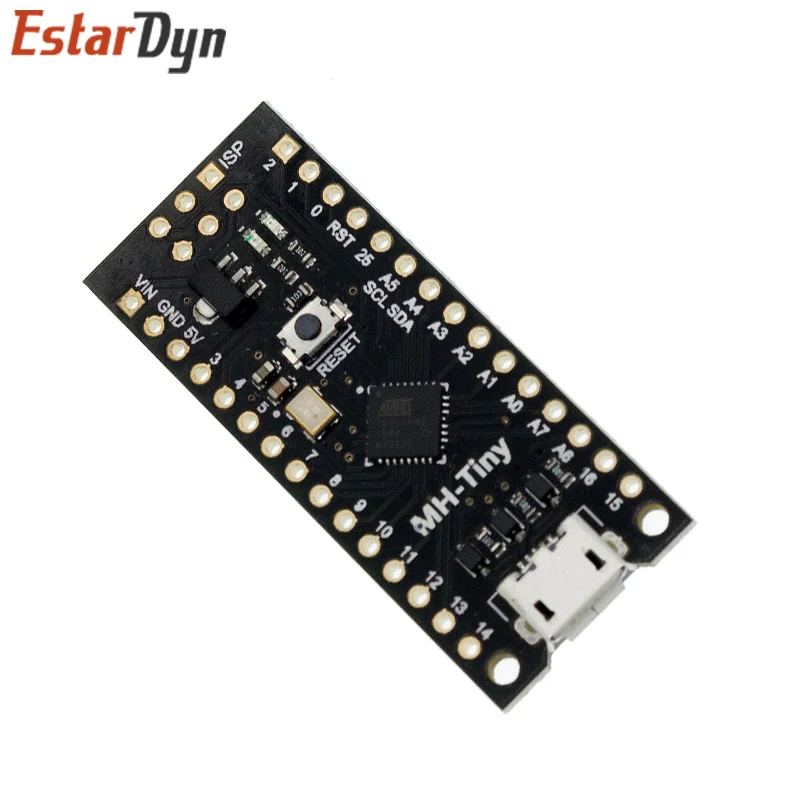

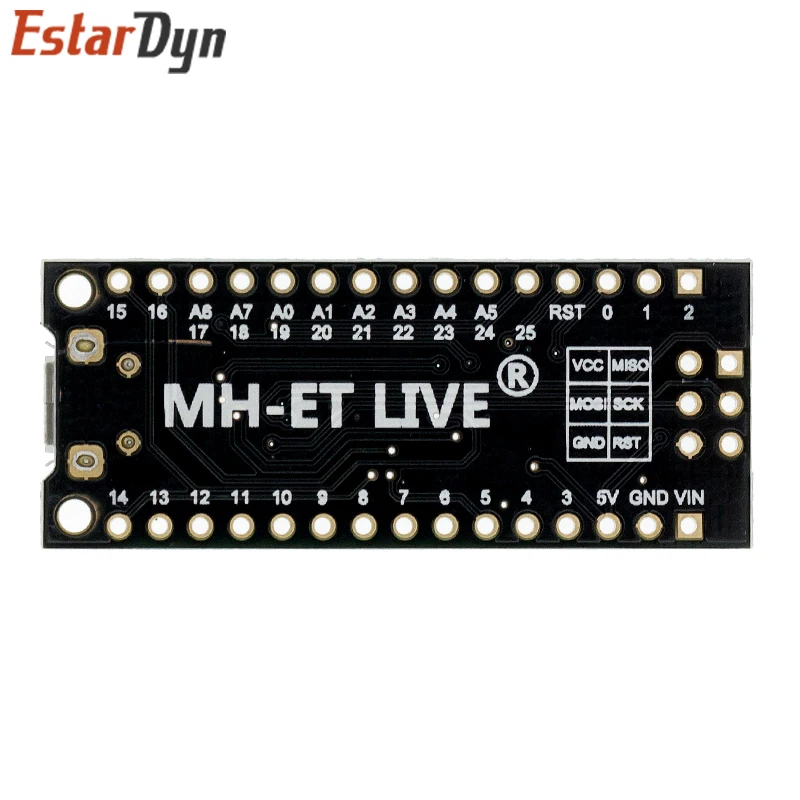

The MH-ET LIVE Tiny88(16.0Mhz) based microcontroller development board similar  to the Arduino line, only cheaper, smaller, and a bit less powerful. With the ability to use the familiar  Arduino IDE the MH-ET LIVE Tiny88(16.0Mhz) is a great board to jump into electronics, or perfect for when an other board is too big or too much.The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled except for the headersincluded and easy to solder them by yourself.

Specs:

 Support for the Arduino IDE 1.0+ (OSX/Win/Linux)

1. Power via USB or External Source – 5v or 7-35v (12v or less recommended,

automatic selection)

2. On-board 500ma 5V Regulator

3. Built-in USB

4.  26 I/O Pins (2 are used for USB only if your program actively communicates over  USB, otherwise you can use all 6 even if you are programming via USB)

5. 8k Flash Memory (about 6k after bootloader)

6. I2C and SPI

7. 26-PWM (26 pins with Software PWM,only two(D9,D10) with hardware PWM )

8.  ADC on 8 pins

9.  Power LED and Test/Status LED

10. Size(mm):44.5×18.3×3
