9IMOD RC Digatal Servo 11KG Coreless Metal Gear Servo 4.8-8.4V for RC Car RC Helicopter DIY Accessories

9IMOD RC Digatal Servo 11KG Coreless Metal Gear Servo 4.8-8.4V for 1/8 1/10 1/12 RC Car RC Helicopter DIY Accessories

Features:

Coreless metal gear high torque digital micro servo, high sensitivity, stable and low-noise.

High precise metal gear, with better accuracy and longer service life.

Operating at a voltage range of 4.8V to 8.4V, this rc digital servo delivers impressive performance.

Description:

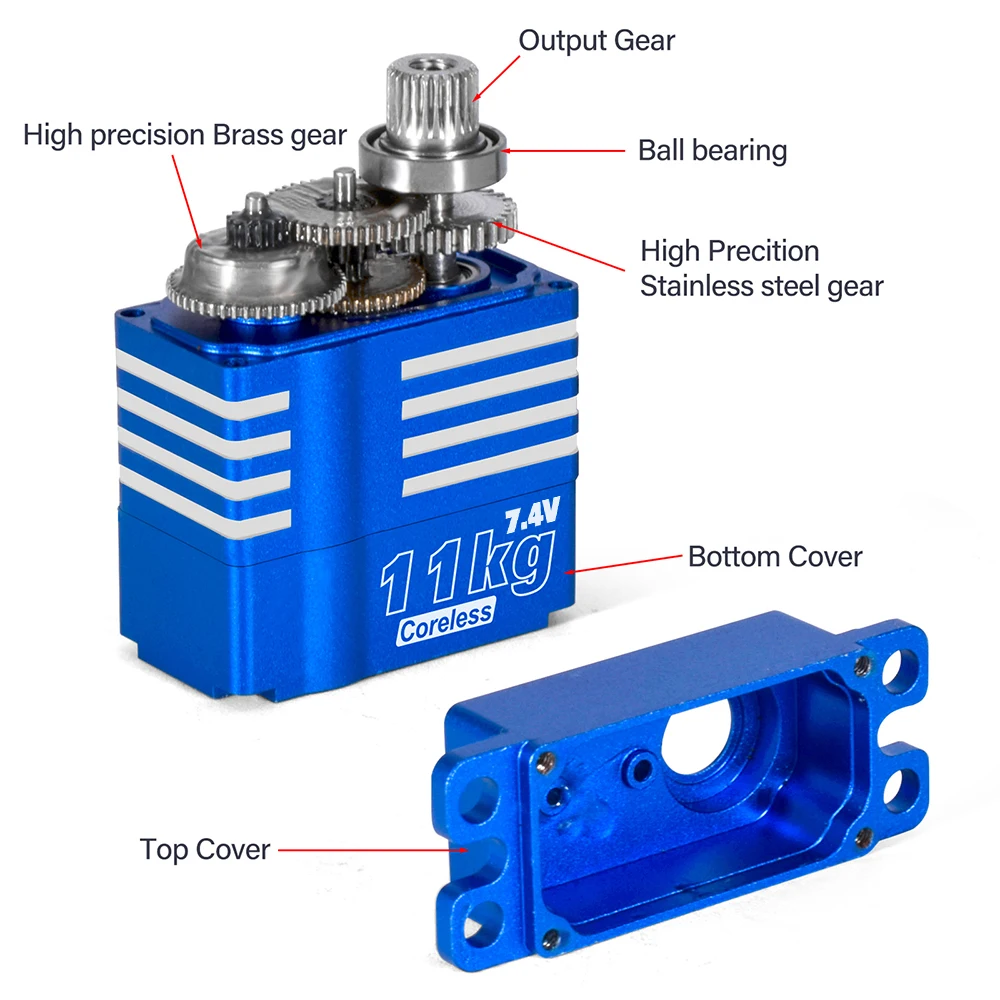

11KG Coreless Metal Gear Servo,Full Aluminum Case and Stainless Steel Gear ball bearings Design,the servo work stable, low noise, Its lightweight design, makes it ideal for various RC applications.

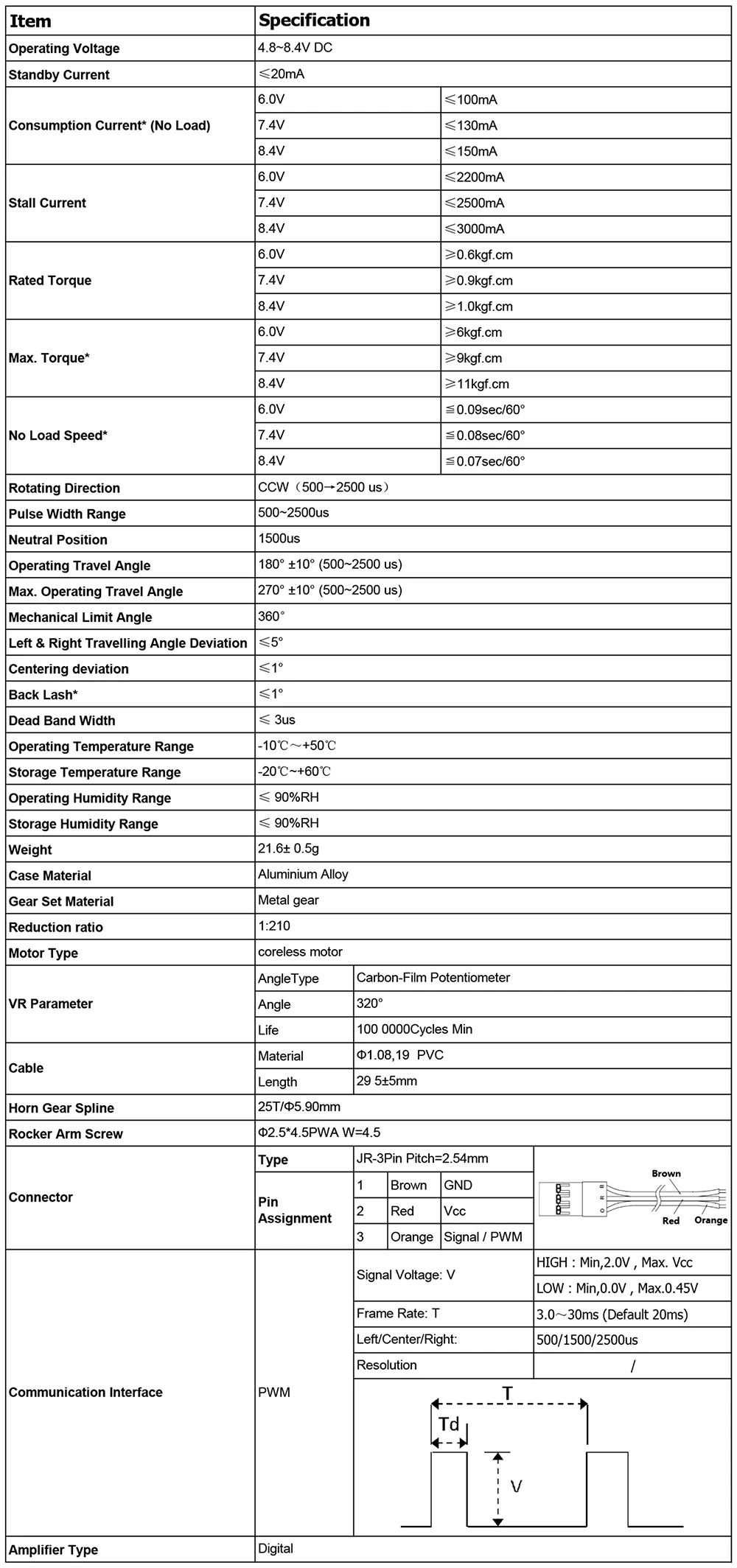

Specifications:

Brand: 9IMOD

Operating Voltage: 4.8~8.4V DC

Standby Current: ≤20mA

Rotating Direction: CCW(500→2500 us)

Pulse Width Range: 500~2500us

Neutral Position: 1500us

Operating Travel Angle: 180° ±10° (500~2500 us)

Max. Operating Travel Angle: 270° ±10° (500~2500 us)

Mechanical Limit Angle: 360°

Left & Right Travelling Angle Deviation: ≤  5°

Centering deviation: ≤ 1 °

Dead Band Width: ≤ 3us

Operating Temperature Range: -10℃～+50℃

Storage Temperature Range: -20℃~+60℃

Communication Interface: PWM

Amplifier Type: Digital

Case Material: Aluminium Alloy

Gear Set Material: Metal gear

Motor Type: Coreless

Pulse width signal: 500-2500 ms: 180 degrees
Remote control aerial template control: 900-2100 milliseconds: 120 degrees
Gun remote control: 1000-2000 ms: 90 degrees

Package included:

1 x Metal Gear Servo

1 x Accessory set

Note: Please select the servo according to your own remote control signal and the desired servo angle.
