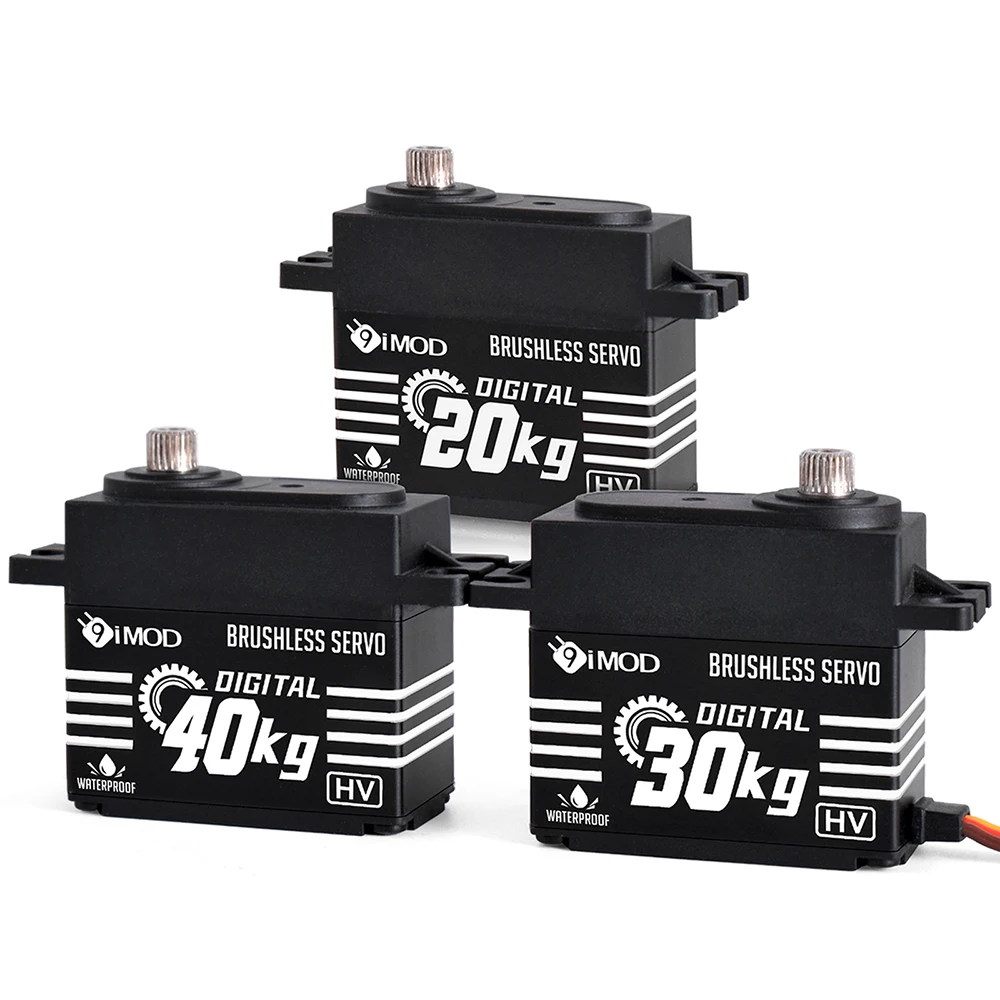

9imod Brushless Servo 20/30/40KG Aluminum Alloy Case Waterproof Digital Metal Gear Servo for 1/8 1/10 RC Crawler Car Boat DIY

9imod Brushless Servo 20KG 30KG 40KG Aluminum Alloy Case Waterproof Digital Metal Gear HV Servo for RC Car Truck Crawler Boat Robot DIY

Features:

1. 6.0V ~8.4V High voltage.High performance digital High Voltage Brushless

2. Waterproof performance: waterproof,Excellent linearity, precision control

3. Equipped with Metal Gears, Aluminum alloy case, Less Noise, light weight.Dual ball bearings

4. Widely Use Digital Servo:Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car/Robot /Boat and other remote control models

Description:

The 9imod BLS-HV Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,

It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

Specifications:

Brand:9imod

Color:Black

Gear Material:Metal Gear

Case Material:Aluminum alloy AL6061+Nylon additive

Control System:PWM Control (1500usec in the central point)

Operation Voltage Range:6.0v ~8.4V

Operation Temperature Range:-20c°~ +60C°

Direction:Re-clock wise/ Pulse Travel 500-2500 usec

Diver type:Mos Drive

Motor Type:Brushless motor

Potentiometer Type:Direct Drive

Amplifier Type:Digital Control

Dimensions:40x20x37.3mm

Weight:69.2g (without servo horn)

Ball Bearing:2BB

Connector Wire Length: 300MMJR Plug

Dead band width:2 usec

Model:BLS-HV20KG

Standing Torque:

0.08sec/60°  15kg-cm@6.0V

0.06sec/60°  20kg-cm@7.4V

0.055sec/60° 25kg-cm@8.4V

Model:BLS-HV30KG

Standing Torque:

0.09sec/60° 25kg-cm@6.0V

0.075sec/60°30kg-cm@7.4V

0.07sec/60° 33kg-cm@8.4V

Model:BLS-HV40KG

Standing Torque:

0.1sec/60°  35kg-cm@6.0V

0.085sec/60°40kg-cm@7.4V

0.08sec/60° 43kg-cm@8.4V

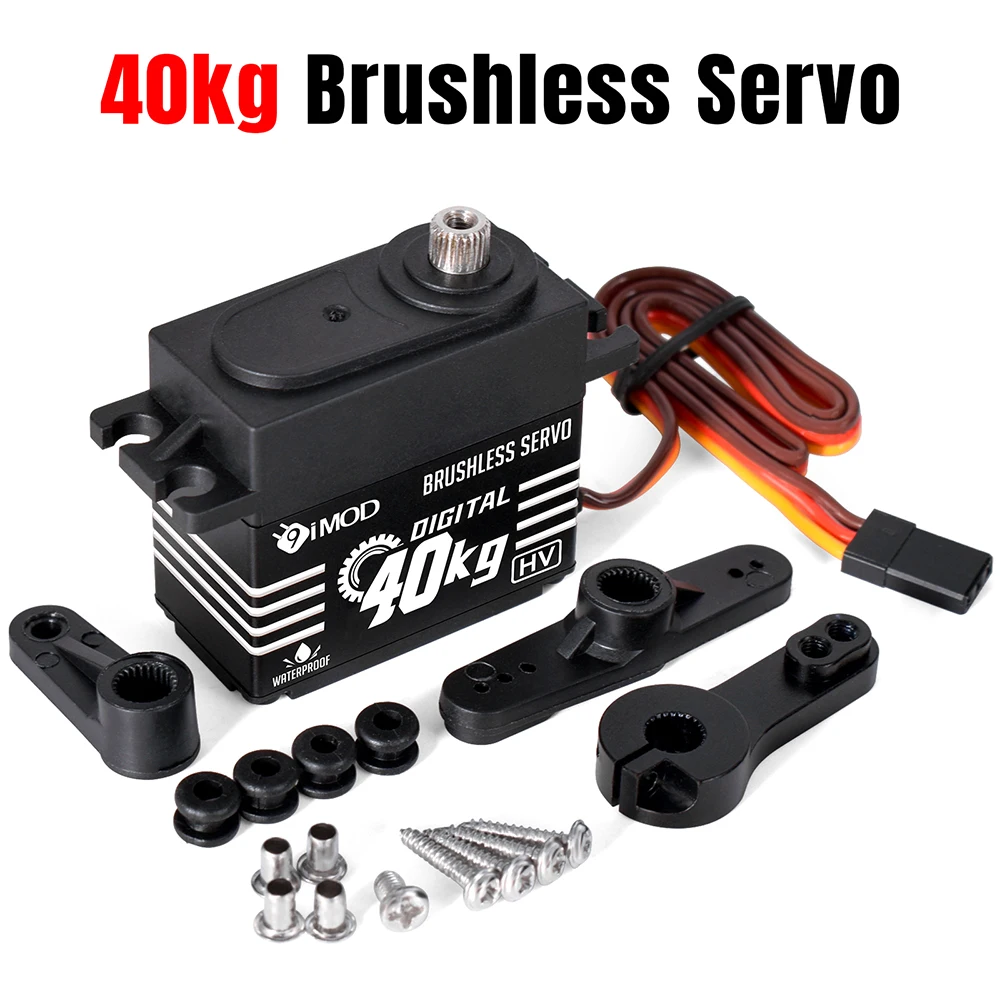

Package included:

1 x Servo

1 x Servo Accessories
