5V 12V 24V LED Power Supply AC 110V 220V to DC 5V 12V 24V LED Strip Light 12 Volt Switch Adapter Driver Electronic Transformer

Price range: $8.78 through $59.94

Specification

Overview

Weight 14 lbs
Dimensions 8 in
Brand Name

NONE

Origin

Mainland China

Type

Power Supply

High-concerned chemical

None

Rated Capacity

<40VA

Output Type

SINGLE

Output Current

0-50A

Output Power

12-600W

Max Output Current

1A 2A 5A 10A 15A 30A 33A 40A 50A

Power

60W 100W 120W 150W 180W 200W 250W 300W

Normally Used for

LED Strip Light

Lighting transformer

220V to 12V

LED Driver

12V Power Supply

LED Power Supply 5V

220 to 5V

Transformer 5V

Power Supply 5V 2A

LED Power Supply

5 Volt Power Supply

12 volt Adapter

12 volt power supply

LED Driver 24V

24V Power Supply

Type 1

Switching power supply 24v

Type 3

LED Driver 50W

Type 4

LED Driver 100W

Type 5

12V 5A

Type 6

12V Power Supply Unit

Type 7

Power Supply Unit 24V

Choice

yes

Description

5V power supply
Details:
Product Name: 5V Power Supply
Waterproof IP Rating: Non-Waterproof
Material: Metal & Aluminum
Max Power & Size(mm) as follows: (the size maybe have 2-6mm error,that is normal,hope you never mind)
5V 3A 15W, 87*58*37mm
5V 5A 25W, 115*82*4mm
5V 10A 50W, 158*97*42mm
5V 20A 100W,198*110*42mm
5V 30A 150W,198*115*42mm
5V 40A 200W,198*115*55mm
5V 60A 300W,213*112*55mm
Input Voltage: 100-240V AC  50/60 Hz
Output Voltage: 5V DC
Safety Standard: CE,RoHS,EMC,LVD
With Short Circuit Protection Function
Warranty: 2 Years

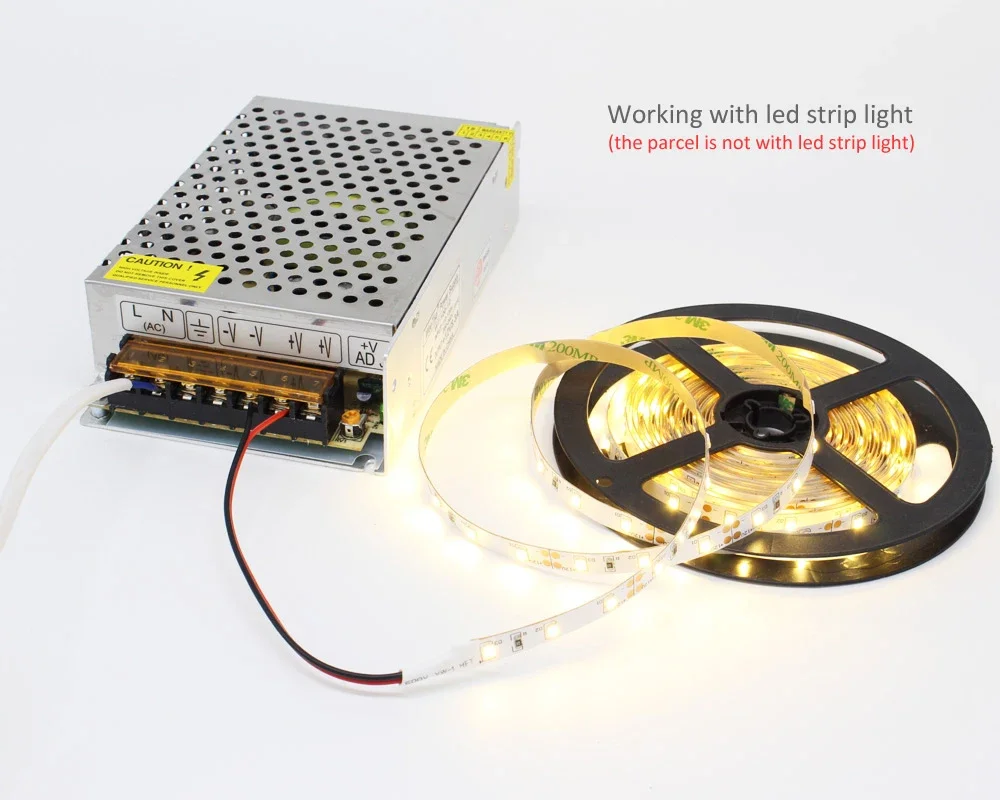

Driver,Power Supply,Lighting Transformer for indoor LED lamps,such as led strip lights,outdoor advertising led string light, led modules,bulbs,spotlights,etc.

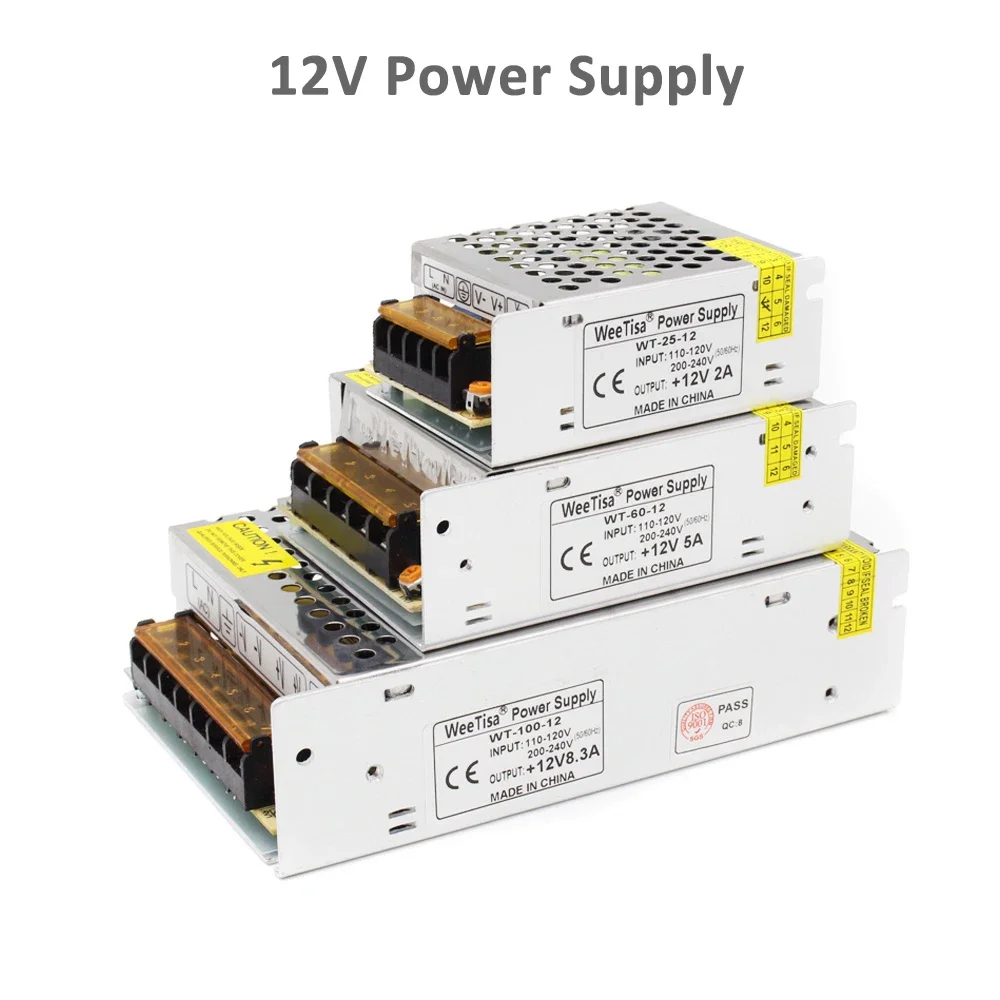

12V power supply
Details:
Product Name: LED Power Supply Adapter
Waterproof IP Rating: Non-Waterproo
Material: Metal & Aluminum
Max Power & Size(mm) as follows: (the size maybe have 2-4mm error,that is normal,hope you never mind)
12V 1A   12W, 70*40*30mm
12V 2A 24W, 90*60*37mm
12V 5A 60W, 115*80*40mm
12V 8.3A 100W, 160*105*42mm
12V 10A 120W, 165*105*45mm
12V 12.5A 150W, 200*98*45mm
12V 15A 180W, 200*98*45mm
12V 16.7A 200W,198*98*45mm
12V 20A 240W,205*110*50mm
12V 30A 360W,220*115*50mm
12V 33A 400W,220*115*50mm
12V 50A 600W,220*115*50mm
Input Voltage: 100-240V AC  50/60 Hz
Output Voltage: 12V DC
Safety Standard: CE,RoHS,EMC,LVD
With Short Circuit Protection Function
Warranty: 2 Years
Driver,Power Supply,Lighting Transformer for indoor LED lamps,such as led strip lights,outdoor advertising led string light, led modules,bulbs,spotlights,etc.

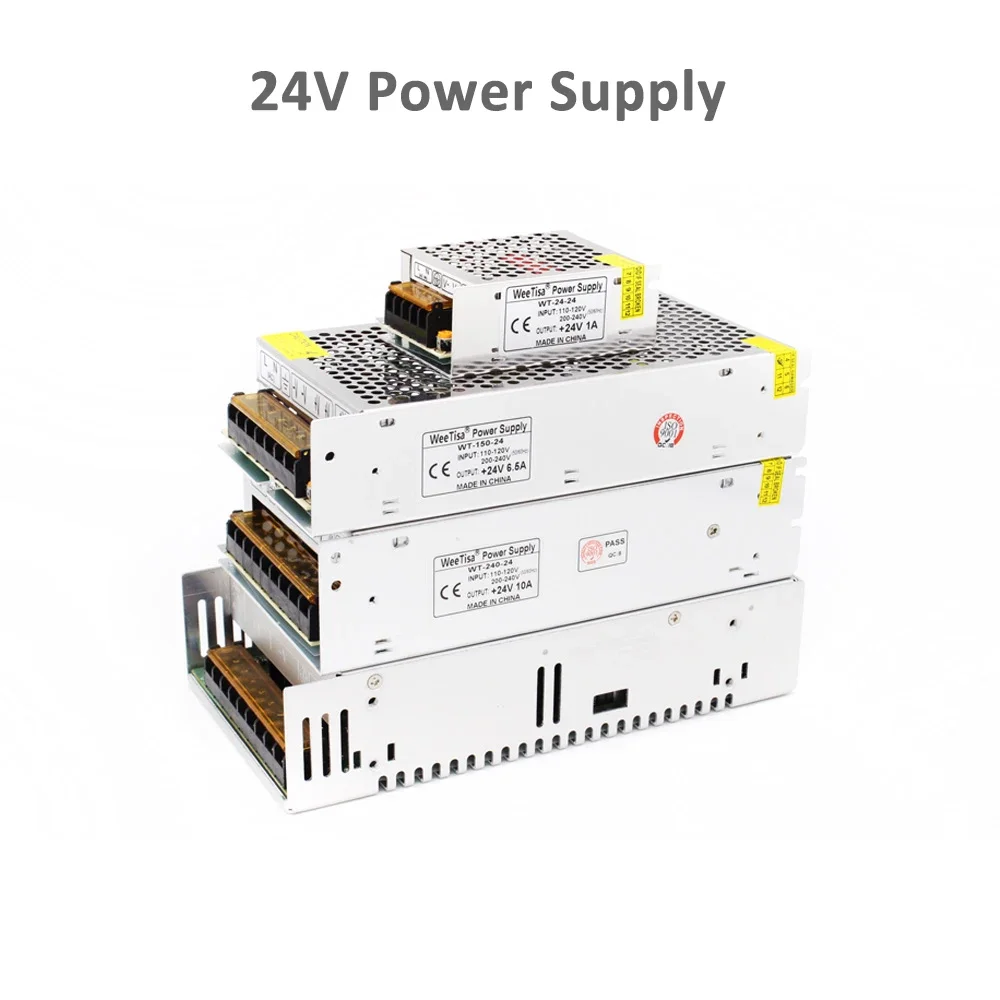

24V power supply
Details:
Product Name: LED Power Supply 24 Volt
Waterproof IP Rating: Non-Waterproof
Material: Metal & Aluminum
Max Power & Size(mm) as follows: (the size maybe have 2-4mm error,that is normal,hope you never mind)
24V 1A  24W, 85*58*32mm
24V 2A  50W, 110*76*40mm
24V 3A  75W, 158*98*42mm
24V 5A 120W, 200*98*42mm
24V 16.7A 400W, 220*115*50mm
24V 20A 480W,220*115*50mm (small size)
24V 25A 600W,220*115*50mm (small size)
Input Voltage: 100-240V AC  50/60 Hz
Output Voltage: DC24V
Safety Standard: CE,RoHS,EMC,LVD
With Short Circuit Protection Function
Warranty: 2 Years
Driver,Power Supply,Lighting Transformer for indoor LED lamps,such as led strip lights,outdoor advertising led string light, led modules,bulbs,spotlights,etc.
