If you need a large quantity, Click on the link below
50PCS
Â
NO = Normally Open
NC = Normally Closed

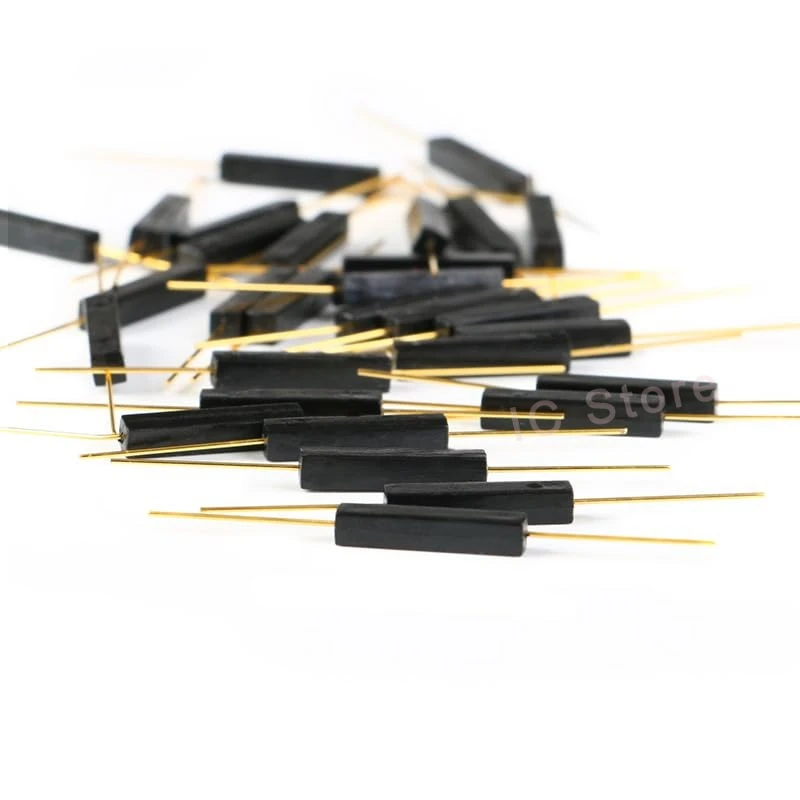

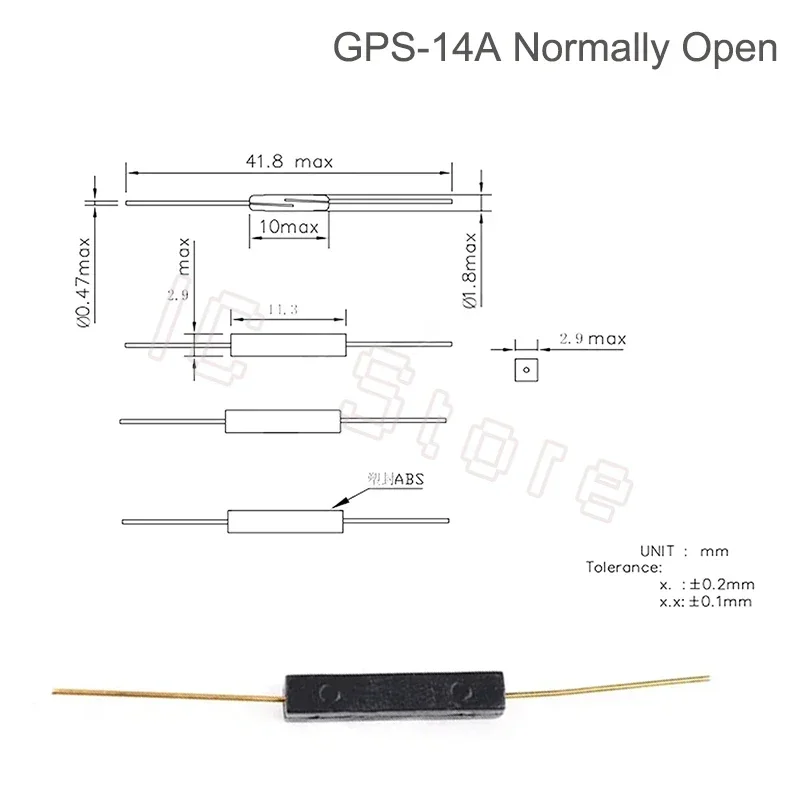

GPS-14A Normally Open（NO）2x14mm
Â
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT<25)/250VDC(AT>25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)
Breakdown voltage min: 150V
Lead wire: Golden Horn/Silver Horn
Â
Â

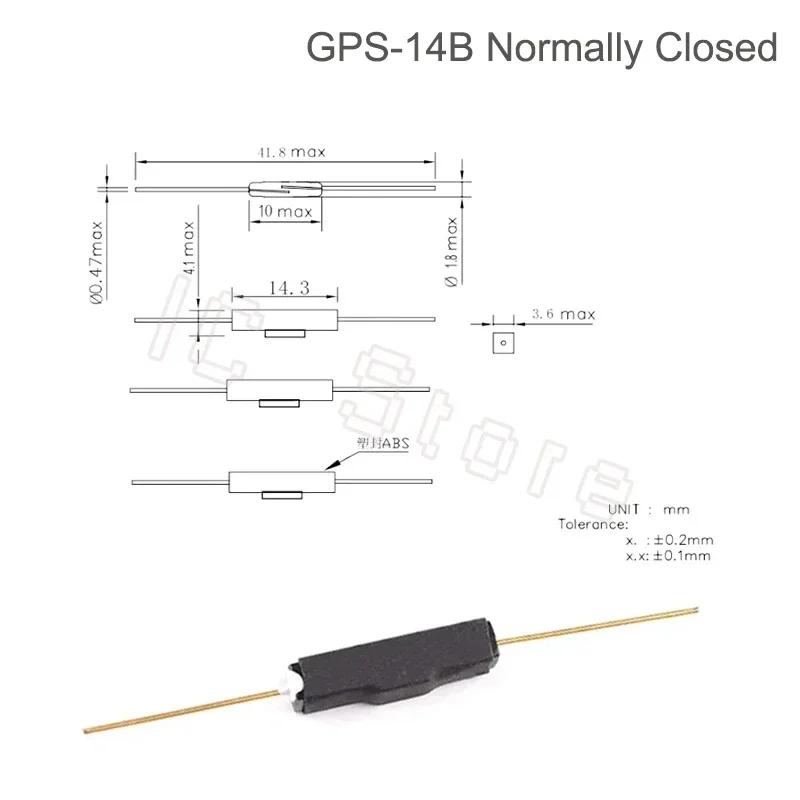

GPS-14B Normally Closed （NC）2x14mm
Â
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT<25)/250VDC(AT>25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)
Â
Â
GPS-11A Normally Open （NO）3x11mm
Â
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT<25)/250VDC(AT>25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)
Breakdown voltage min: 150V
Lead wire: Golden Horn/Silver Horn
Â
MKA-07101 Normally Open （NO）1.8*7mm
Â
Switching current: 0.1~0.2A
Switching voltage: 100~125V
Contact load: 10W
Start value: 10-35AT
Contact method: A
Working frequency max: 400Hz
Load: 24V-250mA-106
Release time: 0.4ms
Electrical life: 5v-10mA -2*106
Bounce time: 0.2ms
Contact capacitance: 0.3pF
Action time: 0.6ms
Reset sensitivity: 5AT
Insulation resistance min: 0.6ms
Contact resistance max: 200mΩ
Â
Â
MKA-10110 Normally Open （NO）1.8x10mm
Â
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-15AT
Contact form: IA SPST-NO
Contact resistance max: 100mΩ
Release value: 5
High voltage resistance: 220VDC (AT>5)
Contact capacitance: 0.7pF
Insulation resistance: 10^10Ω
Resonance frequency: 4KHz
Working temperature: -55℃~+120℃
Electrical life (resistive load): 10^8(5VDC,19mA,400mA)/10^5(12VDC,400mA)
Â
Â
Â
Â
MKA-14103 NO
Switching current: 0.5-1A
Switching voltage: 100-220V
Contact load: 10W
Start value: 7-35AT
Contact method: A
Resistance: 450Ω
Working frequency max: 100Hz
Response frequency: 4000HZ
Load: 24V-400mA-5X105
Release time: 0.4ms
Electrical life: 5v-10mA -1×108
Bounce time: 0.2ms
Contact capacitance: 0.3pF
Action time: 1.0ms
Reset sensitivity: 5AT
Insulation resistance min: 1010Ω
Contact resistance max: 100mΩ
Â
Â

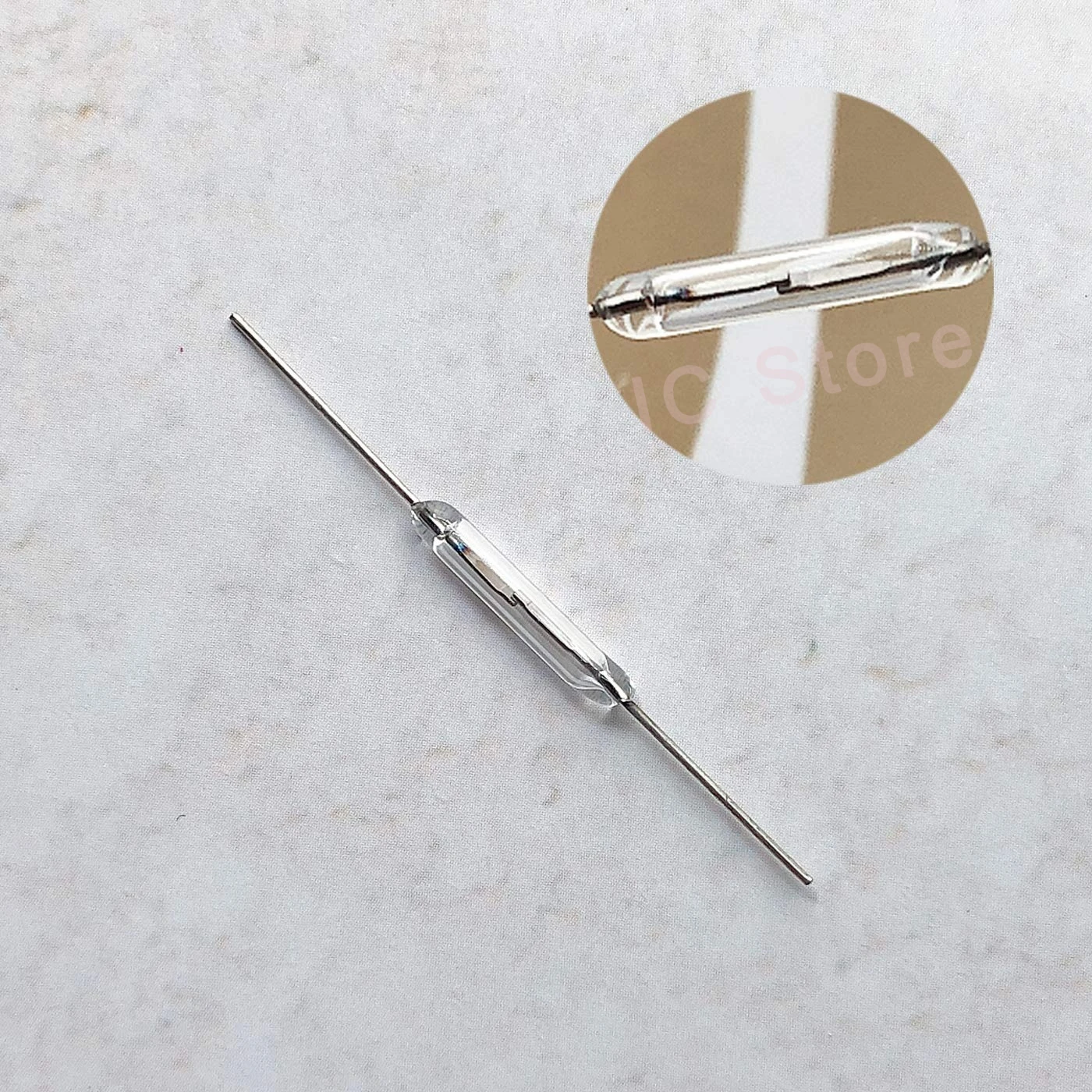

Y213 Normally Open （NO）2x14mm
|  Glass　Length |  14mm |
|   Glass　Diameter |  2mm |
|   Total　Length |  45mm |
| Â Contact Form | Â A |
| Â Max. Switching Voltage | 300 VDC |
| Â Min. Breakdown Voltage | 150 VDC |
| Â Max. Contact Rating | Â 10W |
| Â Max. Switching Current | Â 0.55 A |
| Â Max. Operate time | Â 0.45 ms |
| Â Bounce time | Â 0.25 ms |
| Â Max. Release time | Â 0.35 ms |
| Â Resonant Frequency | Â 5000 HZ |
| Â Max. Operating Frequency | Â 400 HZ |
|  Pull in Value |  20-70 AT |
| Â Min. Drop out Value | Â 4 AT |
| Â Max. Contact Capacitance | Â 0.5 pF |
|  Electrical Life |  50mV-10μA-1×106 |
Â
MKA17101 Normally Open （NO）4x28mm
Contact method: A
Load current Max: 2.5A
Contact resistance Max: 200mohm
Insulation resistance Min: 10ohm
Electrical life: 30V-100mA-2*10/60V-200mA-10
Response frequency: 2200Hz
Operating frequency Max: 50Hz
Contact Capacitance Max: 2.0/1.0PF
Test coil turns: 5000T
Resistance: 450 ohm
Switching current: 1.0A
Switch Voltage: 200~350V
Max contact Rating: 30W
Pull in Value: 45~90AT
Â
RI-90 Normally Open and Normally Closed （NO NC）2.5x14mm
Contact Method：AÂ
Maximum Power：4W
Maximum Switch Voltage：60VDC/VAC
Withstand High Voltage：60VDC/VAC
Maximum Switch Current：0.25A
Maximum Load Current：0.5A
Maximum Contact Resistance：115M
Minimum Insulation Resistance 2×107 / 2×109
Action Time：0.25ms
Bounce Time：0.05ms
Response Frequency：3000Hz
Sensitivity Value：10~20AT
Minimum Reset Sensitivity Value：5FT
Maximum Contact Capacitance：2.0PF
Electrical Lifespan (Load)：5×106 (50mV, 10mA)
Test Coil Number/Resistance：5000/600 Ohm
Â
MKA20101 Normally Open (NO) 2.5x20mm
Contact form:Â Â Â Â Â Â Â 1A(SPST-NO)
Contact material:Â Â Â Ru
Contact Rating:Â Â Â Â Â 10W
Max Switching Voltage: 180VDC/130VAC
Max Switching current: 0.5A
Contact resistance:  150MΩ
Pull in value (AT):Â Â 10-40
Dropout value (AT):Â Â 4
Actuation time:Â Â Â Â Â Â 1.0mSec(Max.)
Release time:Â Â Â Â Â Â Â Â 0.3mSec(Max.)
High pressure resistant: 220VDC
Contact Capacitance:Â 0.4PF
Insulation resistance: 10^9Ω
Frequency:Â Â Â Â Â Â Â Â Â Â Â 2.6KHZ
Operating temperature range: -60℃ ~ +125℃
Electrical life:     10×10^7次
Test coil:           5000T 550Ω
Lead foot:Â Â Â Â Â Â Â Â Â Â Â Gold-plated
Safety:Â Â Â Â Â Â Â Â Â Â Â Â Â Â UL
Â
