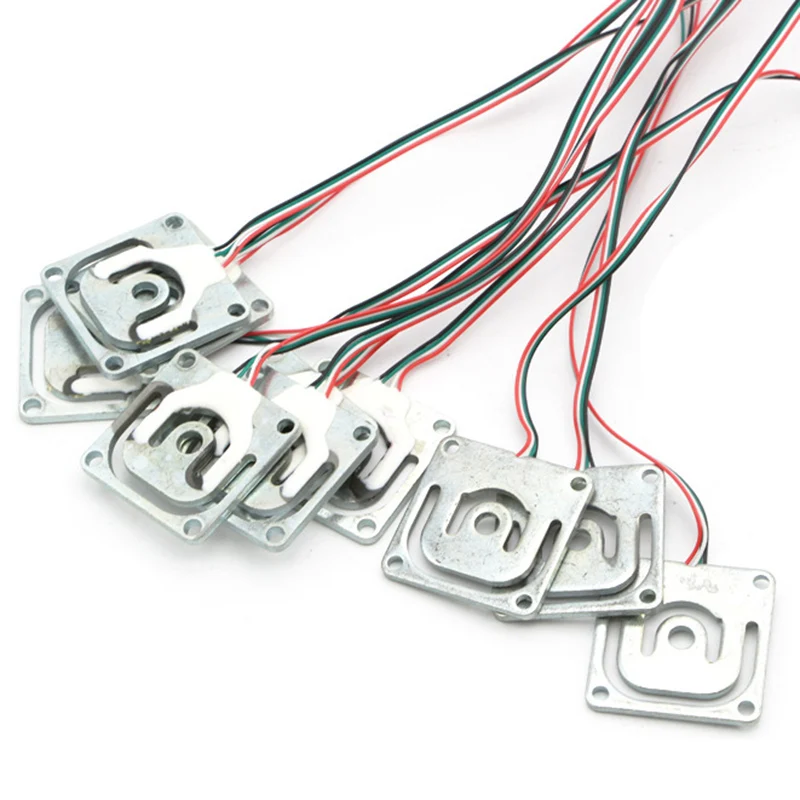

4pcs Weigh Sensor Thread Hole 10kg/30kg/50kg Bridges Resistance Strain Body Weighing Load Pressure Sensor

Features:
1. This is a full-bridge load sensor
2. You can use multiple load sensors simultaneously to increase the capacity range.
3. Widely in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices.
4. Made of good quality material and durable

Specification:
Capacity: 10, 30, 50, 75kg
Output resistance 1000 ± 500
Accuracy: C1
Insulation resistance ≥5000MQ (50VDC)
Comprehensive error: ± 0.05% F.S
Output temperature drift: ± 0.05% F. 5/10 degrees Celsius
Sensitivity: 1.6 ± 0.2mV / V (30-75kg); 1.0 ± 0.2mV / V (10kg)
Zero temperature drift: ± 0.05% F, S / 10 degrees Celsius
Temperature range chart: -20-65 degrees Celsius
Creep: ± 0.5% F.S / 30min
Excitation voltage: 9-12VDC
Zero output: ± 1% F.S
Safety overload: 150% FS
Input resistance: 1050 ± 10Ω
Protection level: IP65

Package Includes:
4x Weigh Sensor

Package List:

4x Weigh Sensor
