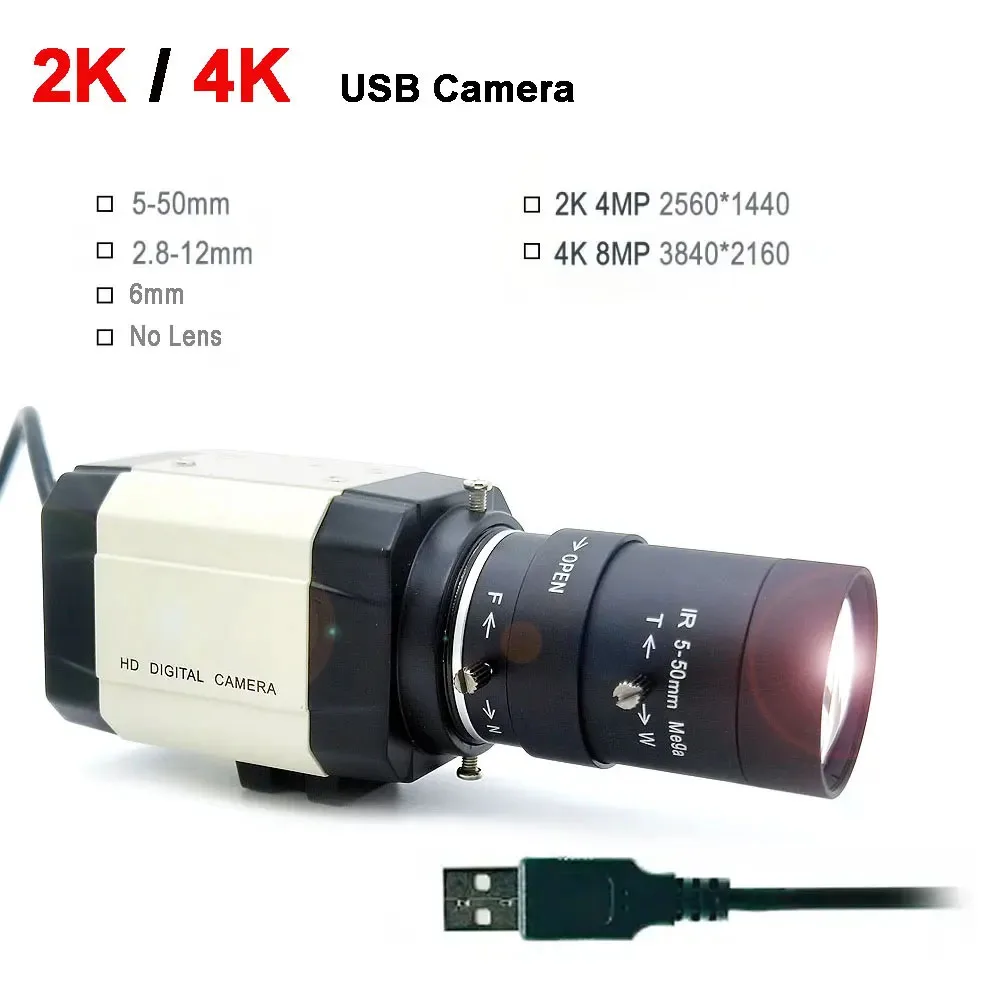

4K PC Webcam HD 6mm 2.8-12mm/5-50mm Varifocal Manual Lens 8MP 3840*2160/2K 4MP 30fps 2560×1440 UVC High Speed USB Computer Camer

4K PC Webcam HD 6mm 2.8-12mm/5-50mm Varifocal Manual Lens 8MP 3840*2160/2K 4MP 30fps 2560×1440 MJPG UVC High Speed USB Computer Camera

4MP USB Camera Feature:

1.High Speed 4MP HD USB Camera

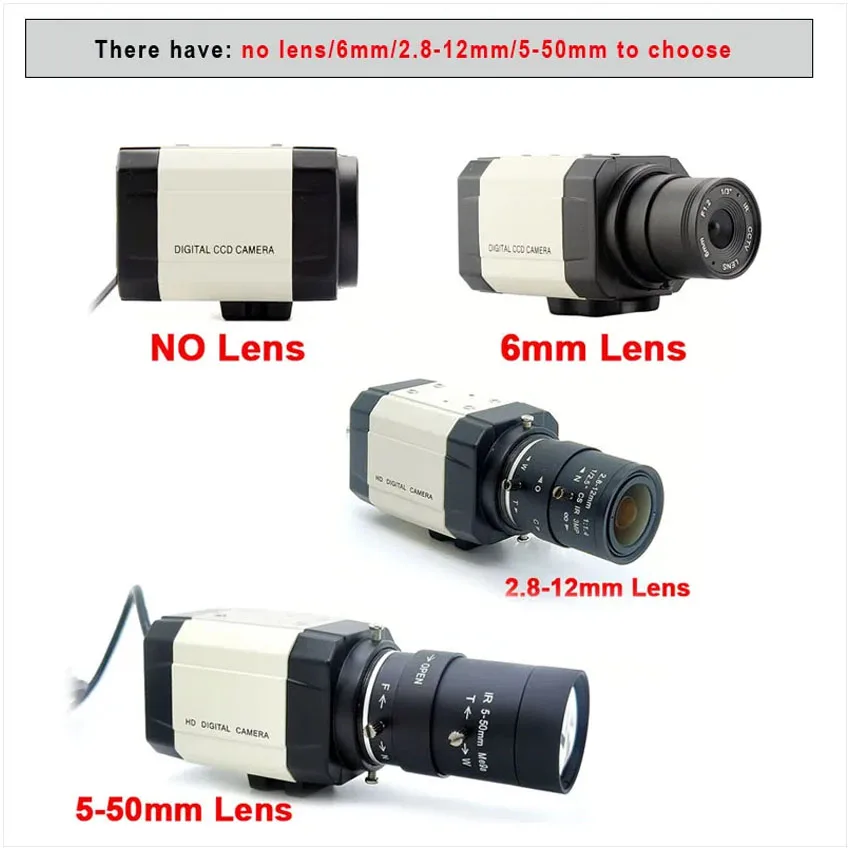

2.6/2.8-12/5-50mm Lens

3.High frame rate MJPG– deliver 30 fps in 2560×1440 resolution, 30 fps in 1920X1080 resolution.

4.CMOS F5253 Sensor for high quality image and low power consumption.

5.High speed USB 2.0 interface for high resolution PC camera interface.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

8.Super small outline and thin profile for embedded applications.

9.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

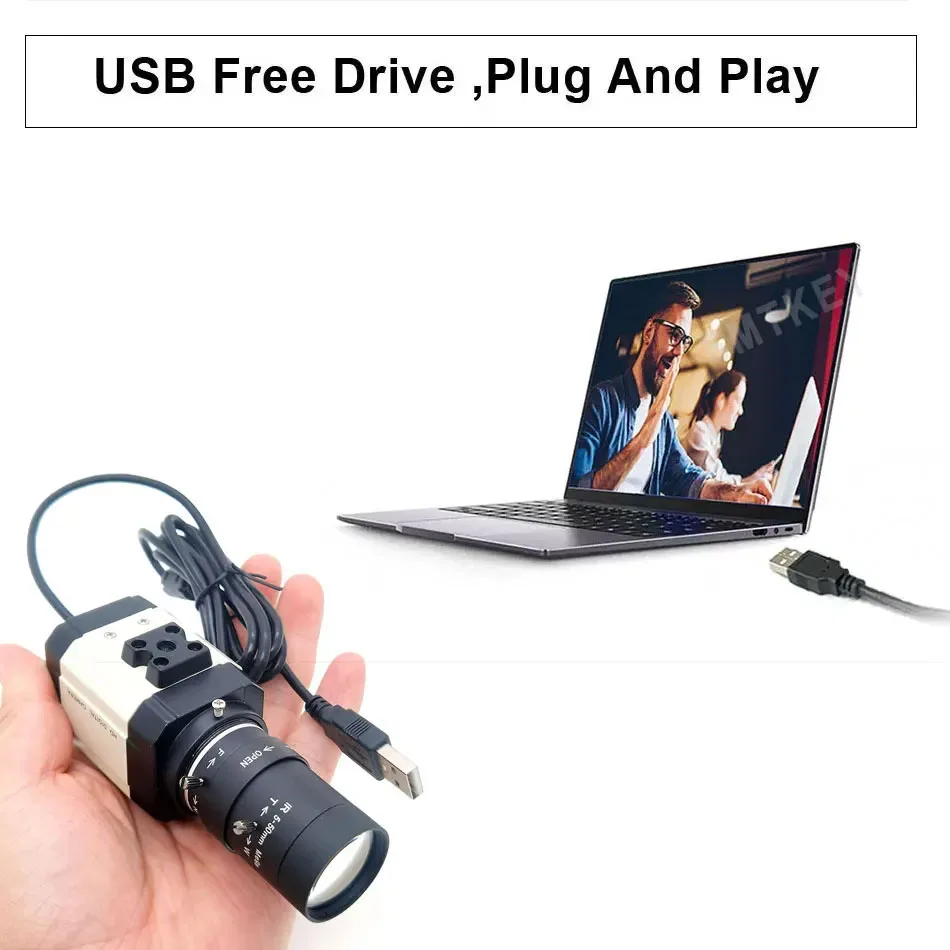

10.Camera With UVC, Drive-free.

Specification:

Sensor：1/2.9” CMOSF5253

Pixel：4MP, 4 Megapixel ,2560(H)x1440 （V）Pixels

Max resolution: 2560×1440

Output image format: MJPEG

USB protocol: USB2.0 HS/FS

Support free drive protocol: USB Video Class (UVC)1.1

Audio: With Microphone

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Frame rate:

2560(H)x1440 （V）Pixels MJPEG 30fps

1920(H)x1080 （V） Pixels MJPEG 30fps

1280(H)x 720 （V） Pixels MJPEG 30fps YUV2 30fps

640(H)x480 （V） Pixels MJPEG 30fps YUV2 30fps

Adjustable parameters: brightness, contrast, color saturation, Gamma, WB

Night Vison: no

Minimum illumination: 0.1(F1.2，AGC ON)

View Angle : Wide angle

Working voltage: DC 5V

Working current: 150mA

Working temperature: -10～60℃

Board size/weight: 32X32mm

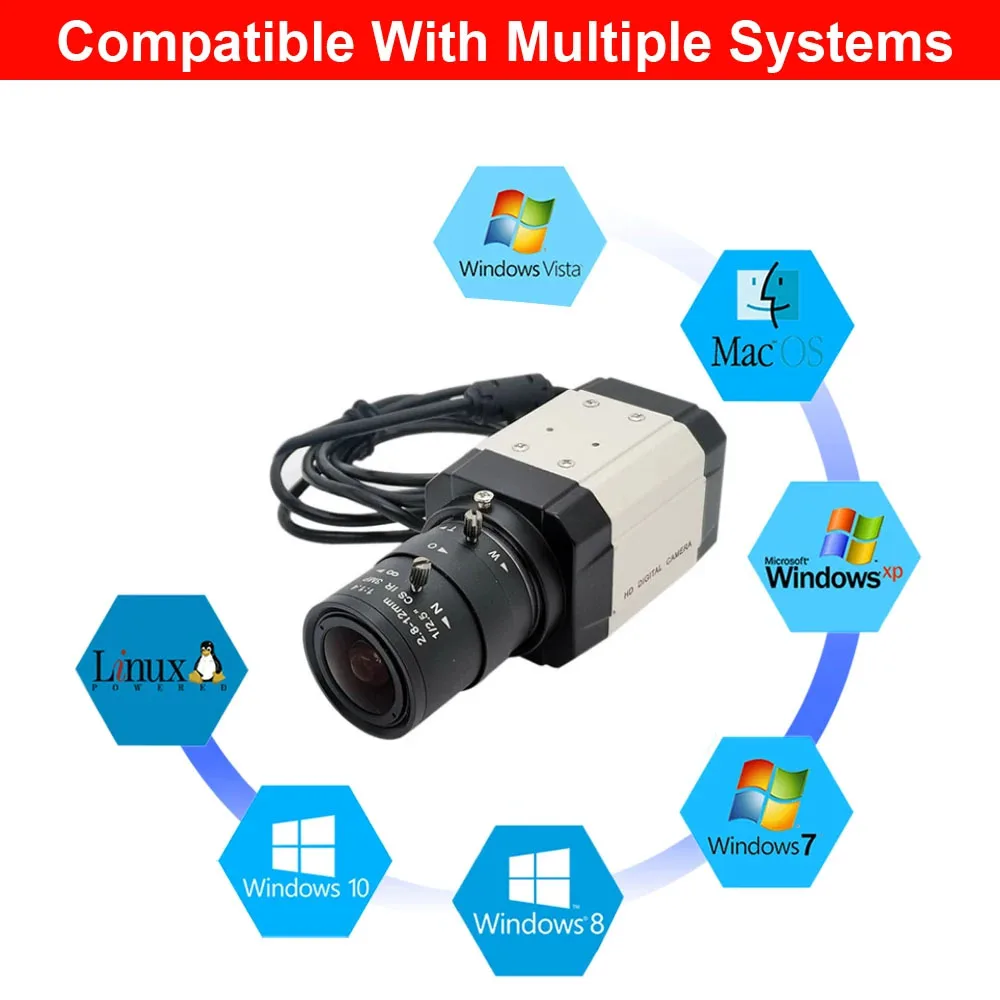

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

——————————————————————————————————

8MP USB Camera Feature:Product Parameters:

CMOS/chip model: 4K 8MP cmos IMX415

Photosensitive size: 1/2.8 inch

Single pixel size: 1.45um*1.45um

Photosensitive signal-to-noise ratio: TBD

USB interface type: USB2.0

Effective maximum resolution & frame rate:

MJPG (compressed format): 3840*2160/30fps.MJPG

Common resolution & frame rate: 2592*1944/30fps.MJPG   1920*1080/60fps;MJPG ,  1280*960/30fps;MJPG ,

1280*720/30fps;MJPG ,  800*600/30fps;MJPG  640*480/30fps; MJPG,  320*240/30fps; MJPG

YUV (compressed format): 800*400/20 fps/YUV,   640*480/20fps/YUV

Working voltage and current: 5V*170mA-240mA

Adapt to the working environment temperature: 0 to 60 degrees

Storage temperature, humidity: minus 30 to plus 80 degrees

Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.

Mac-OSx10.4.8 or above (Compliant with UVC protocol)

Linux,Android, etc. (Compliant with UVC protocol)

Application areas: Express station face camera. Scanning camera. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Conference video. Industrial vision. Visual inspection. USB microscope. Express cabinet camera. Smart vending machine camera. Electronic weighing item identification. Etc…

Support driver-free protocol: USB Video Class (UVC)

Support OTG protocol: USB 2.0 OTG

PCB (board frame) size: 38*38mm, (compatible with 32*32)

Power supply mode: USB BUS POWER

USB Cable: 1m
