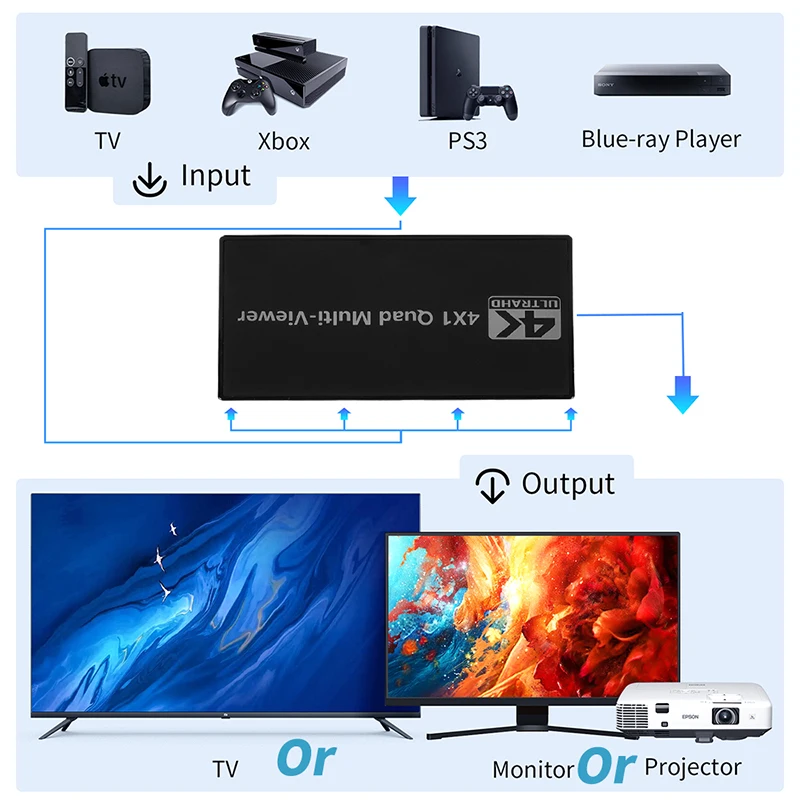

This 4X1 HDMI Switcher with Multiviewer empowers users to connect up to four HDMI sources and offering simultaneous display or seamless full-screen switching.The HDMI Quad Multi-viewer supports resolutions up to 1080P@60Hz in video quality and 3840X2160@60Hz in resolutions.
Remarks:
1)This is an economy HDMI Quad Multi-viewer, pls allow some tolerance.
2)The HDMI Switch 4X1 with Multi-viewer supports down&up Scaling.It can Scales 1080P@60Hz to 4K@30Hz and downscales a 4K 30Hz resolution in to
1080P@60Hz,however, the scaling can not improve the video quality. Under viewer mode, the actual video quality is 1080P@60Hz at max.
3)The Multi-viwer supports original and stretched Display.You can change the display modes by long pressing the mode button on mainbody and releasing it when the screen turns black.
4)HDmatters’ QC team will conduct 100% test after the manuacturer’s normal QC procedure.
5)The Multiviewer can only work well with qualified HDMI 1.4 and above cable. The HDMI cable shall be of copper conducto with all 19-pins wired and well-shieding&earthing.
Most sync issues are caused by poor cable. Poor cable might be working with direct connection from video source and Display as most HDMI host device supports boosting.
Sync issues happens when it comes to long transmission and mixing application with other devices.
6)Like normal HDMI switch, the viwer can only support switching among HDMI ports of which turning on and working HDMI source device connected.
7)There are 3 options, if you choose USB power cord, the package will not include the 5V USB charger, pls power it with your own 5V USB charger.

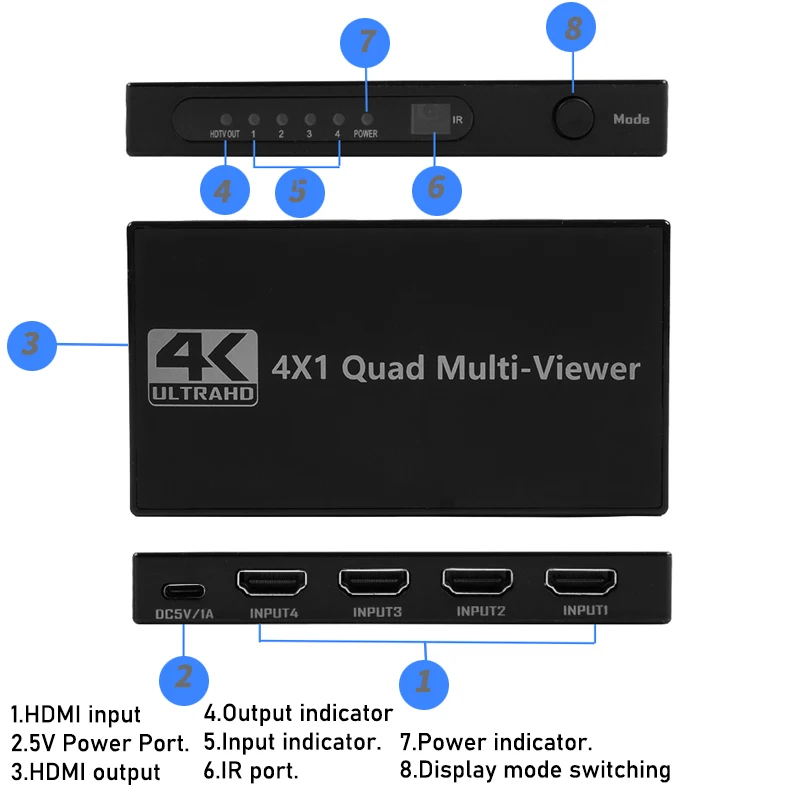

Features:
Connects up to 4 HDMI video sources to a single Display.

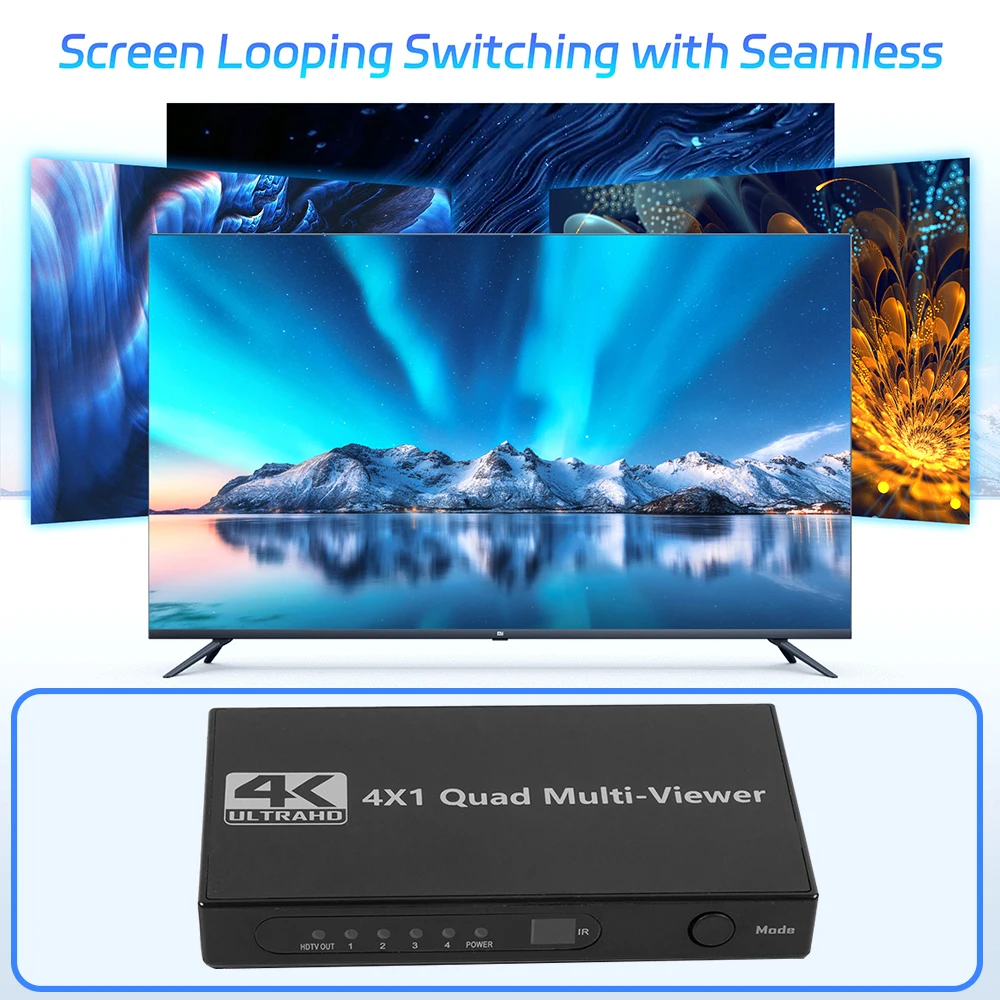

Supports simultaneous display or seamless full-screen switching.
Supports original or streched display.

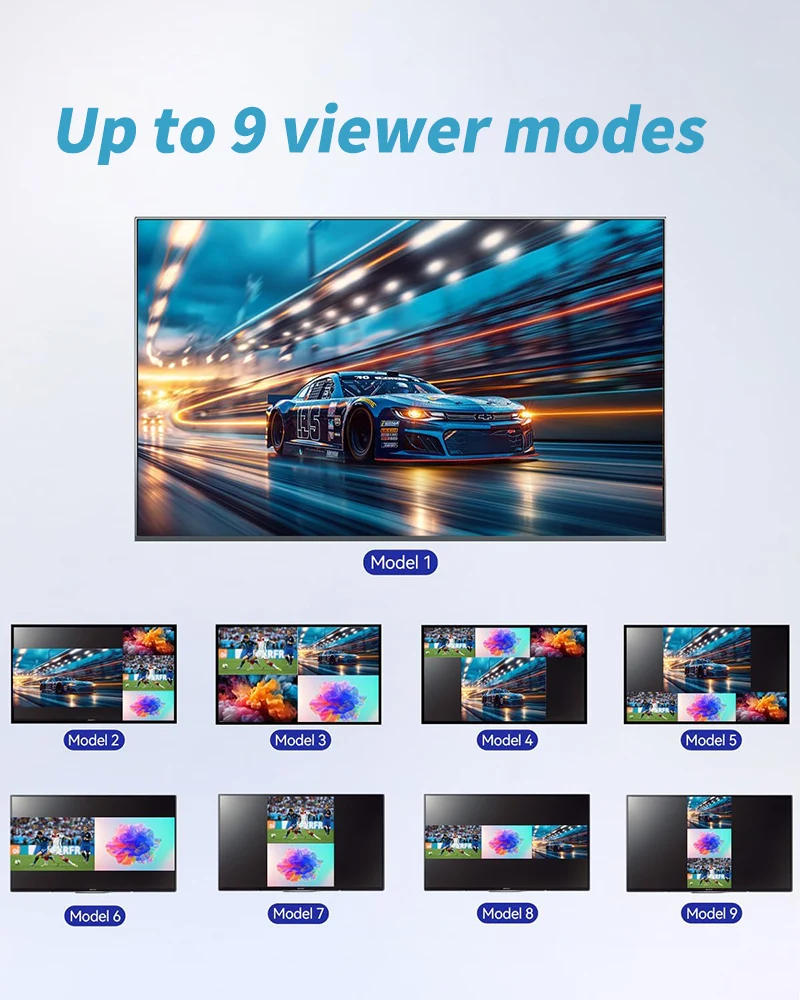

Up to 9 Display Modes supported
Supports mode switching either by button or included remote.
Supports in and out resolutions up to 4K@30Hz.
Supports HDCP 1.4 and backward compatible with HDCP 1.3.
What’s in the package:
HDMI Multiviewer X1
Remote control X1(battery is not included)
USB Power Cord X1
