4K HDMI-Compatible to USB 3.0 1080P@60Hz Video Capture Card With Loop-Out for PS5 PC Game Live Streaming Camera Broadcast OBS

$15.18

Specification

Overview

Weight 15 lbs
Dimensions 2 in
Brand Name

EQP

Application

Display

High-concerned chemical

None

Output

USB

Input

AUDIO

Type

Video Capture Card

Origin

Mainland China

Choice

yes

semi_Choice

yes

Description

Features:

1. It can capture HD video signal;

2. The recorded video signal can reach 1080p / 60Hz, HD input supports 4K / 30Hz;

3. Support MJPEG and YUY2;

4.Support UAC UVC agreement, support 48 KHz PCM audio sampling rate;

5. Some win7 need to install the driver;

6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;

7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);

8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;

9. Can automatically detect the input audio format and convert it to 48KHz PCM audio;

10.2 collection rods can be used on a PC;

11. Support online firmware upgrade to better improve product compatibility;

12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;

13. Support all third-party player software compatible with UVC and UAC protocols;

System Requirements:

Computer system requirements:

Windows® 10 / Windows 8.1 / Windows 7 (SP1);

4 GB RAM (8 GB recommended);

Mobile phone system requirements:

Android phone (supported by newer phones);

Only supports USB2, not USB3. (The reason is that android UVC driver does not support USB3);

If it is a USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use

Specifications:

1. Input interface: 1 HD interface;

2. Output interface: USB3.0, 300 ~ 350MB / s throughput;

3. HD input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280×960, 1024×768, 800×600, 640×480

4. HD sound input: LPCM sound signal;

5. HD input format: compatible with HD1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;

6. Output format Resolutions: 640×480 / 720×480 / 720×576 / 800×600 / 1024×768 / 1280×720 /

1280×960 / 1280×1024 / 1366×768 / 1360×768 / 1440×900 / 1400×900 / 1680×1050 / 1920×1080

frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps;

7. Video sampling rate: HD: 165MHz;

8. Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards;

9. Output color space: YUV, RGB;

10. Support operating system: Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;

11. Software compatibility:

Adobe Flash Media Live Encoder (Windows, OS X);

Real Producer Plus (Windows); VLC (Windows, OS X, Linux);

QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and etc.

12. Power consumption: = 2.5W;

13. Working temperature: 0-70 degrees Celsius;

14. Storage temperature: -20-120 degrees Celsius;

15. Storage humidity: 5% -90%;

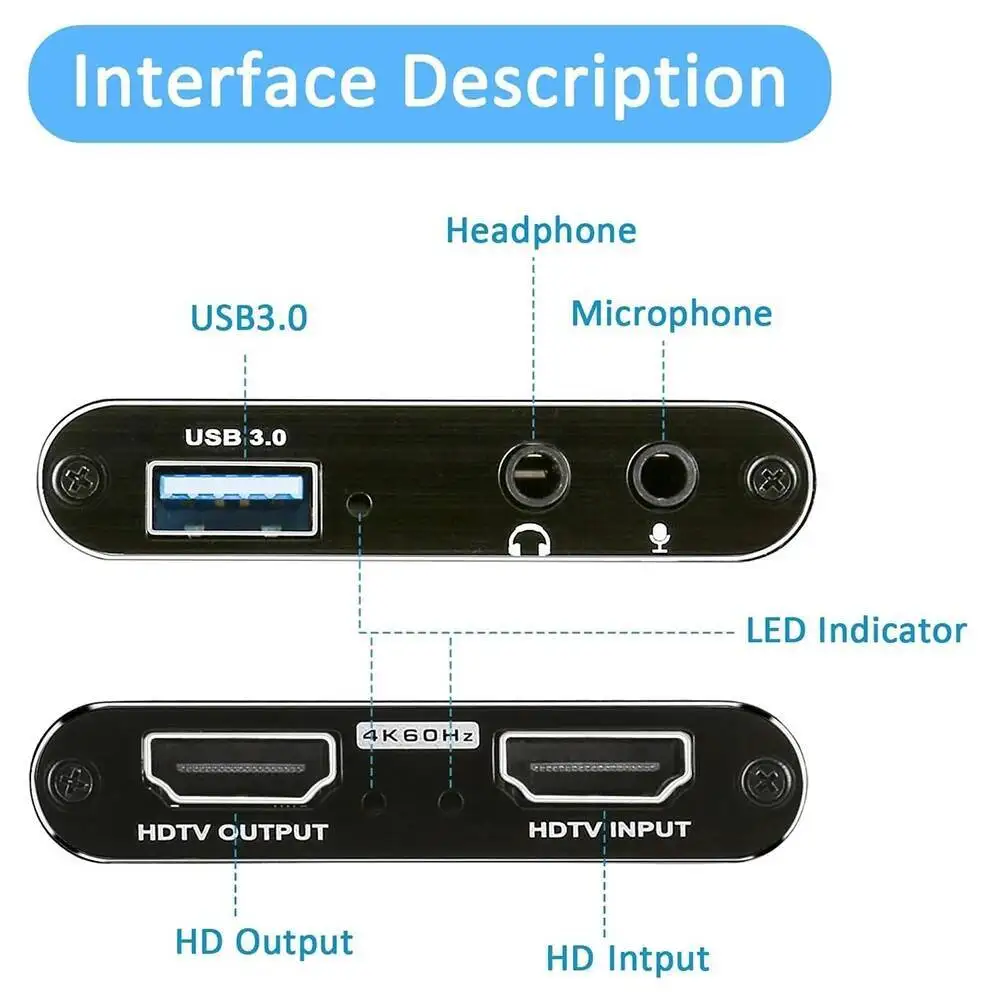

Interface Description:

1. Signal indicator: When the device captures video normally, the indicator lights up.

2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights.

3. HD input: This slot is where the HD output source such as camera, camcorder, game box, IPTV box, etc. is connected.

4. USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop.
