433Mhz Wireless Remote Control Switch 30A DC 12V 24V 48V 72V RF Relay Receiver For Motors Water Pumps Lights Switch

About Receiver:

1. Working voltage: DC12V-72V
2. Quiescent condition: Less than 8mA
3. Working temperature: -40 Degree +80 Degree
4. Receiver sensitivity: more than -105dBm
5. Working frequency: 433mhz
6. Output voltage: Input=output
8. Max load current: 30A
9. Size: 105 x51 x 30mm

RF433mhz Remote Control
Support encoding : 1527 Leaning code
Remote distance : up to 70m (theoretical distance)
Battery :  CR2032 (included)
RF frequency : 433MHz
Size :60*30mm

Product Advantages

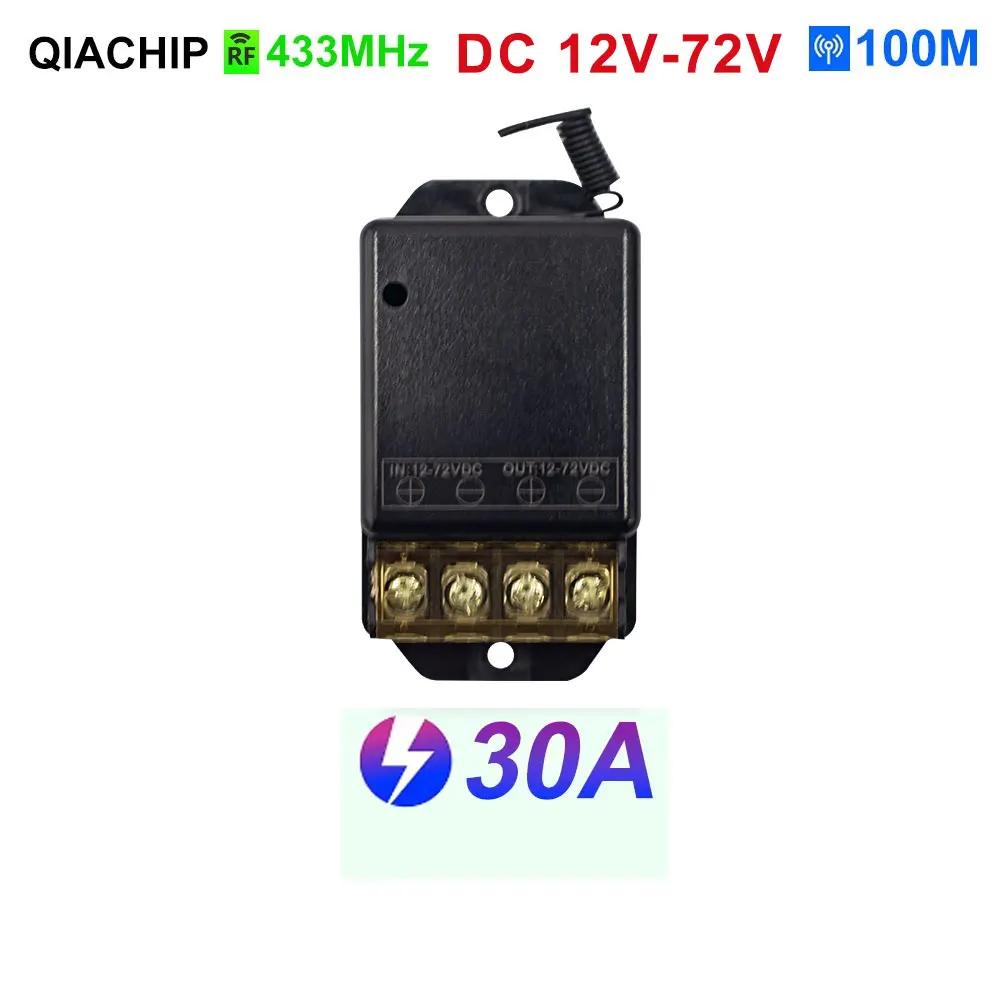

RF433mhz Wireless Receiver
30A High Power :
Suitable for a variety of devices, safe to use.
After power off, power on again, the device state is off by default.
Long receiving distance:
Open space is more than 70 meters.

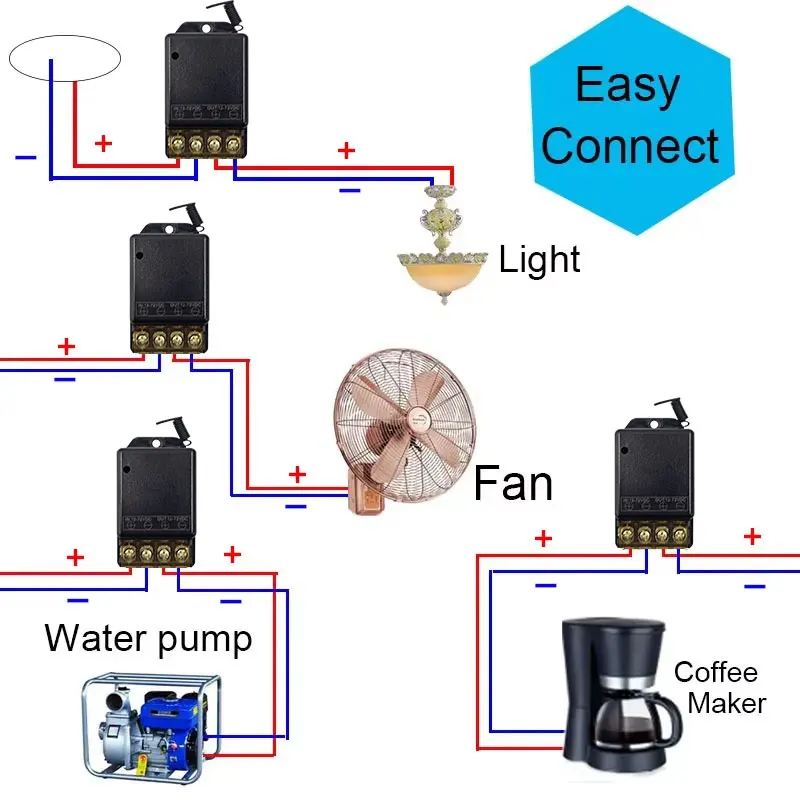

Simple to use:
The remote control has been set up before delivery, and can be used after simple wiring.

RF433mhz Remote Control
waterproof:
Applicable to more scenarios, more reliable.
Long remote distance:
Up to 70 meters remote range ( theoretical distance ) .The more obstacles, the shorter the distance, the more serious the signal loss.
Comes with metal keychain:
Have a keychain, which can be easily hung on various objects.
Batteries included, no extra batteries required.

Comprehensive after-sales and service
Our after-sales service team can provide the most professional solution to any of your problems.

   Features

30A High Power:
True 30A relay with stable output and wide application.

Set Up
Note: Before configuring the signal, Press the learning button 8 times , to reset the receiver.
Setting mode 1 Momentary mode:
STEP 1
Press the learning button on the Receiver Once.
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on;

Setting mode 2 Toggle mode:
STEP 1
Press the learning button on the Receiver Twice.
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on;

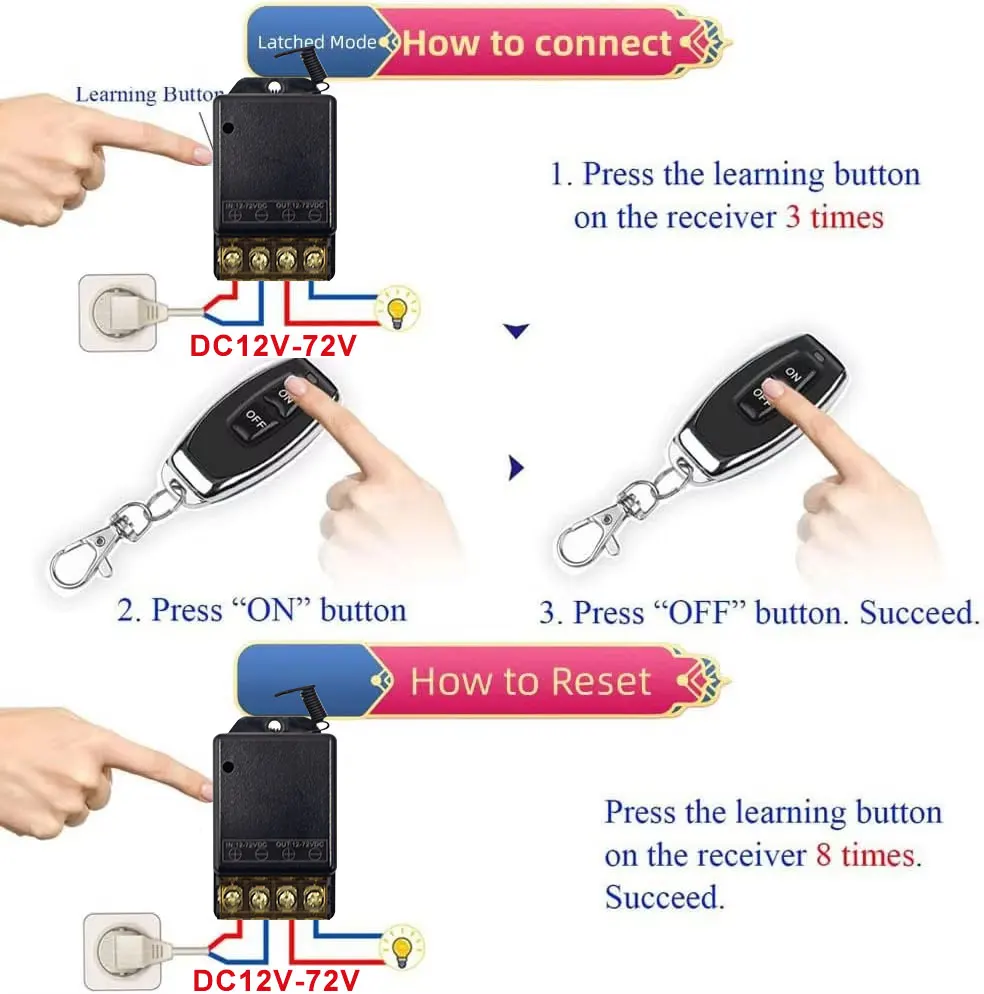

Setting mode 3 Latched mode:
STEP 1
Press the learning button on the Receiver Three times.
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press A button on the Remote Control , the LED on the receiver board will flash on;
STEP 3
Press B button on the Remote Control , the LED on the receiver board will flash on
