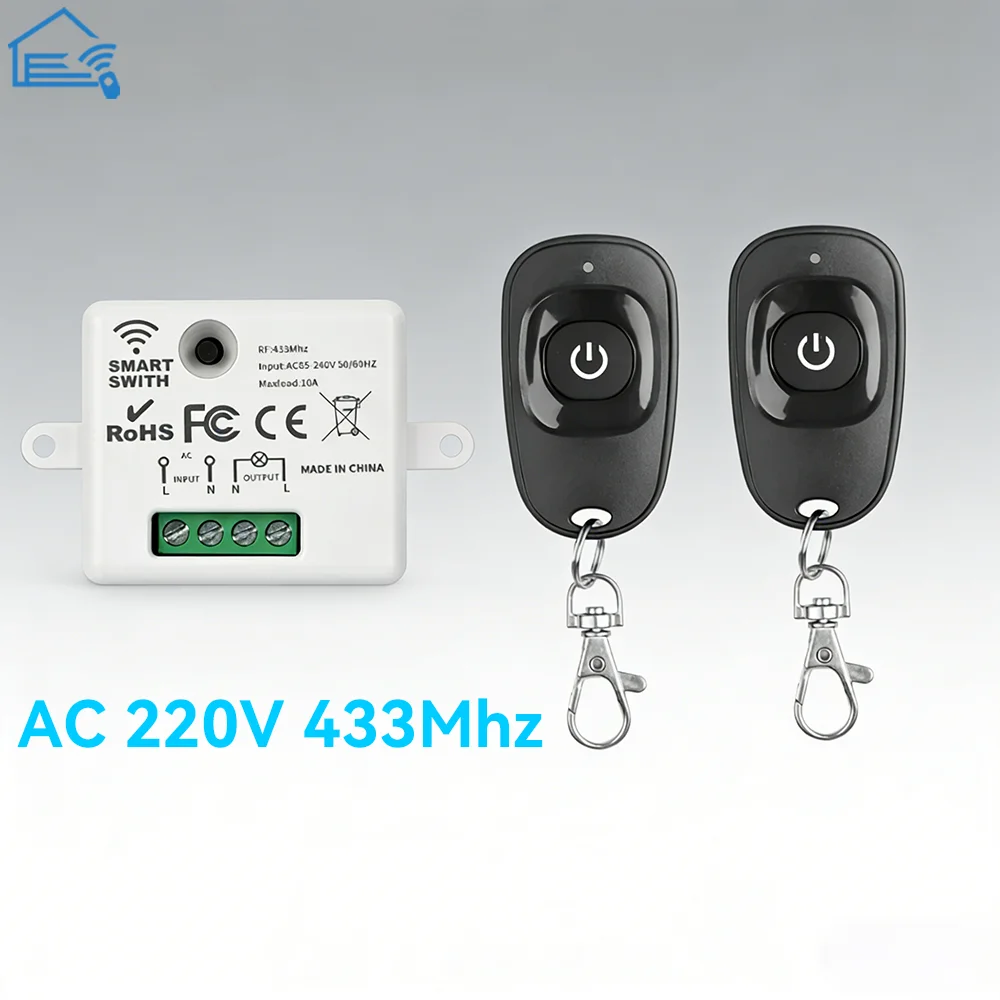

433Mhz Universal Wireless Remote Control Switch 110V 220V 10A Relay Mini Receiver Remote Control For Home Led Light Lamp

Mini Wireless Receiver Specification Data

Encoding Type: Intelligent Learning Code 1527

Modulation Mode:ASK

RF Frequency: 433MHz

Input Voltage: AC 85V~240V

Max current: 10 Amp

Remote distance : up to 50m (theoretical distance)

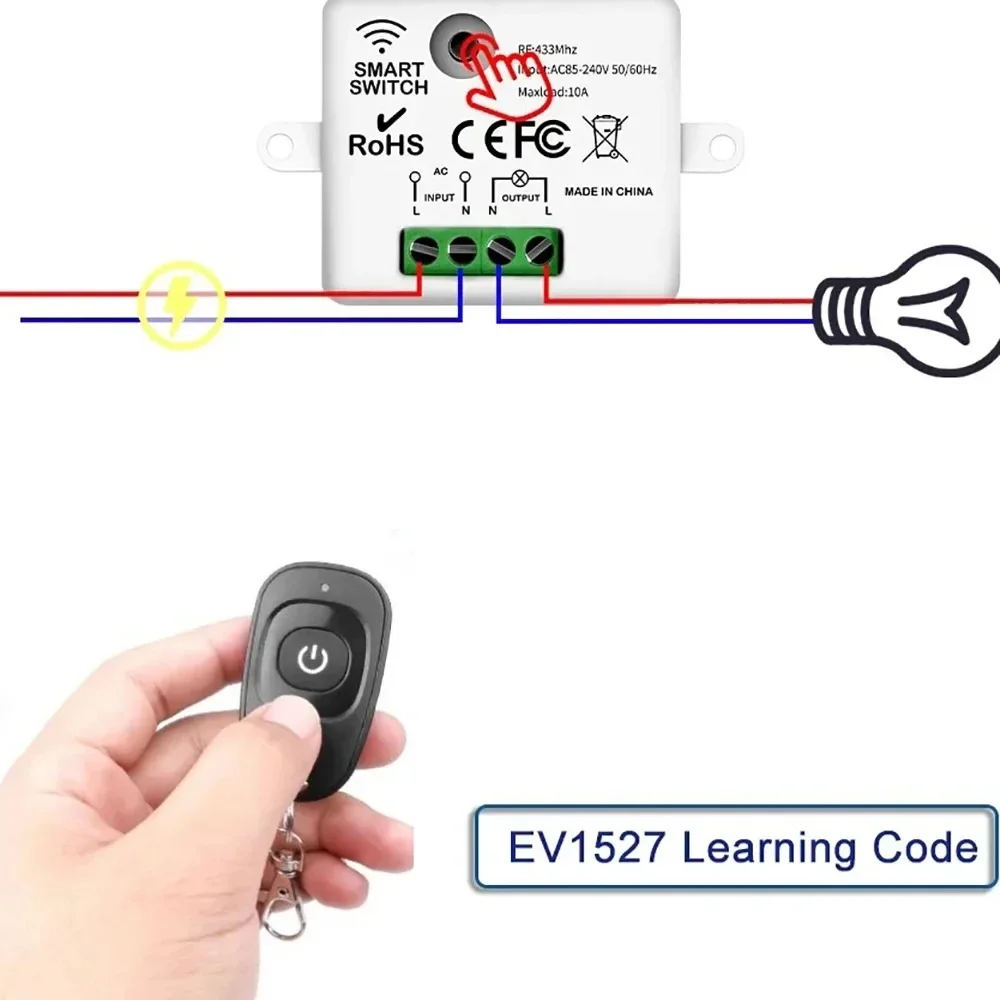

Wired Connection Way: Fixed Wiring Pillar

Output Terminal: L /N

L : Living line

N : Neutral line

Size:42*48*23mm

Color: White (Outside Shell)

Remote control Specification Data

Control Distance : 100 meters in open sapce

RF frequency : 433MHz

Support encoding : 1527 Leaning code

Size:60*30MM

Battery : CR2016 2pcs * ( include )

Working mode:

1. Inching mode: press the remote controltherelaywill connect, and thenrelease the remote controlto disconnect the relay;

2. Self-locking mode: press the remote controltherelaywill connect, and then press the remote controlagainto disconnect the relay;

3. Interlock mode: press the remote control key A toconnect the relay, and press the remote control key B to disconnect relay.

4. Delay mode: press the remote controltherelaywill connect, release the remote control and start timing. After 5S, 10S and 15S (3 gears), the relay will be automatically closed.

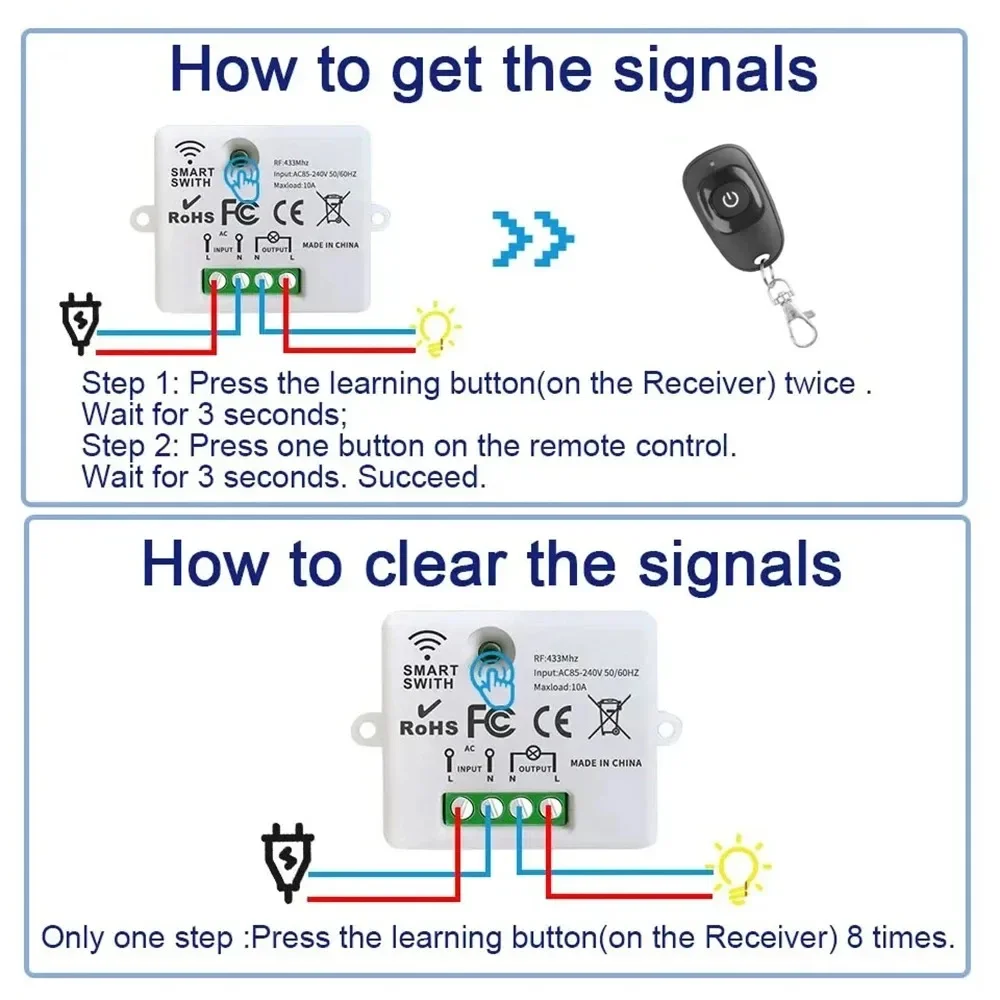

About Learning and clearing Method:

Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
