433.92MHz Universal Garage Door Receiver Remote Control Controller Switch 12V 24V 110V 220V 230V Relay 2CH Momentary Toggle

Products advantage

1，Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!
(The product is a general smart receiver and it can be matched with the majority of the wireless receiver in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code （HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc） and a part of customized remote controller.)

2，2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

3，The maximum number of remote controllers stored is 400, which is enough for the entire community to use.(using a customised remote control from scimagic)

4，It’s very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support – i’m always at your service!

5,Three working modes:Momentary, Toggle, Latched .

6,Two voltage options:AC DC 7-32V AC 85-250V

SECIFICATIONS:

1. Power supply: AC DC 7-32V AC 85-250V
2. Frequency: 433.92Mhz
3. Codes: can work with any fixed/learning/rolling codes
4. 2 channel
5. Working temperature :-40℃- + 80℃
6.Built in Aerial antenna : Reception range 10-50m

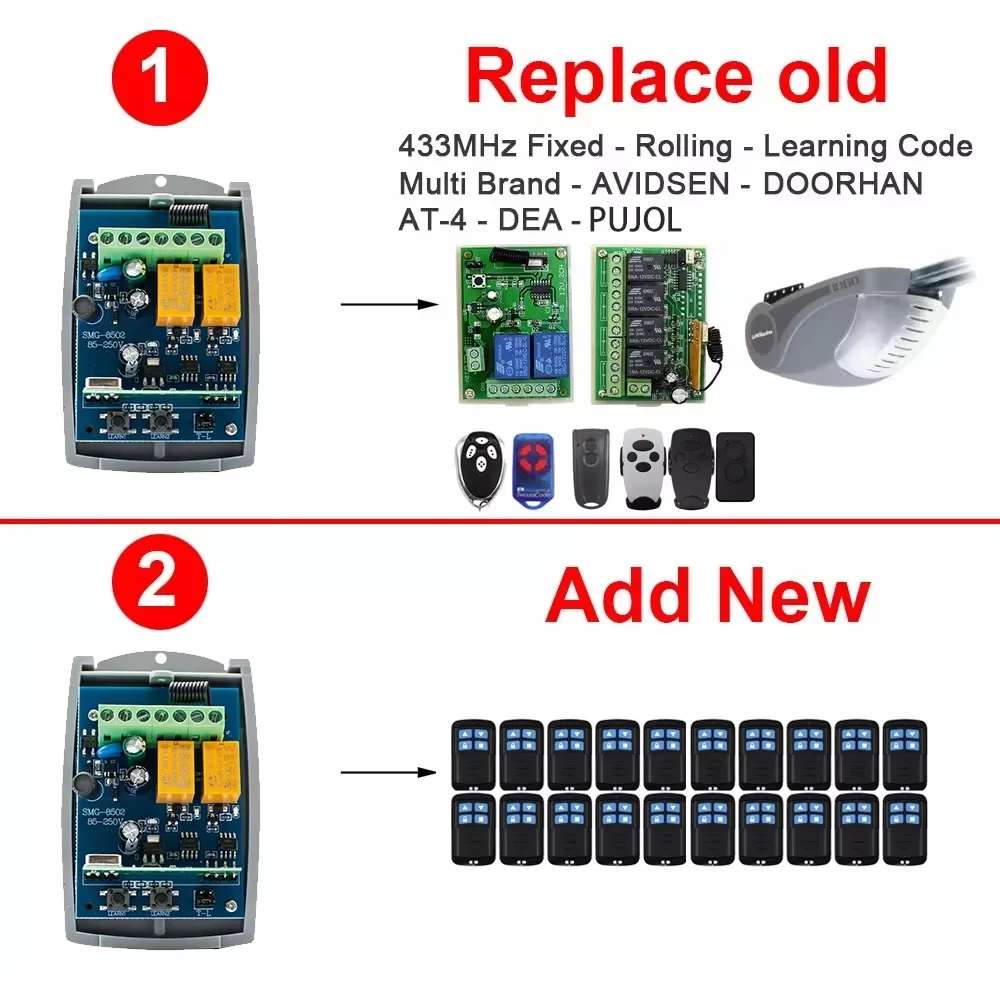

Replace old, add new

You can use it to replace your old receiver, or add our remote control to use.Compatible with many different brands of remote controls

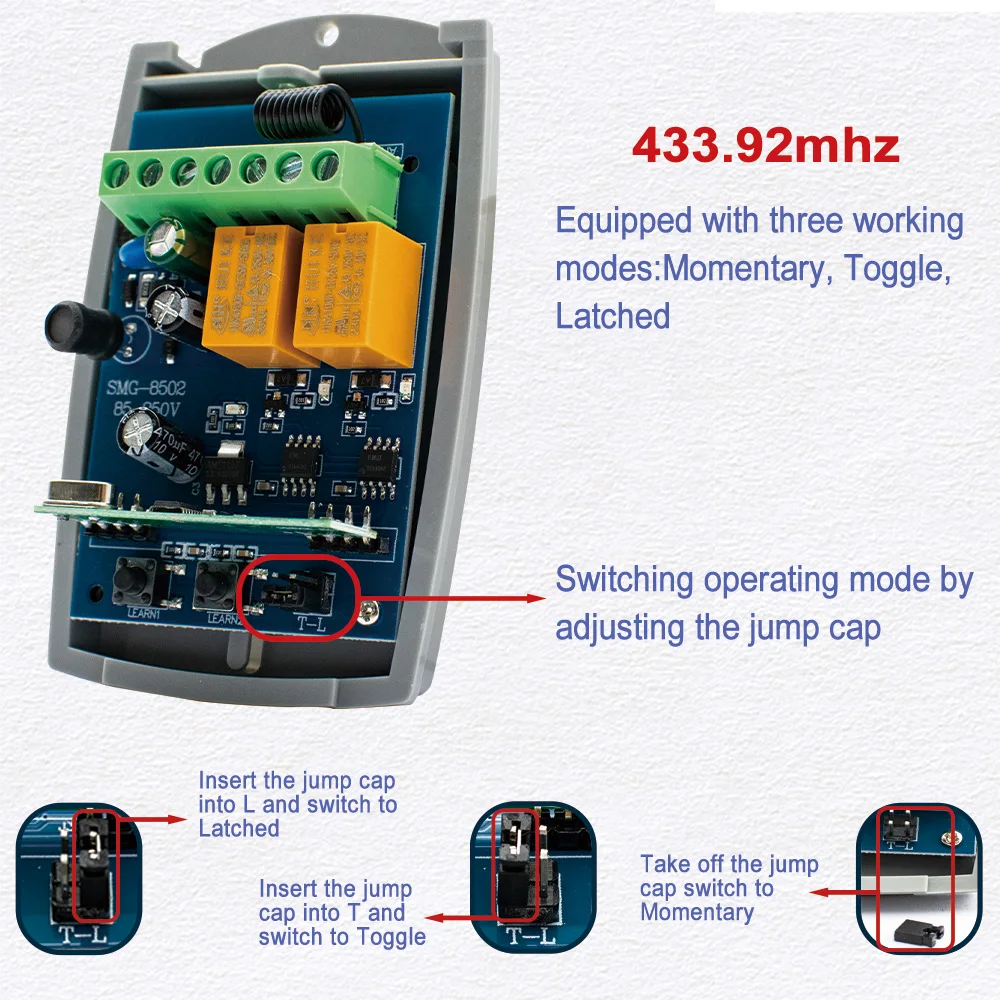

Three working modes:Inching, Toggle, Latched

Use jump caps to switch between different operating modes

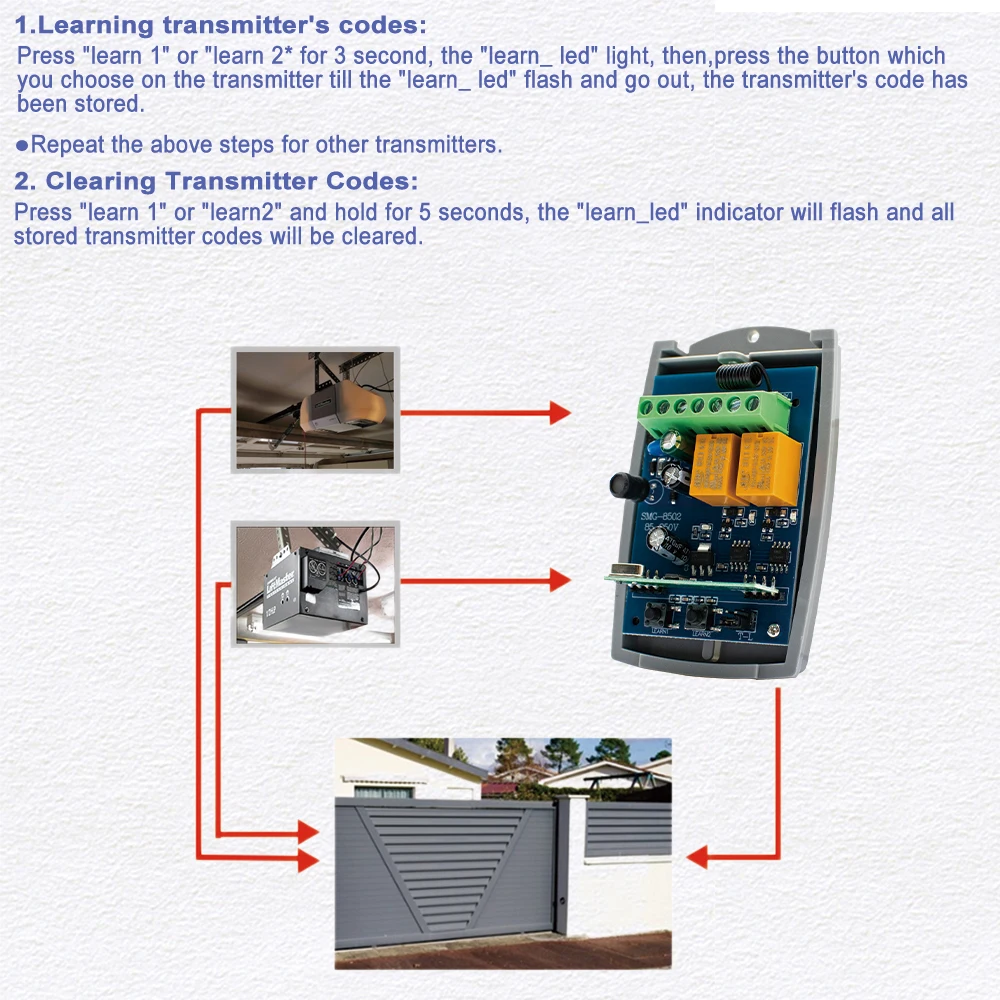

PROGRAMMING:

1.Learning transmitter’s codes:
Press “learn 1” or “learn 2” for 3 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.
• Repeat the above steps for other transmitters.

2. Clearing Transmitter Codes:
Press “learn 1” or “learn2” and hold for 5 seconds, the “learn_led” indicator will flash and all stored transmitter codes will be cleared.

NOTE:No indicator light flashes when first powered on

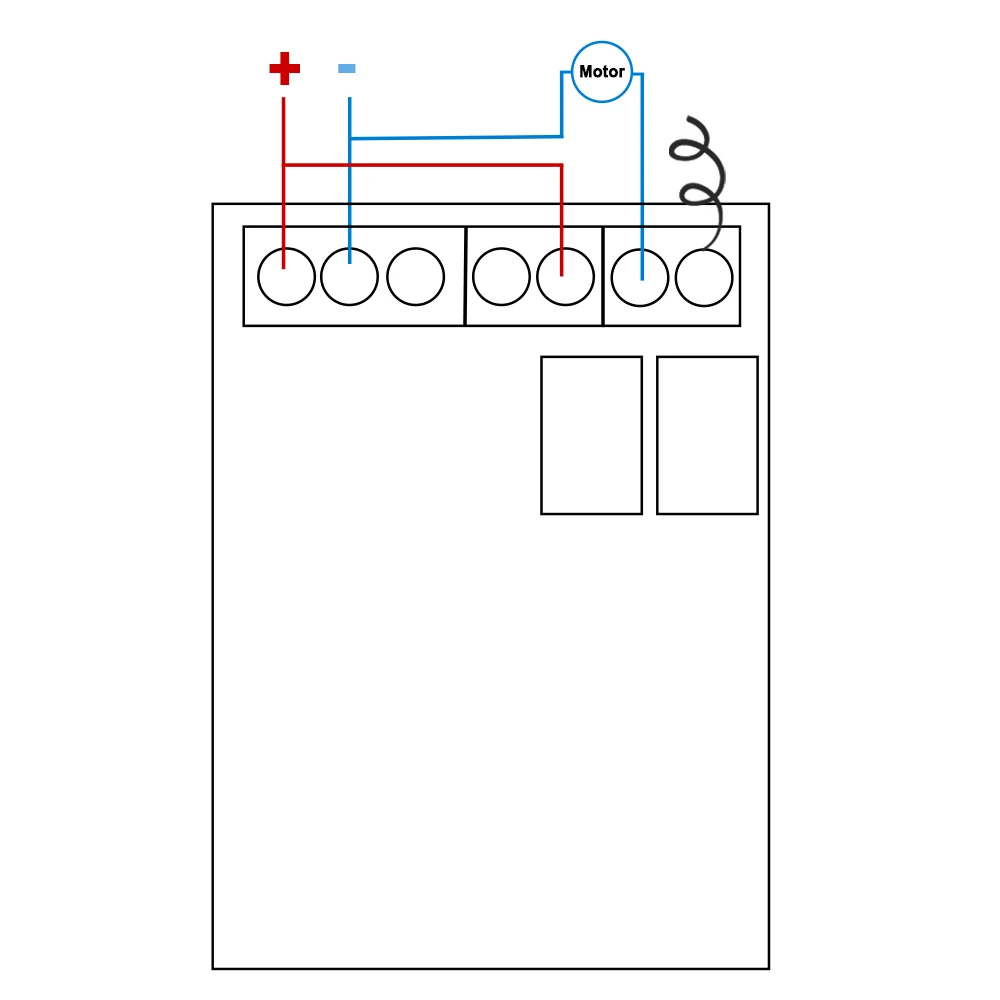

Circuit diagram
