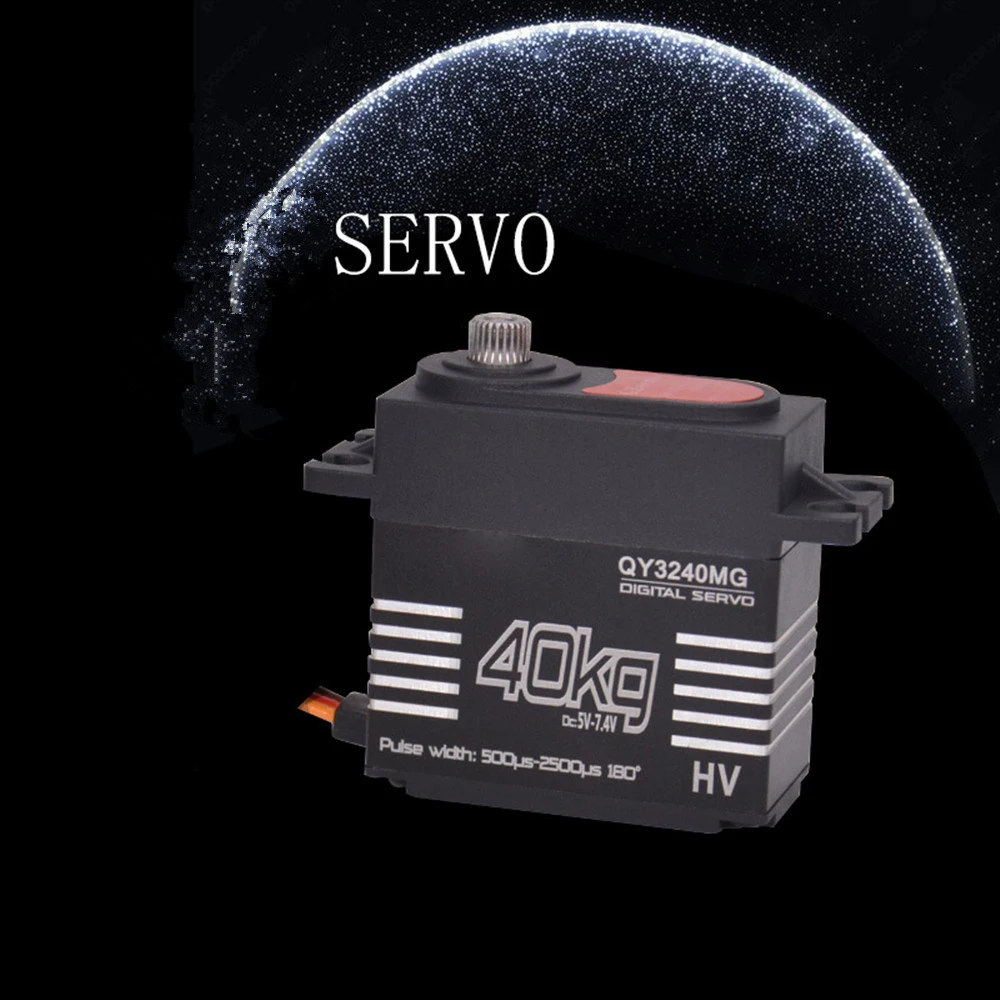

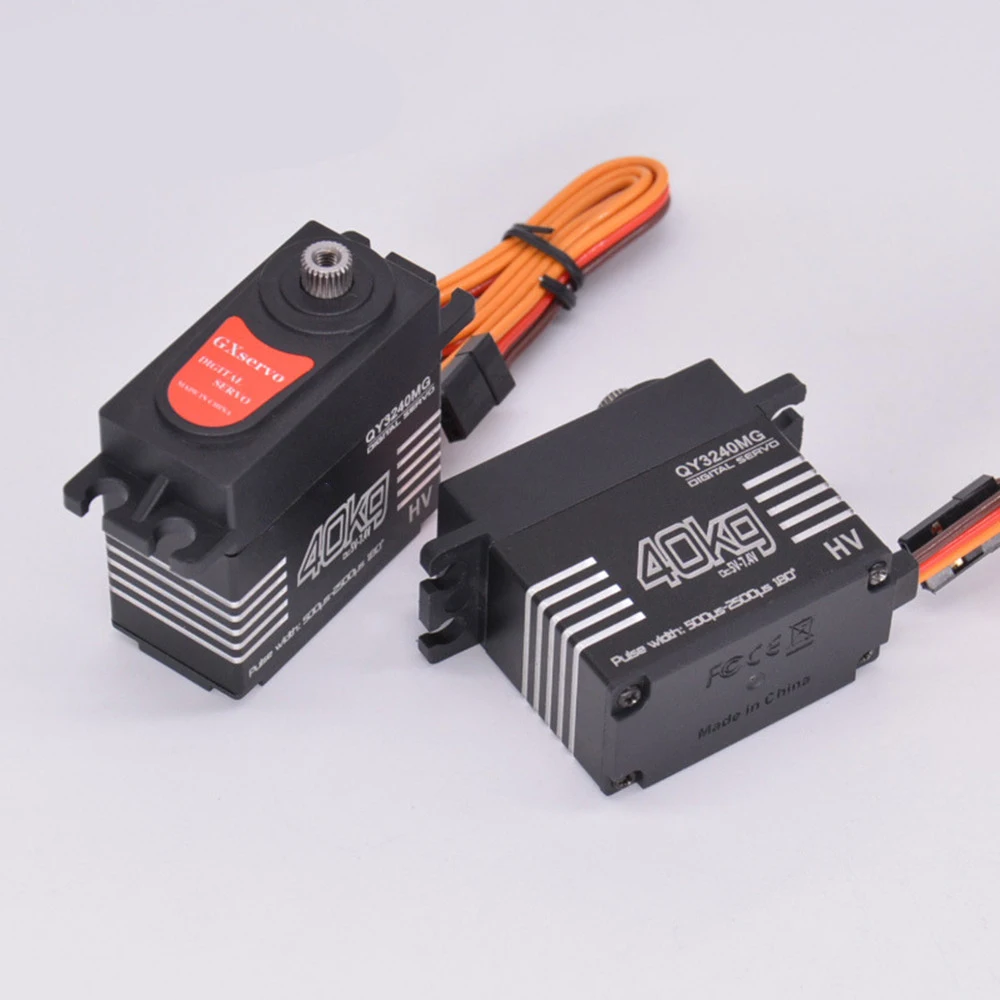

40KG Waterproof High-Speed Digital Servo High Torque Metal Gear With 25T Servo Arm Digital Servo Kit For 1/8 1/10 Scale RC Car
Features:

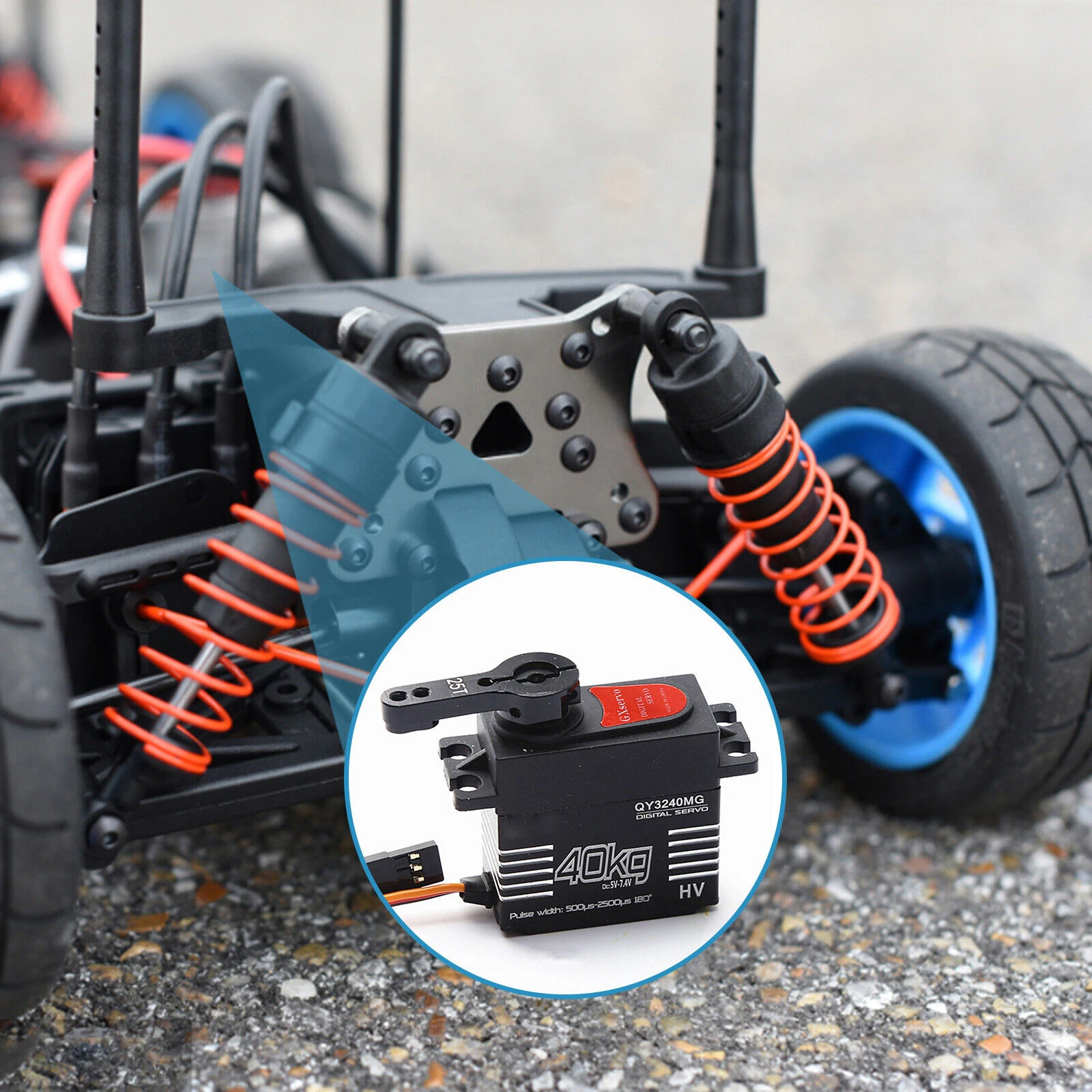

Digital servo with excellent performance, suitable for remote control cars and robots.
Precision gear, more wear-resistant, not easy to collapse and sweep teeth, etc.

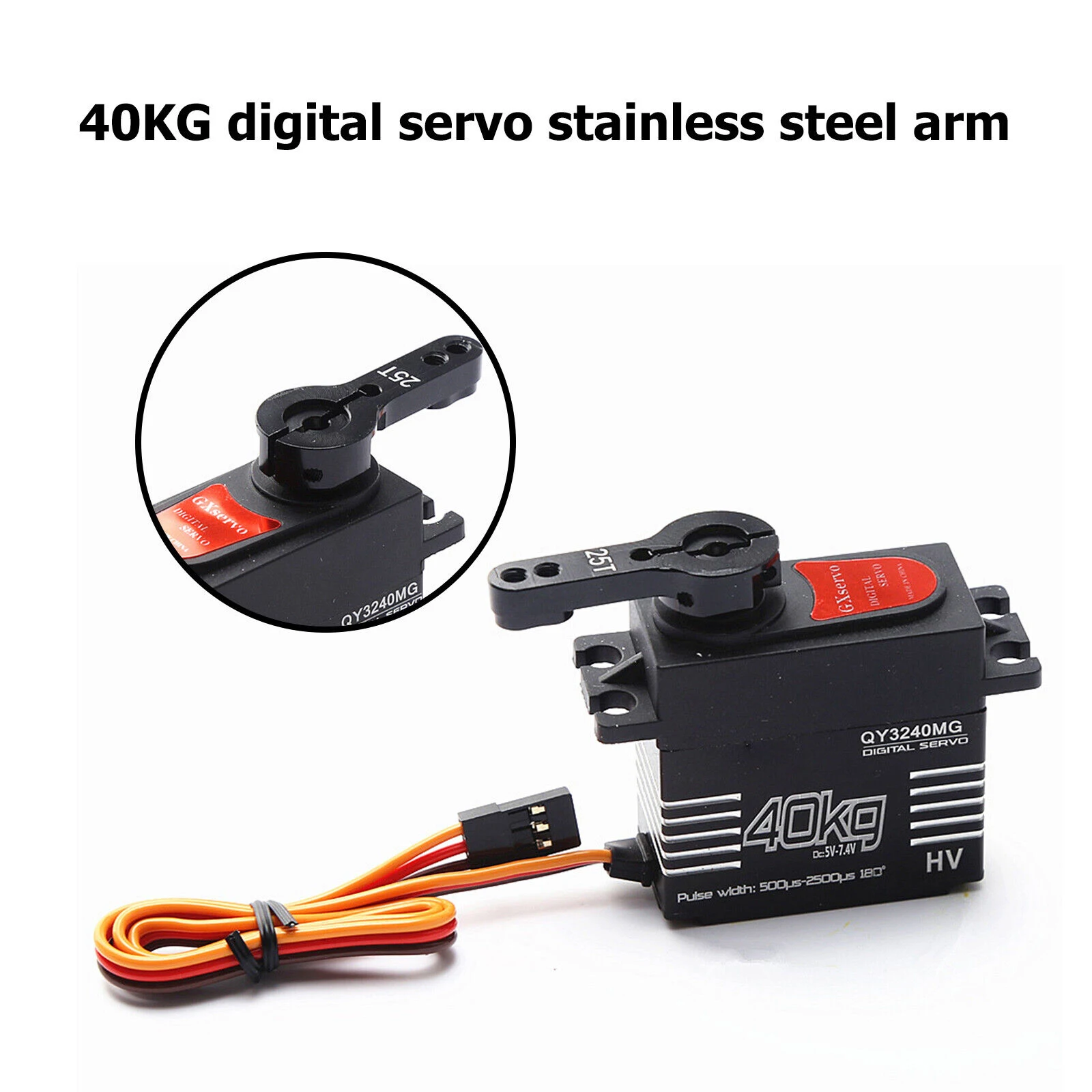

Including steering gear, steering gear accessories package, 25T metal steering gear arm.
Digital servo with excellent performance, suitable for remote control cars and robots.
Precision gear, more wear-resistant, not easy to collapse and sweep teeth, etc.
Including steering gear, steering gear accessories package, 25T metal steering gear arm.
Specifications:
Project: Digital Servo
Pulse width: 500μs-2500μs=180°
Running speed: (5V): 0.22sec60°
Working speed: (6V) 0.21sec60°
Running speed: (7.4V) 0.19sec60°
Stall torque (5V): 31kg.cm
Stall torque (6V): 35kg.cm
Stall torque (7.4V): 40kg.cm
Dead time: 3μs
Ball bearing: 2BB
Net Weight: 73g
Wire length: 300mm
Size: 20.2x40x40.5mm
Operating frequency: 1520μs/330Hz
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

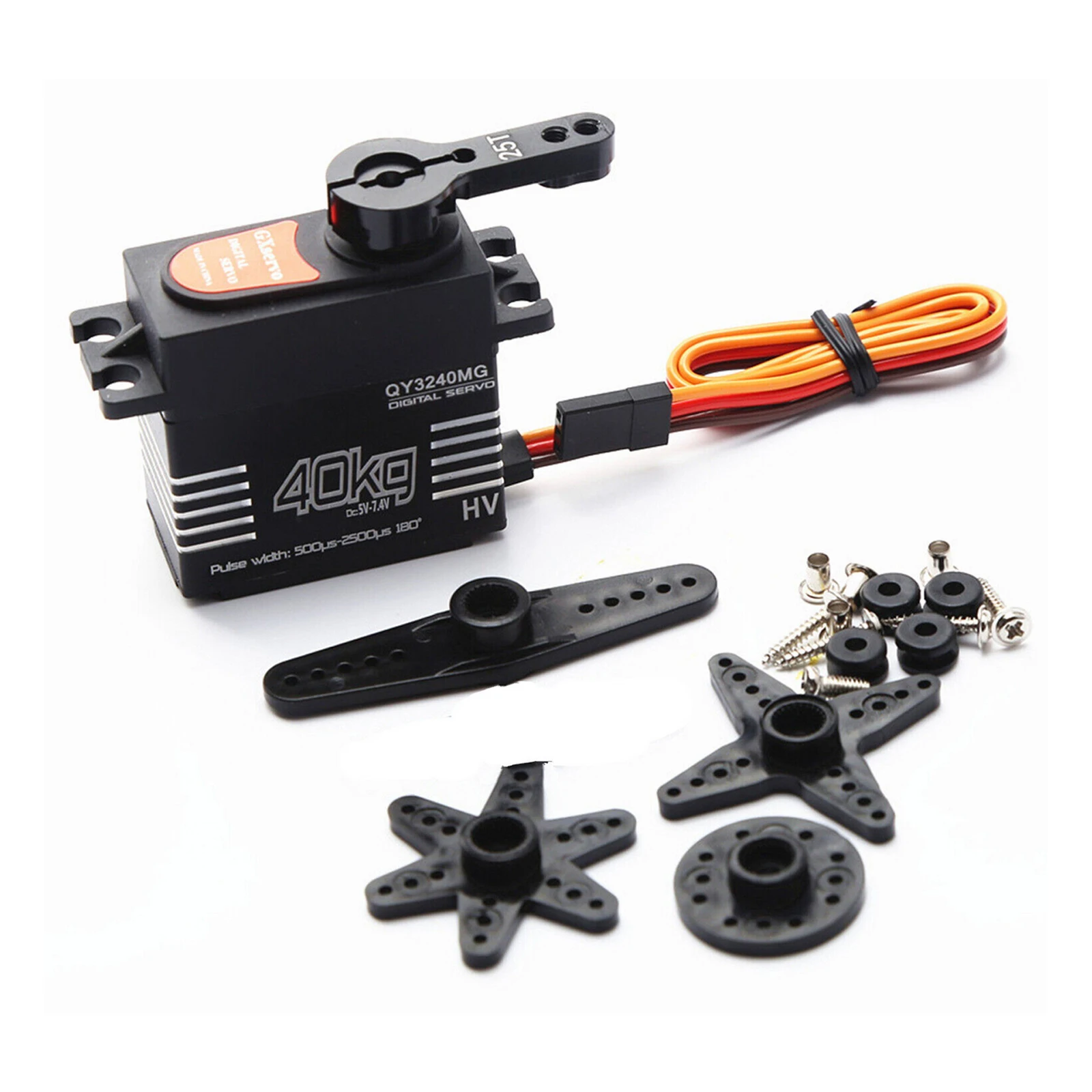

Package includes:
1 X 40KG Digital Servo
1 X 25T Servo Arm
1Set X Parts
