2pin 8mm COB LED Strip to Strip LED Connectors Strip to Wire Connection Solderless Extension for 8mm COB LED Strip Lights

2pin 8mm COB LED Strip to Strip LED Connectors Strip to Wire Connection Solderless Extension for 8mm COB LED Strip Lights

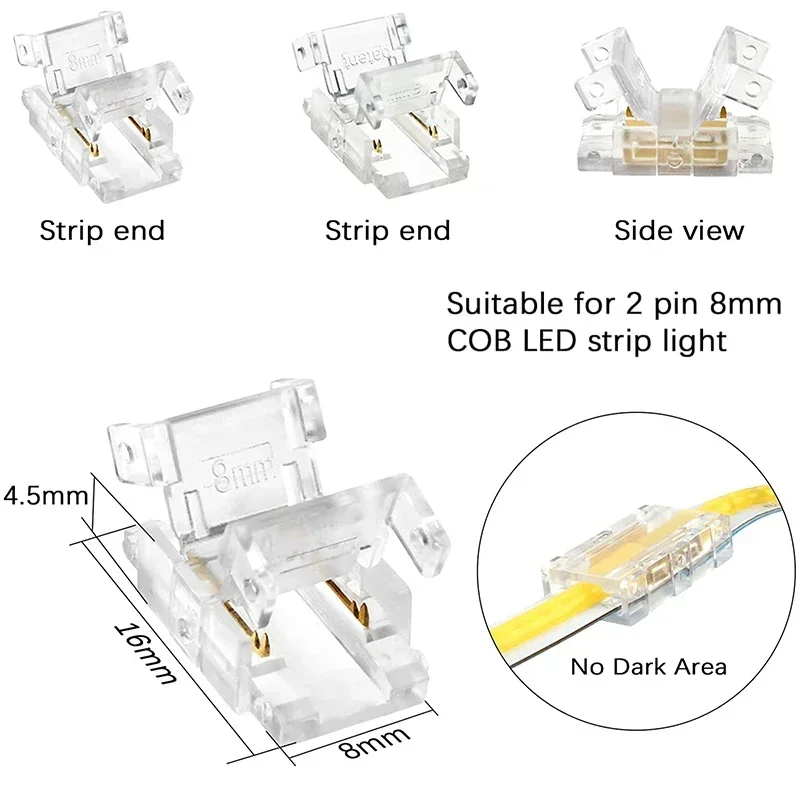

• 2pin 8mm strip to strip

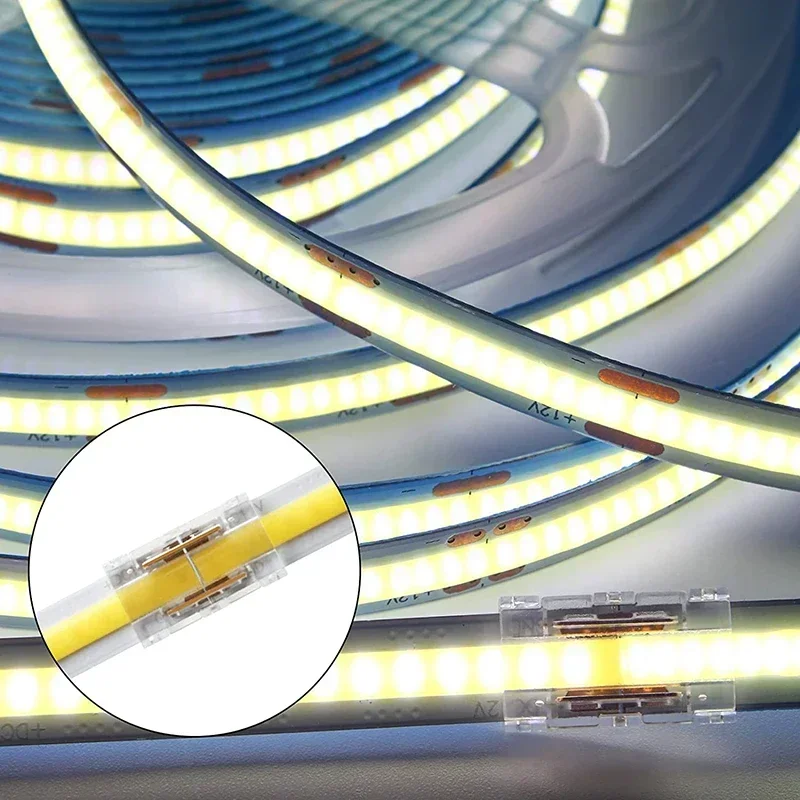

  【Appiaction】: These upgraded mini 2 pin COB LED connectors are suitable for 8mm DC12V/24V flexible COB LED strip lights. With it, you can quickly connect two COB LED strips without soldering.

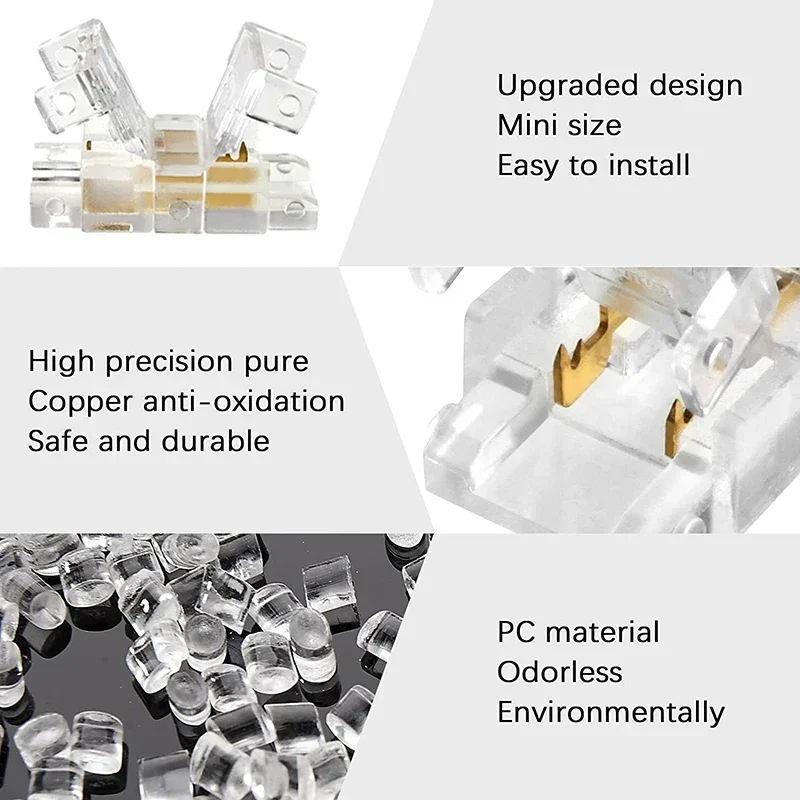

  【Premium material】：The upgraded mini COB LED connector is made of PC material and pure copper, which is durable, transparent and beautiful. Voltage: 0-36V; Current: 5A.

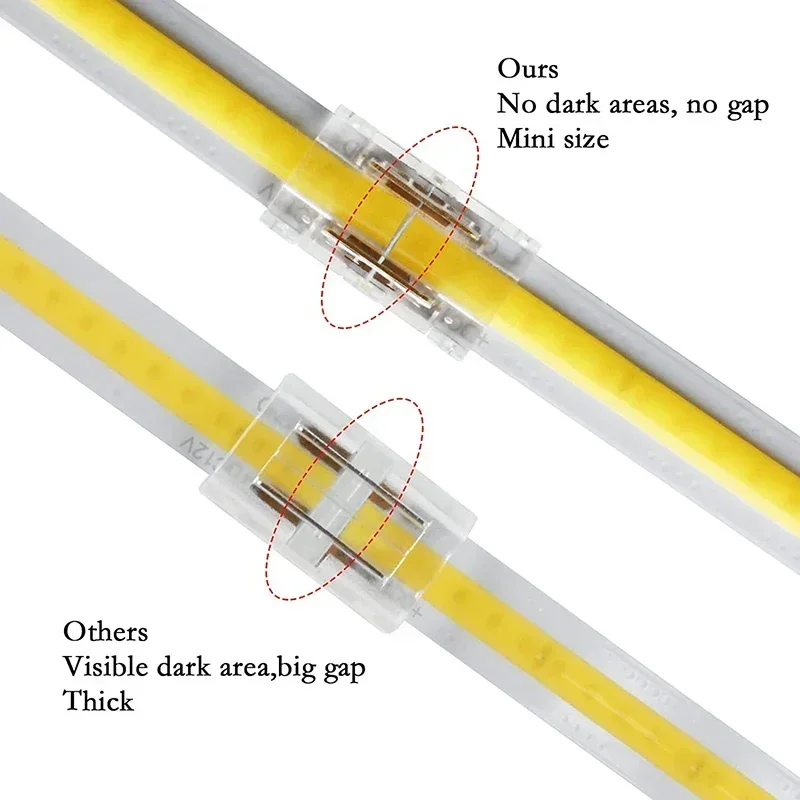

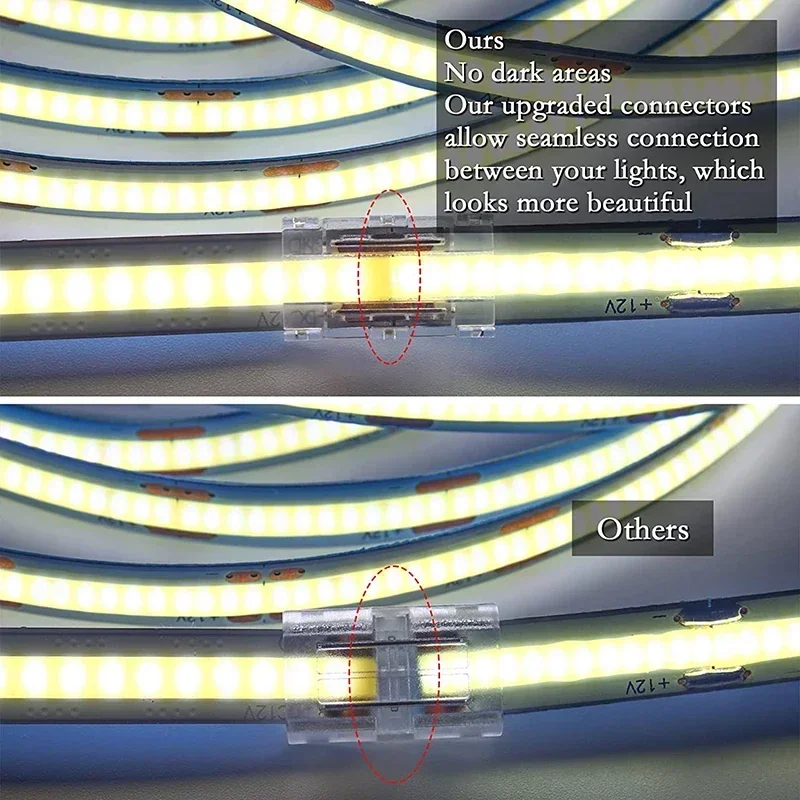

  【Product feature】: It can be easily opened by hand without tools and can be reused. The mini design is just right for the light bar and will not fall off. The pure copper material makes it more conductive and will not make poor contact. There is no dark area after connecting the two light strips tightly.

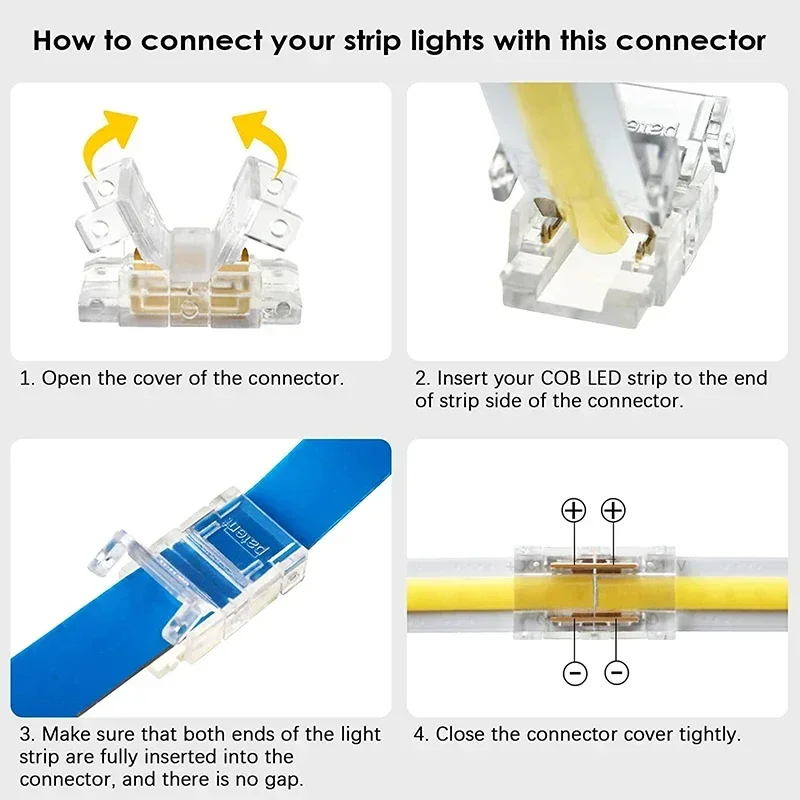

  【Easy to use】: Open the connector cover to 60 degrees by your hand, then insert your COB LED strip into both ends of the connector, make sure both ends of the strip are fully inserted into the connector, no gaps, and the positive and negative connections are correct, and finally close the connector cover.

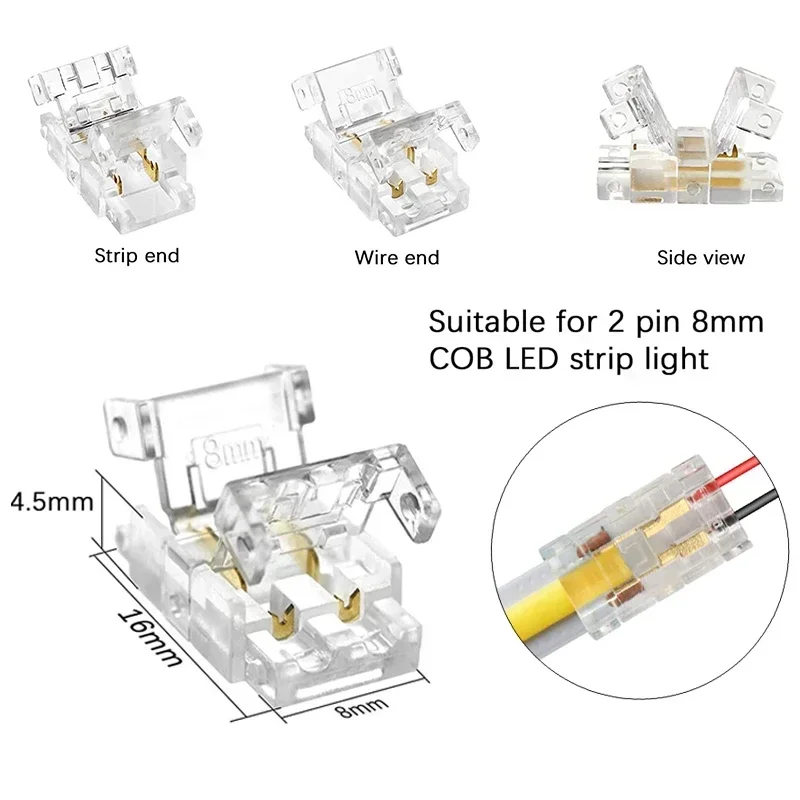

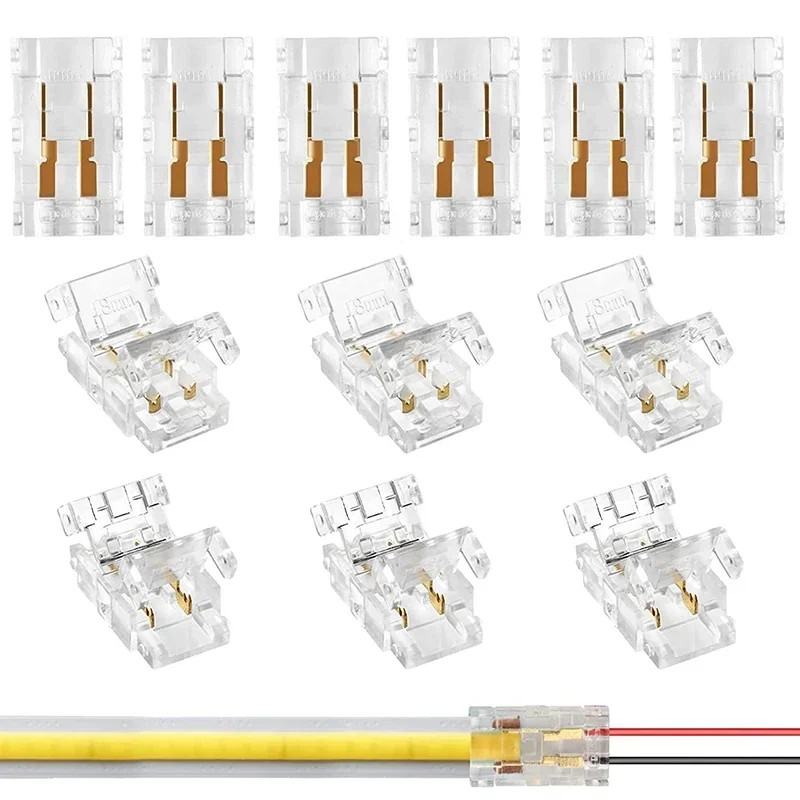

  2pin 8mm strip to wire

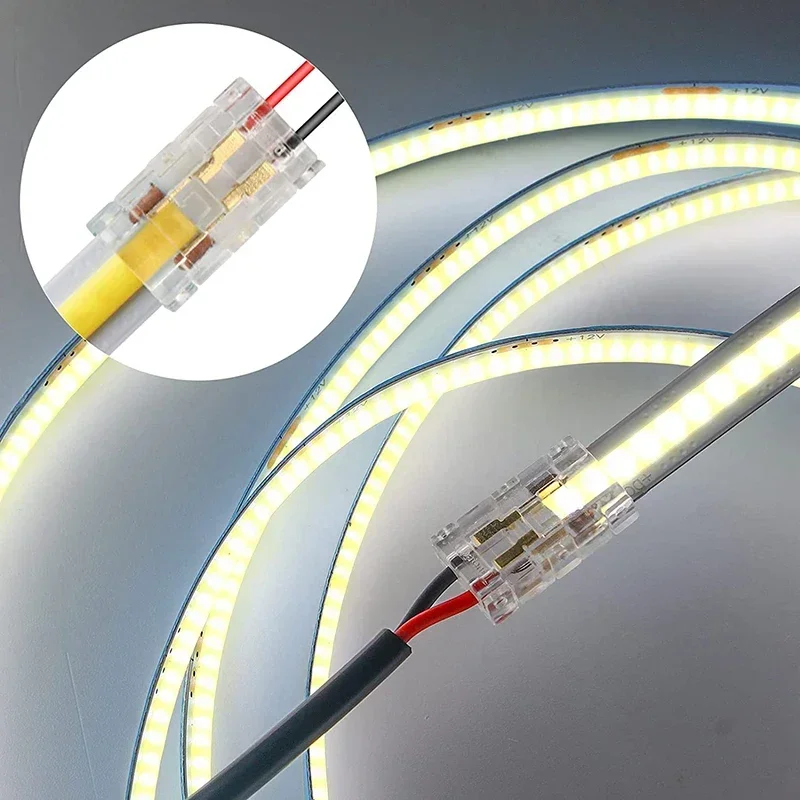

  【Appiaction】: These upgraded mini 2 pin COB LED connectors are suitable for 8mm DC12V/24V flexible COB LED strip lights. With it, you can quickly connect your COB LED strips to wire without soldering.

  【Premium material】：The upgraded mini COB LED connector is made of PC material and pure copper, which is durable, transparent and beautiful. Voltage: 0-36V; Current: 5A. Suitable for 22AWG 2 pin wire.

  【Product feature】: It can be easily opened by hand without tools and can be reused. The mini design is just right for the light bar and will not fall off. The pure copper material makes it more conductive and will not make poor contact. There is no dark area after connecting the two light strips tightly.

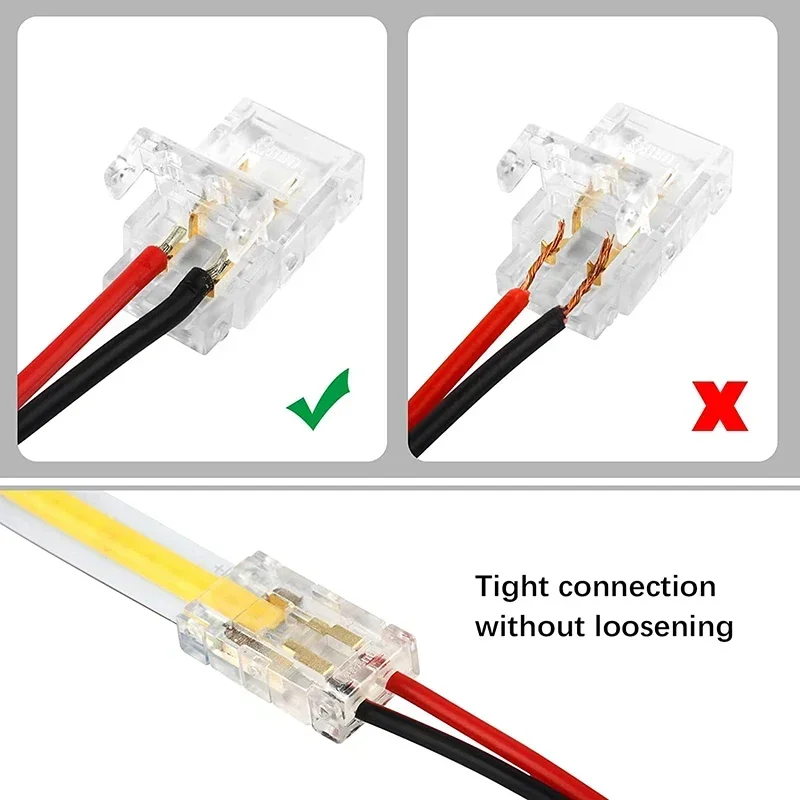

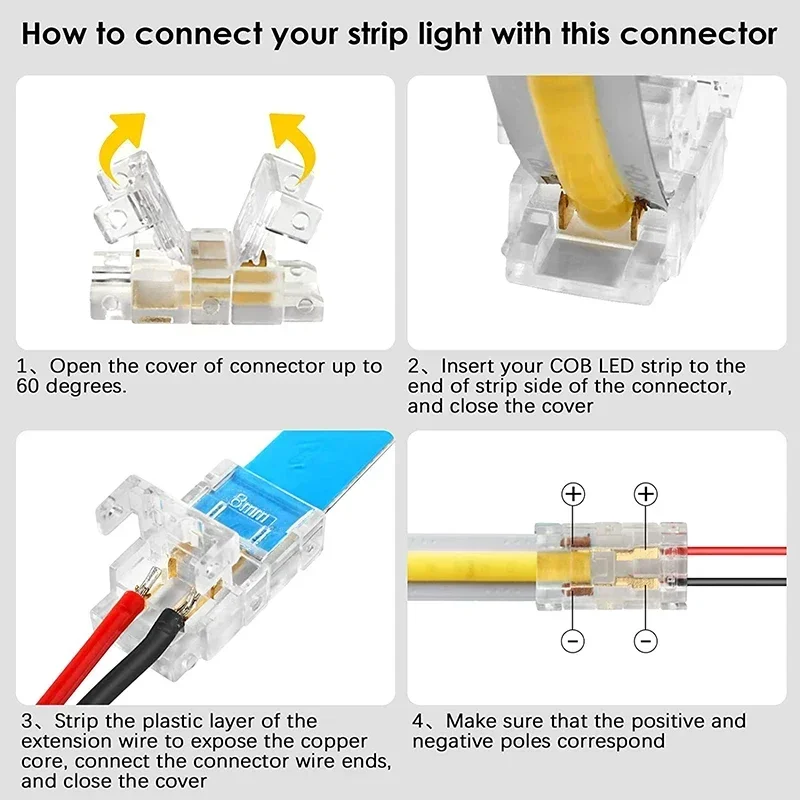

  【Easy to use】: Open the connector cover to 60 degrees by your hand. Insert your COB LED strip to the end of strip side of the connector, and close the cover. Strip the plastic layer of the extension wire to expose the copper core, connect the connector wire ends, and close the cover. Plesae make sure the positive and negative connections are correct.

  Rated voltage(V): 0-36V

  Rated current(A): 5A

  Fitted cable gauge(mm²): 0.2mm²/0.35mm²

  Fitted cable gauge(AWG): 24AWG/22AWG

  Fitted cable OD(mm²): Φ1.5mm-1.6mm

  Flame class: UL-94-V0

  Working temperatur: -20℃ – 60℃
