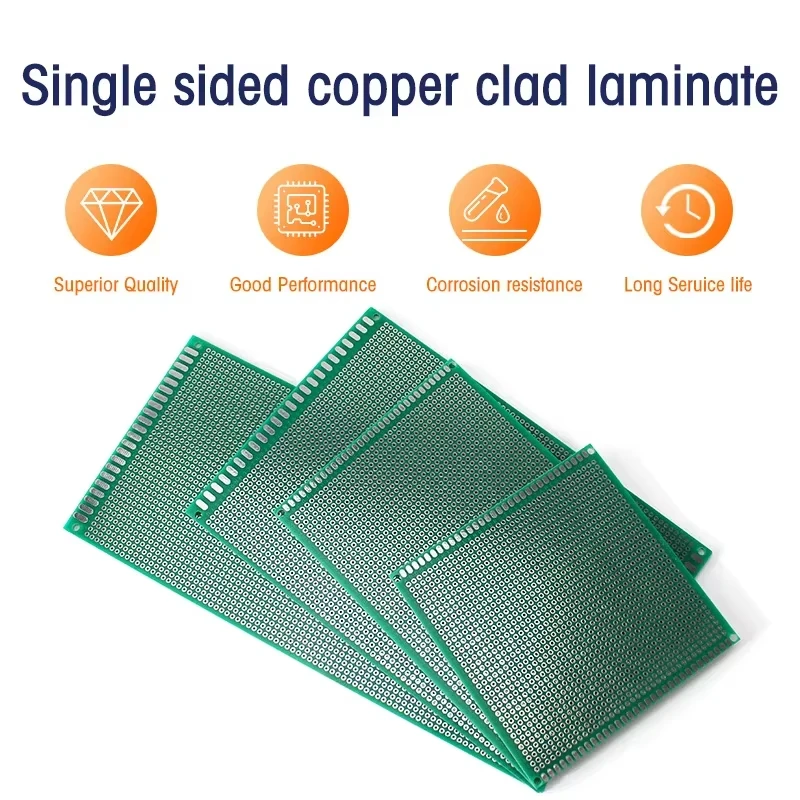

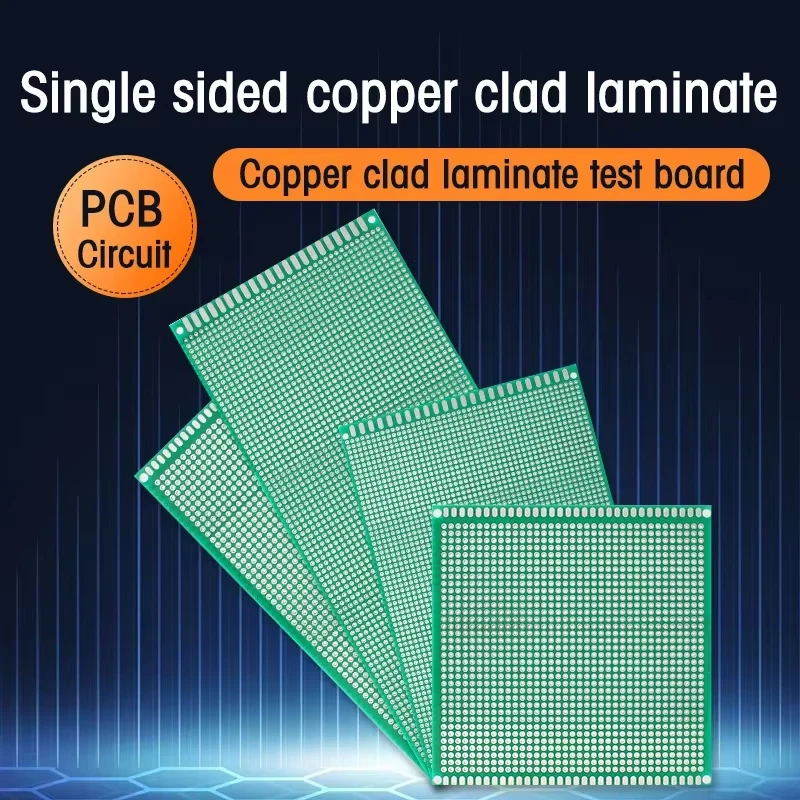

1PCS 8×12 9×10 9×15 10×10 10×15 10×22 12x18cm Single Side PCB Prototype Board Printed Circuit Board DIY Universal PCB

1PC 8×12 9×10 9×15 10×10 10×15 10×22 12x18cm Single Side PCB Prototype Board Printed Circuit Board DIY Universal PCB

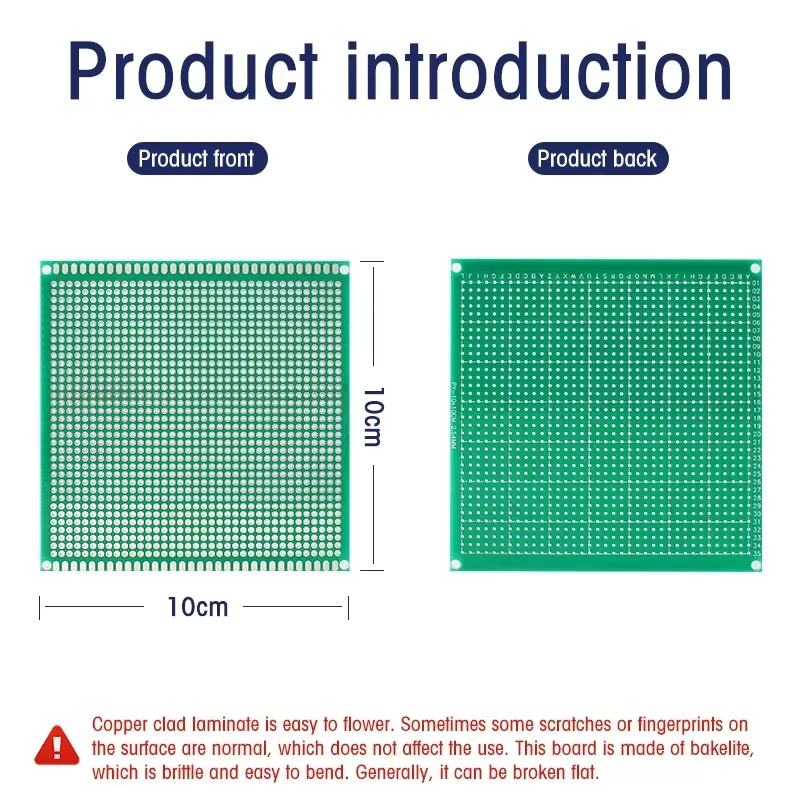

Product introduction:

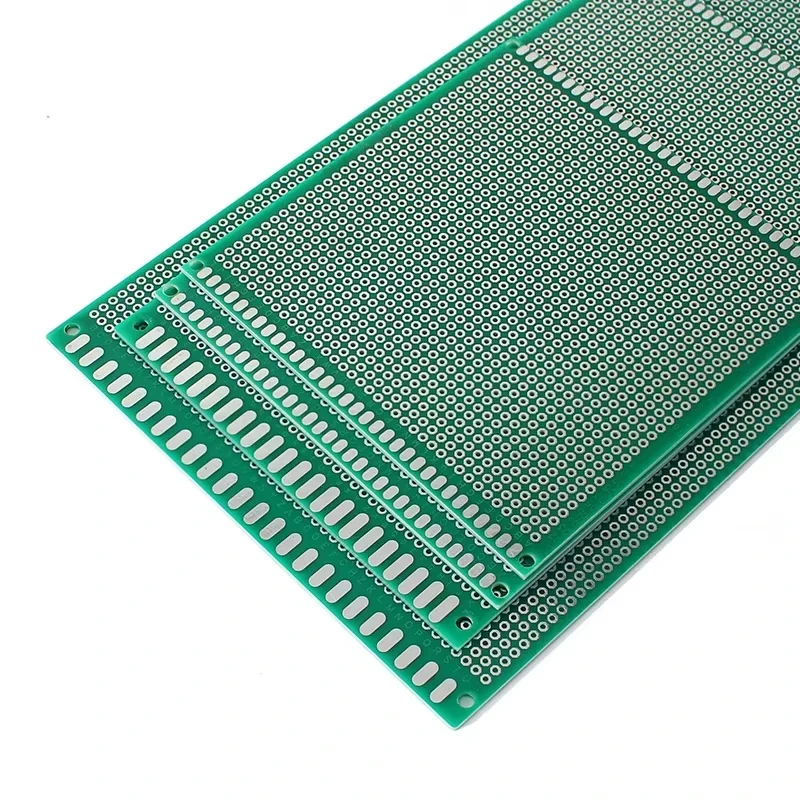

This is a general-purpose circuit board. Usually, the board is covered with circular independent pads with standard IC spacing (2.54MM). It seems that the entire board is a small hole, so it is also called a “hole board”. Compared with professional PCB printed circuit boards, perforated boards have the characteristics of low cost, convenient use and flexible expansion.

Product function:

1. The development board is for learning, and the development board has designed common circuits for learners.

You don’t have to make your own circuit boards, you don’t have to purchase components and solder them yourself.

2. The development board is mostly related to the microprocessor. The development board will design some typical programs for various typical applications, and use the learners to test and learn.

3. The development board can effectively improve the learning efficiency and shorten the research and development progress.

Product parameters:

Insulation resin: epoxy resin

Reinforcing material: glass fiber cloth

Aperture: 1. 0MM

Hole spacing: 2.54MM

Plate thickness: 1. 6MM

Number of layers: tin spray on one side

Sheet: FR-4 fiberglass board
