For Citroen C2 Hatchback 2003-2010
For Citroen C3 Hatchback 2002-2009
For Citroen C3 Pluriel Cabriolet 2003-2010
For Citroen C4 Hatchback 2004-2010
For Citroen C5 Sedan 2004-2008
For Citroen C5 Universal 2008+
For Citroen C6 Hatchback 2005-2012
For Citroen C8 Minivan 2002-2014
For Citroen Jumper Kombi Minivan 2014+
For Citroen SpaceTourer Business (VE) Minivan 2016+
For Peugeot 1007 Hatchback 2005-2010
For Peugeot 2008 SUV 2013+
For Peugeot 208 Hatchback 2012+
For Peugeot 3008 SUV 2009-2017
For Peugeot 301 Sedan 2012+
For Peugeot 307 2000-2010
For Peugeot 308 2007-2015
For Peugeot 406 1995 – 2005
For Peugeot 407 2004 – 2010
For Peugeot 408 Sedan 2010-2015
For Peugeot 508 2011-2016
For Peugeot 607 Sedan 2000-2010
For Peugeot 806 Minivan 1994-2002
For Peugeot 807 Minivan 2002-2010
For Peugeot RCZ Coupe 2010-2015
► Video Signal Compatibility:The video signal must be compatible with your device. Common signals are AHD or CVBS (most in-car displays allow switching between CVBS and AHD modes).
►Connector Compatibility:Ensure the connector type matches your device (e.g., 4-PIN or RCA).
►This product outputsCVBS or AHD signal (switchable), with RCA connector , with parking line on or off (switchable), The image can be flipped left and right
►Signal Switching Guide:For displays requiring signal: Factory Settings > Reversing (Image) Settings > Select signal

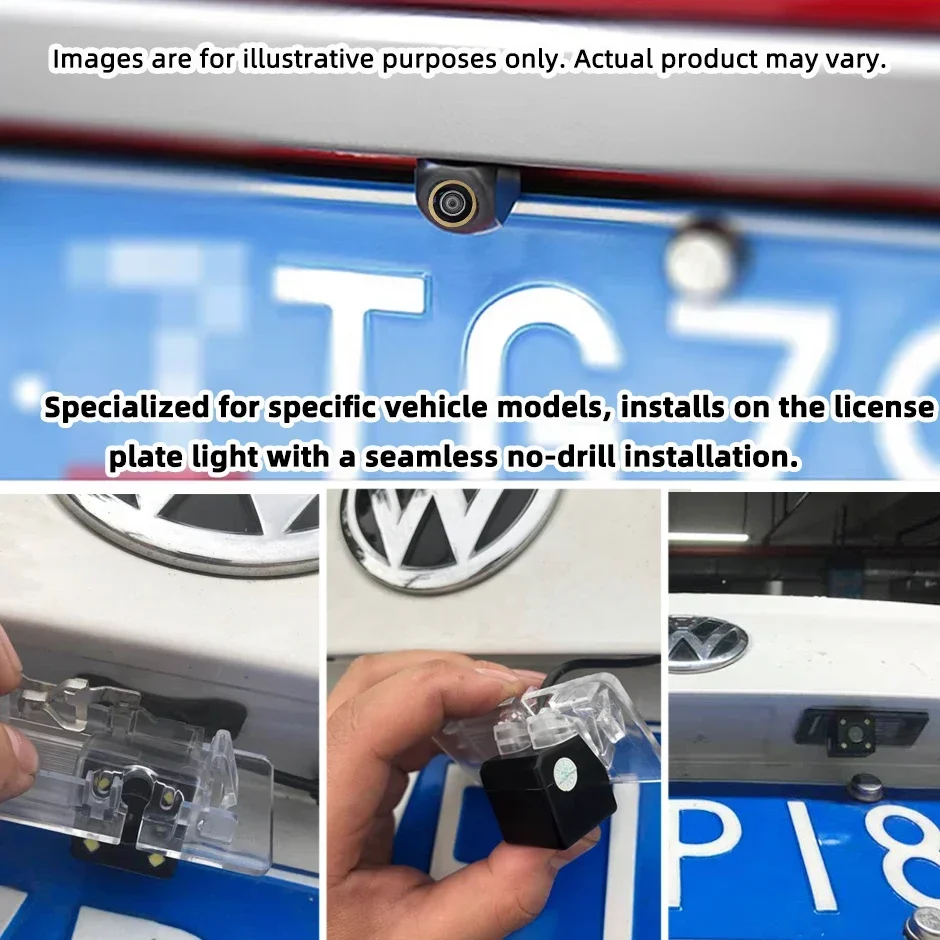

►Direct replacement of the license plate light cover, damage-free installation, stylish and elegant.

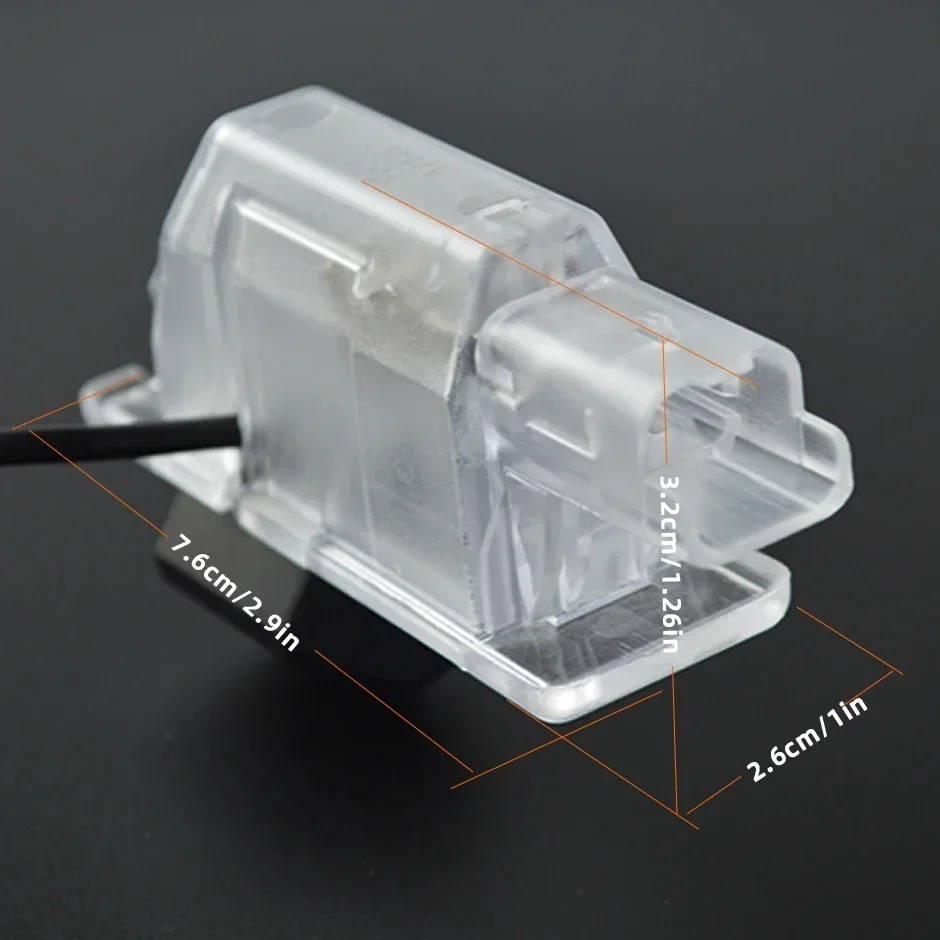

► Dimensions of license plate light positions may vary across countries/regions for the same vehicle model. We are unable to verify all variations. Please check whether the specific bracket fits your vehicle. Thank you for your understanding.

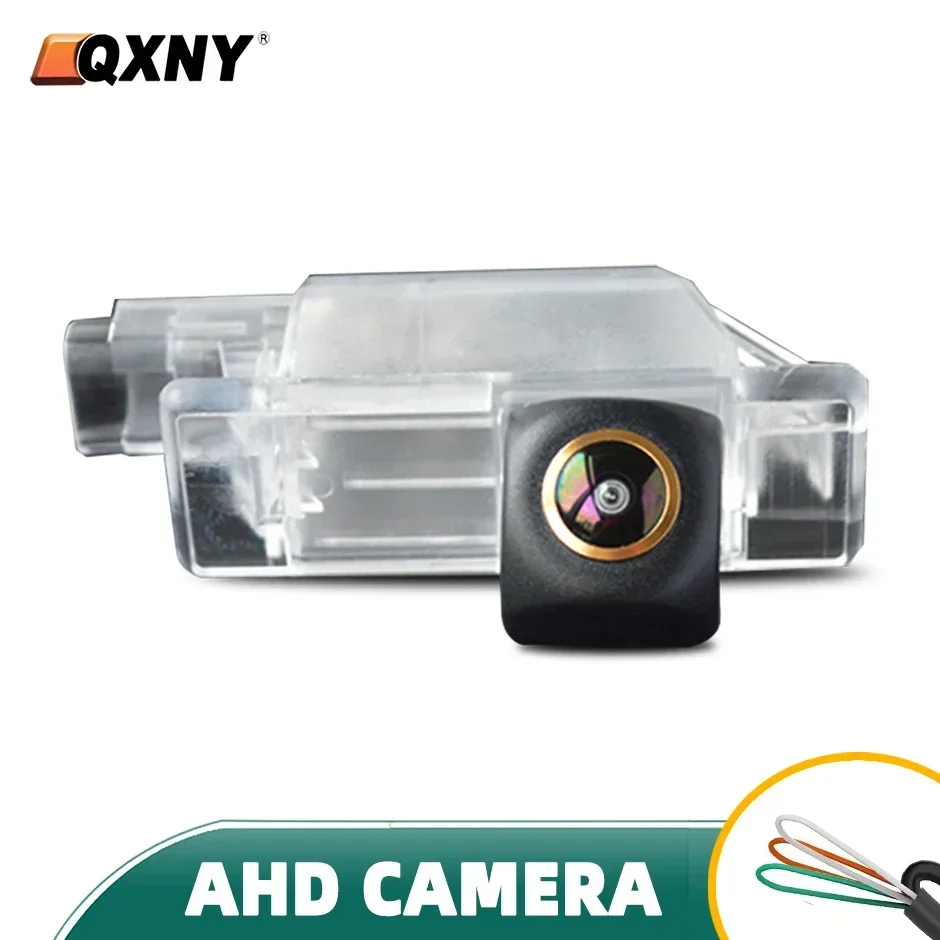

AHD Camera Feature :

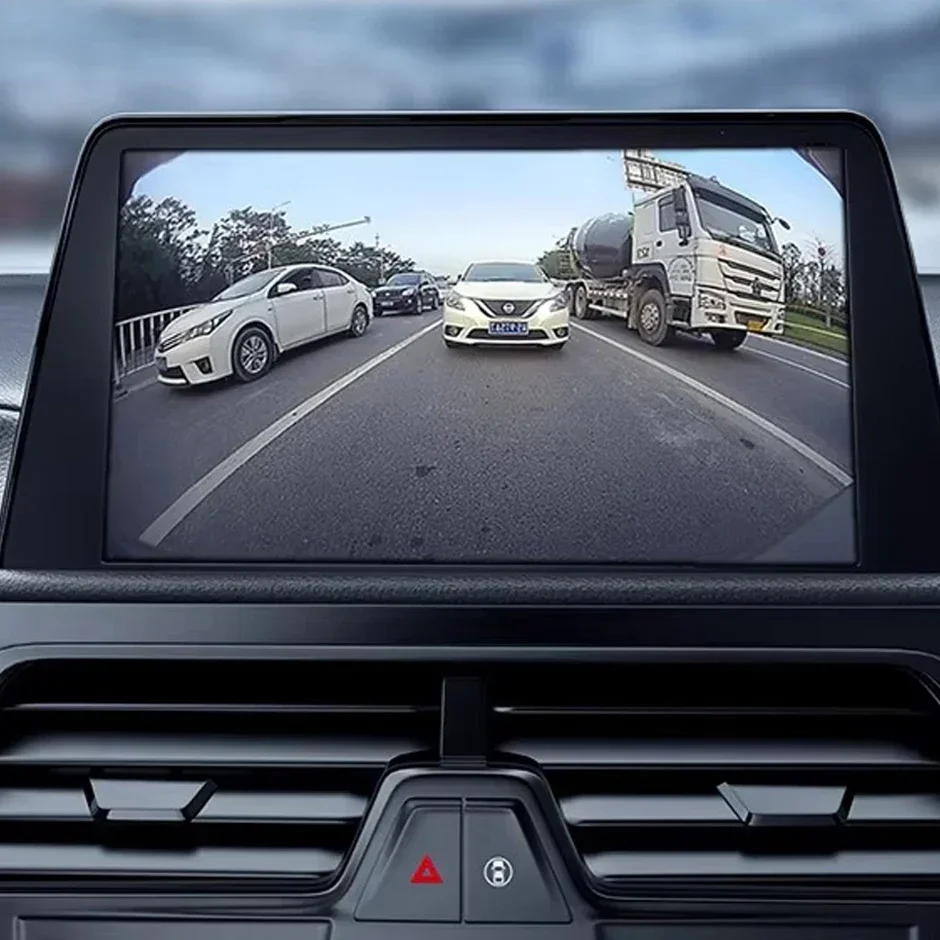

* Viewing angle: Real 170 Degrees Visible Range .
* Signal format: NTSC
* Image resolution: 200W pixels
* Video output: AHD, CVBS signal switchable
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W
Package includes:
1 x Rear View Camera
1 x 6m Video Cable
1 x 1m Power Cable
1 x screwdriver
2 x brackets (1 of which is mounted on the camera)
► 2 types of brackets are included: Bracket B is universal type, and Bracket A is designed specifically for license plate lights.

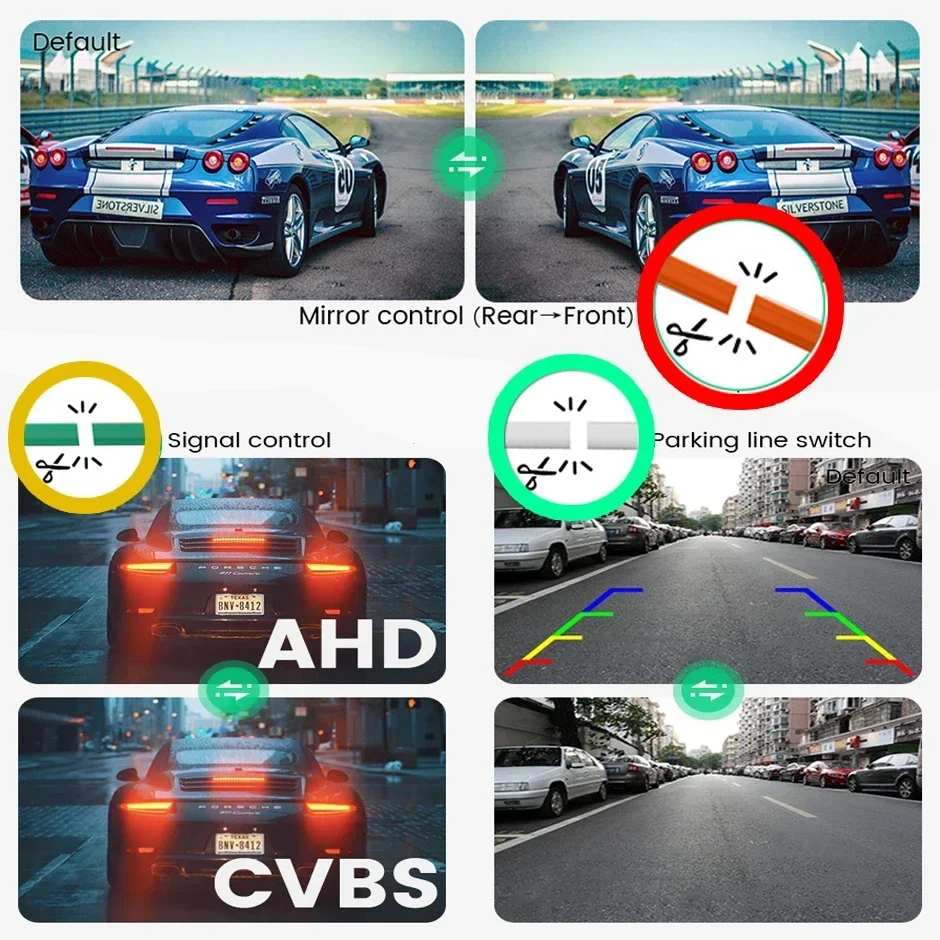

（Cut）Cable Control Functions:
► Green Cable: AHD/CVBS signal switching
► White Cable: Parking line on/off
► Orange Cable: Image flip function
Starlight Night Vision Technology:
Empowers cameras to capture high-definition color imaging in near-darkness (0.001 lux). Maintains clear visibility of critical details like vehicles, streetlights, and environmental features even under ultra-low illumination, eliminating traditional monochrome night vision limitations.
Key Advantages:
►Full-color imaging in extreme low-light conditions
►Enhanced object recognition
►0.001 lux minimum illumination threshold
AHD Technical Highlights:
►HD real-time transmission (25fps@1080P/720P)
►500m coaxial cable transmission range
►Seamless integration with legacy analog systems
►<1ms latency for mission-critical monitoring
Q1: No Signal/Black Screen Detection
Symptoms:
“No Signal” alert
Persistent black screen
Troubleshooting Protocol:
► Power Verification
Confirm 12V DC power delivery to camera (test with multimeter at B+ terminal)
Bypass vehicle wiring: Connect directly to battery terminals for bench test
► Signal Source Validation
Check display input mode: Disconnect green control wire to force CVBS mode
Cycle power after signal switching (AHD↔CVBS transition requires reboot)
► Legacy System Check
Test CVBS compatibility: Connect to TV’s RCA input (NTSC standard verification)
Q2: Monochrome Display Issue
Observed Behavior:
Loss of color rendering
Grayscale imaging
Diagnostic Procedure:
► Signal Standard Alignment
PAL/NTSC mismatch resolution:
AHD 1080P cameras: Set to PAL (50Hz)
CVBS analog cameras: Configure NTSC (60Hz)
