100W GaN Charger Convertible Plug Folding Pin QC3.0 USB-A Dual Type C PD Fast Charging Adapter for Notebook Mobile Phone Tablet

100W GaN Charger USB PD 100W Fast Charging Dual USB C PD Dual USB 3.0 5Gbps Date Transfer Quick Charge for Xiaomi Samsung Mac

Product name: 100W charger

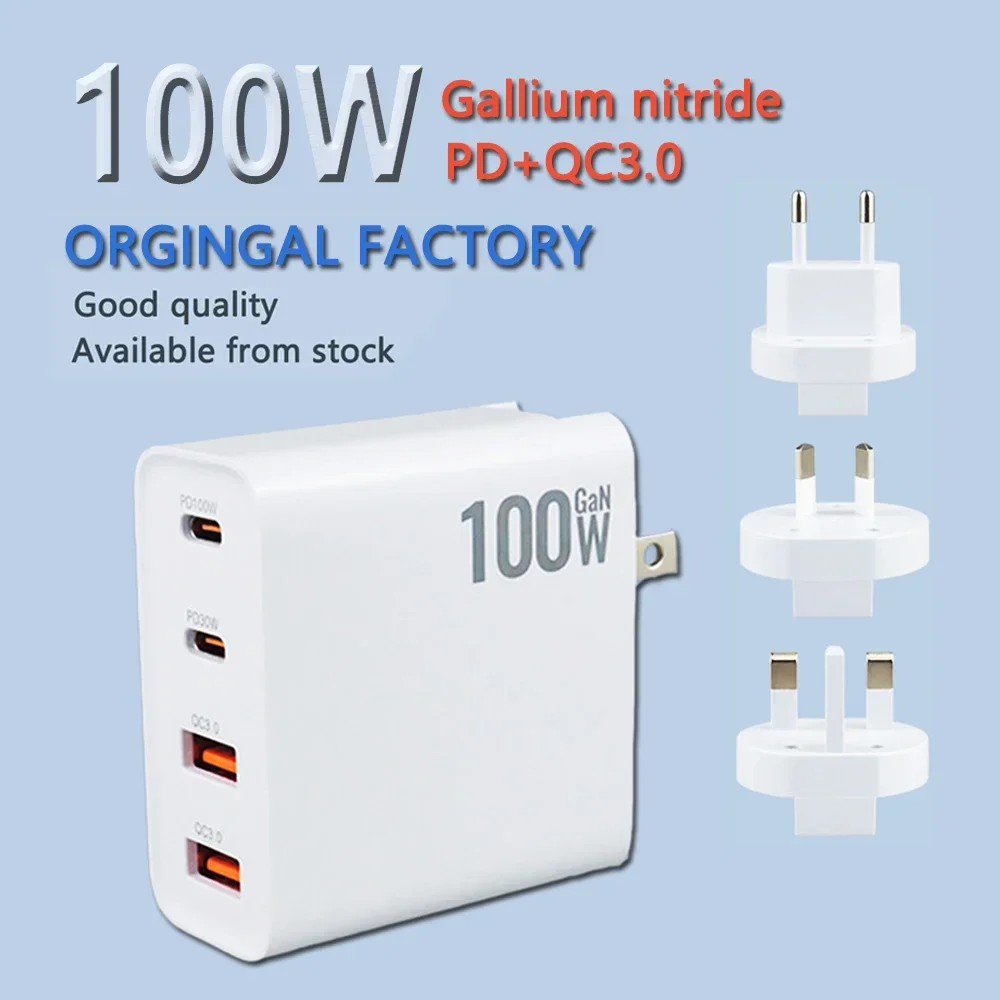

Product specification: American gauge/European gauge British gauge Australian gauge pin

Product color: white and black (customizable)

Boundary dimension: 63 * 40 * 22mm

Input voltage: AC 100-240V 50-60Hz

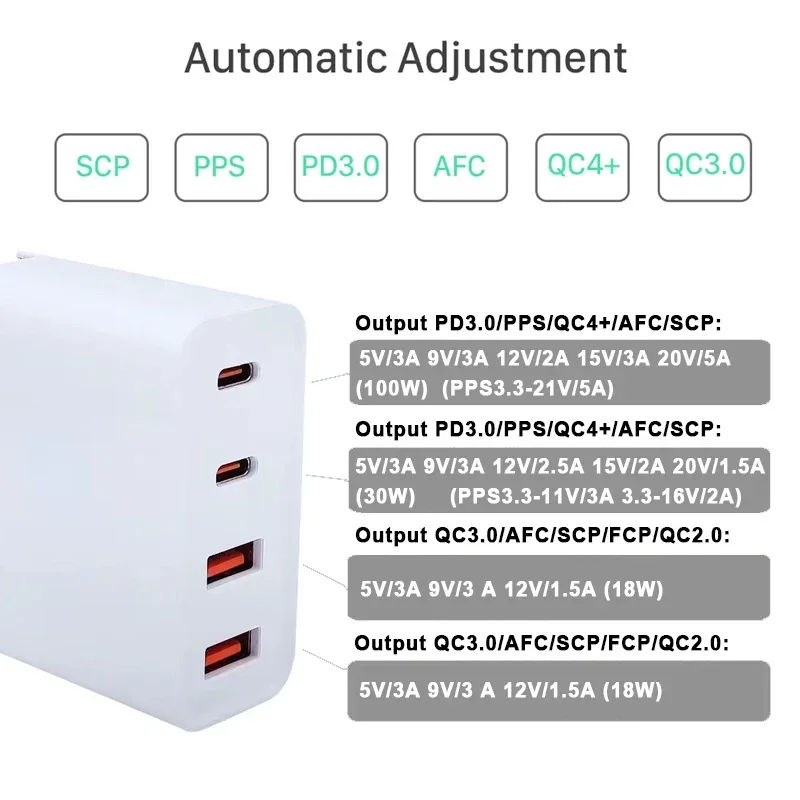

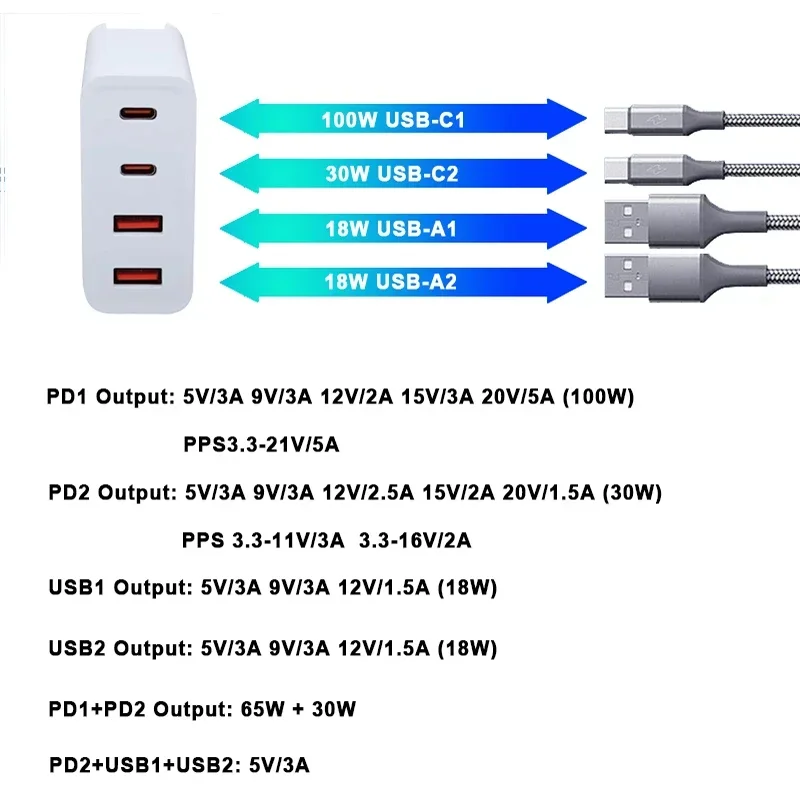

Output voltage: DC 5V3A/9V3A/12V3A/15V3A/20V5A

Output power: 100W

Work efficiency: 85%

Voltage regulation rate: 5%

Operating temperature: 0-50 ℃

Output ripple&noise: 80-120mVp

Output protection: short circuit protection, overvoltage protection, overcharge protection, overheating protection

Storage temperature: – 20 ℃+80 ℃

Aging: 100% full load aging

Protection function: overload protection 105% – 150% of rated power, automatic protection

Insulation resistance: input output ≥ 500M Ω input housing ≥ 500M Ω

Applicable products: smart phones, tablets, digital electronics and other devices.

Product features:

1: Good safety performance and high reliability

2: The shell is made of flame-retardant material, which is safer, moisture-proof and dust-proof.

3: Full current, full power, shorter charging time.

4: Ultra low no-load and standby energy loss, in line with national energy-saving standards.

5: Good anti-interference performance, built-in anti electromagnetic interference filter.

6: The input voltage range is wide, all 100-240V, in line with global standards.

7: The primary insulation performance is good, and the high frequency transformer is 100% vacuum soaked.

8: Full load high-temperature burning, 100% aging test.

9: It has overvoltage, overcurrent, overpower and short circuit protection functions.

10: All materials do not contain (within the specified limits) the six toxic substances of cadmium, chromium, lead, mercury, PBB and PBDE that are restricted in Europe
