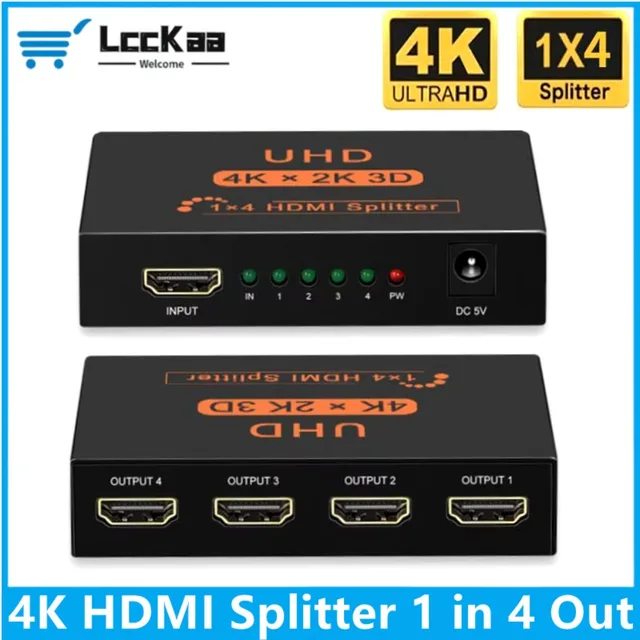

1 in 4 out
Introduction:
HDMISplitter1x4 uses a single HDMI source and can access multiple HDMI signals. This splitter allows an HDMI device to be easily split into four HDMI-compatible monitors or projectors. A splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. HDMI resolution is as high as 3840×2160/30Hz.
Features:
1. Support HDMI1.4b
2. Support full 3D
3. Support HDMI resolution up to 3840×2160/30Hz.
4. Support the maximum baud rate of 3.4g and the maximum bandwidth of 340Mhz
5. Support dark color B/10/12 bits.
6. Support the input of cable length up to 8m AWG-26HDMI and the output of cable length up to 8m AWG-26HDM.
7. Display single-source and multi-output high-definition signal source A/V receiver and set-top box from DVD player.
8.5V power adapter
Package include:
1pc Hdmi Splitter
1pc USB CableStacking connections can expand sharing more
The number of HDMl output ports can be significantly increased by stacking4K high-definition 3D visual effect
Support 4K*2K@30Hz ultra-clear resolution, stereoscopic 3D visual effects
Video playback without noise, no splash screen, enjoy the high-definition visual feastSuitable for a variety of scenarios
Widely used in video conferencing, conference presentations, TV shopping malls
Home theater, office, teaching and other occasions
1 in 2 out
Description:
The HDMI Splitter 1×2 offers HD video solution for supermarkets, shopping malls, HDTVs, STB, DVDs, projector factories, data control centers, information distribution, conference rooms presentation, education and training, corporation showrooms, home theaters and more.
Features:
One HDMI input signal split to two HDMI sink devices
Support Full HD, Full 3D
Support up to 1080P/60Hz
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR)
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
No loss of quality
SPECIFICATIONS:
HDMI version:HDMI 1.4a
HDMI resolution:UP TO 1920*1080/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:2.25Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI standard cable
Output cable distance:20m AWG26 HDMI standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensation)
Dimension (L x W x H):62x51x11mm
Package contents:
1* HDMI Splitter 1X2
1* USB power cable
