1-10PCS WeMos D1 Mini TYPE-C/Micro USB ESP8266 ESP-12F CH340G V2 Module WiFi D1 Mini Development Board 3.3V With Pin For Arduino

Feature:

1. Introduction: The WiFi Development Board is D1 mini, which is a mini NodeMcu Lua WiFi board based on ESP-8266EX.

2. Compatible with WeMos D1 Mini: The D1 Mini NodeMcu Lua 4M byte WLAN WiFi Internet WiFi Development Board is based on the ESP8266 ESP-12F for Arduino and is compatible with WeMos D1 Mini. It can be programmed in an Arduino IDE compatible environment.

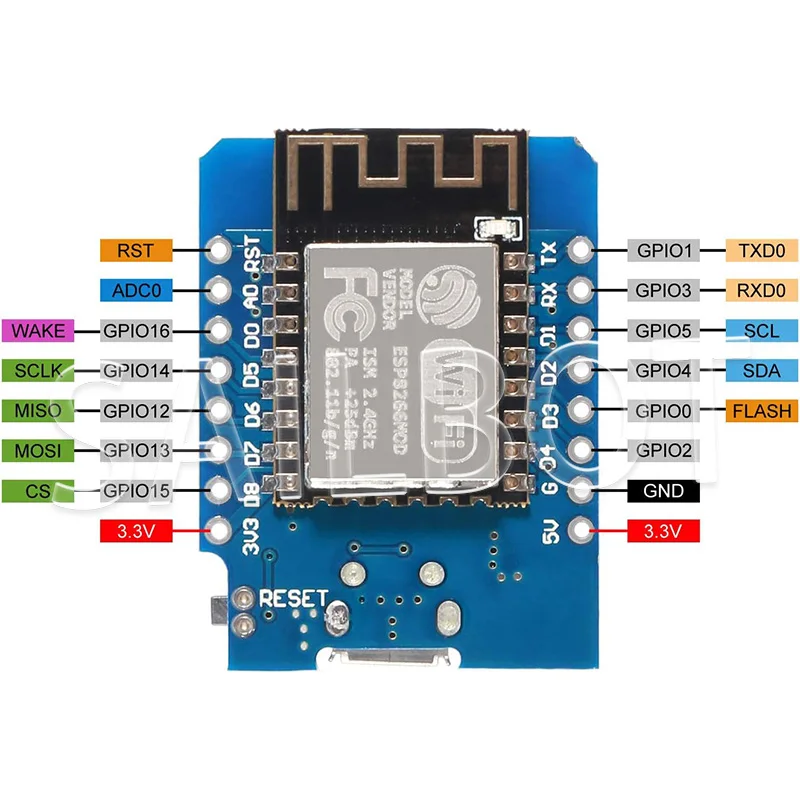

3. 11 Digital Input/Output Pins: The Expansion Board has 11 digital input/output pins, all of which have interrupts/PWM/I2C/support for 1 wire (excluding D0); 1 analog input (maximum 3.2V input). Micro USB connection; Compatible with Arduino; 1MB flash memory; 500mA resettable fuse.

4. Switching Power Supply: The Internet Development Board has a 4M byte. 5V 1A switching power supply (switching power supply) onboard.

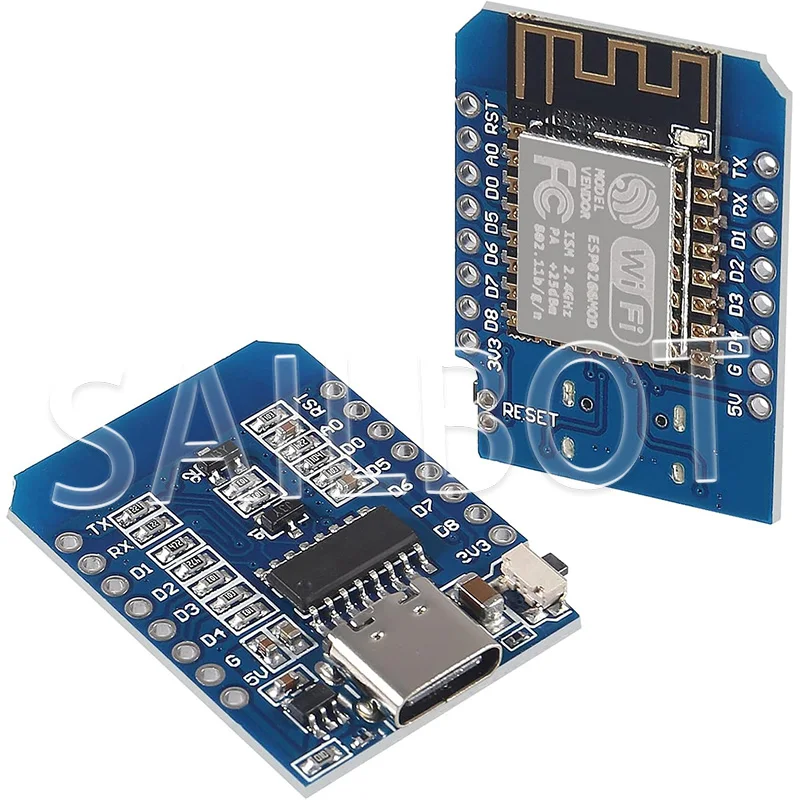

5. 2 Options: The WiFi Development Board has Micro and Type-C2 options for you to choose from.

Specification:

Origin: Mainland China

Product features:

1. Based on ESP-8266EX

2. rduino compatibility, programming using the rduino IDE

3.11 XI/O pin

4.1XADC pin (input 0-3.3V)

5. Support OTA launch

6. Onboard 5V 1A switching power supply (maximum input 24V)

Name: NodeMcu Lua WIFI Development Board

Interface: Micro, Type-c (optional)

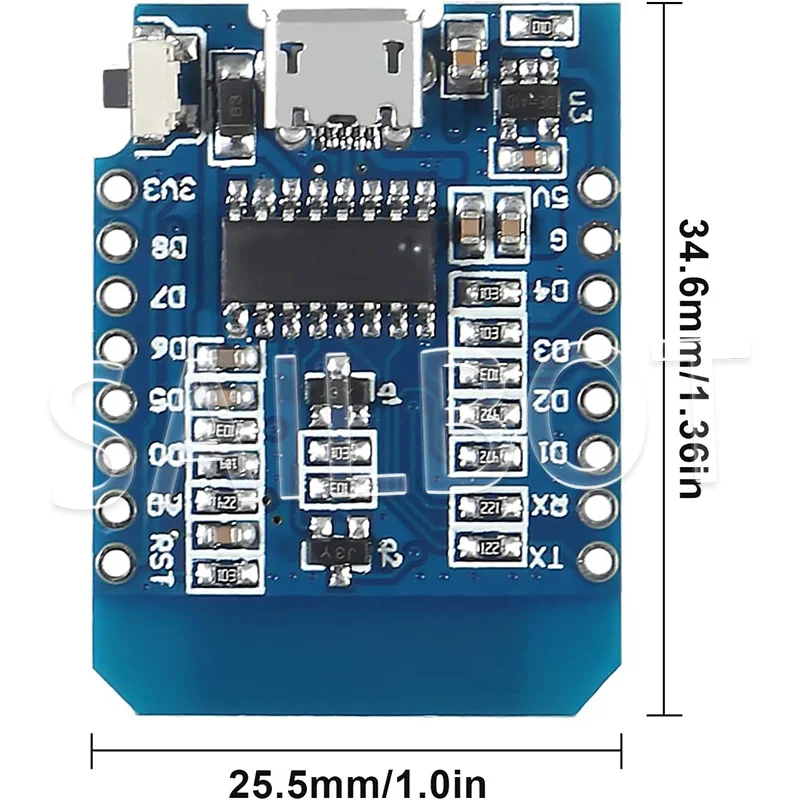

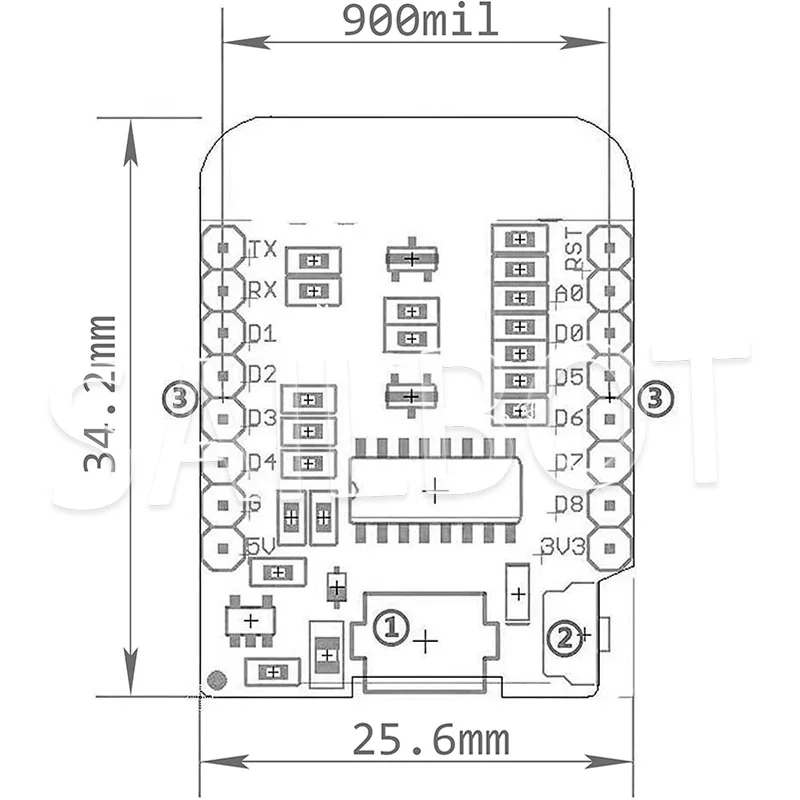

Product size: 35 * 25 * 7mm/1.3*0.9*0.2in
