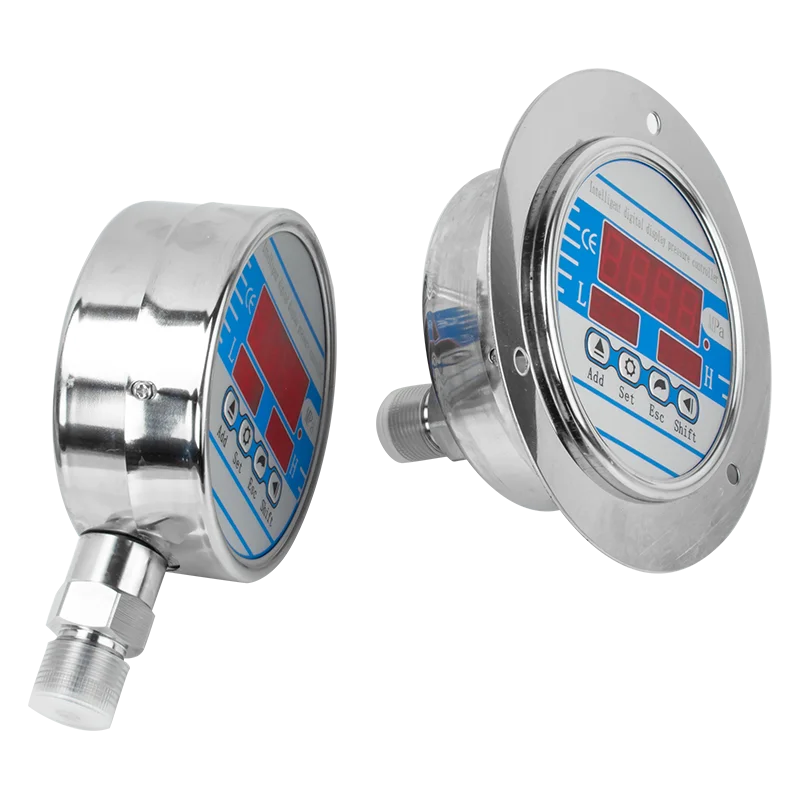

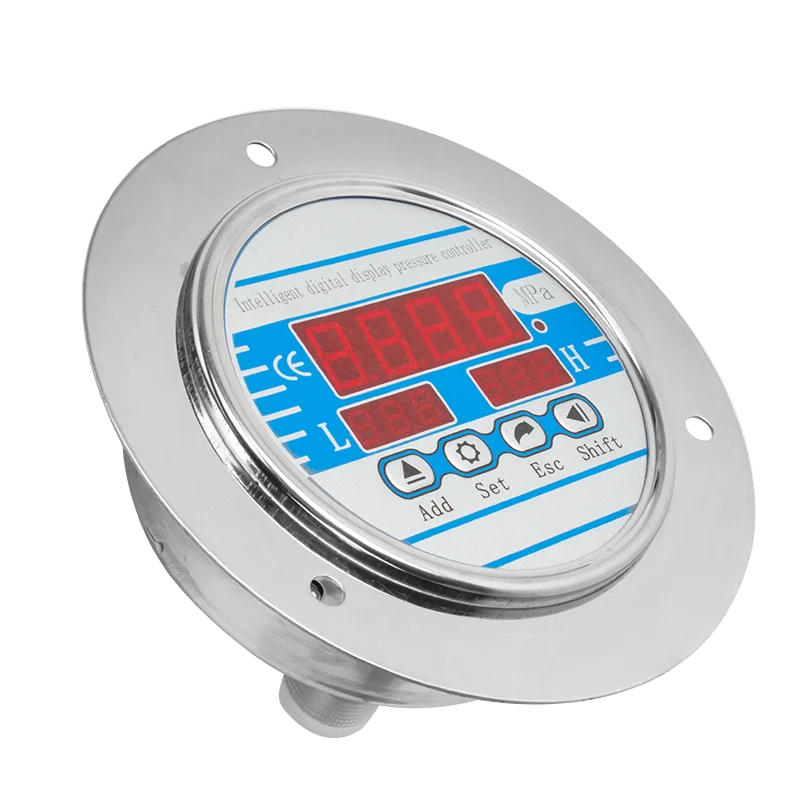

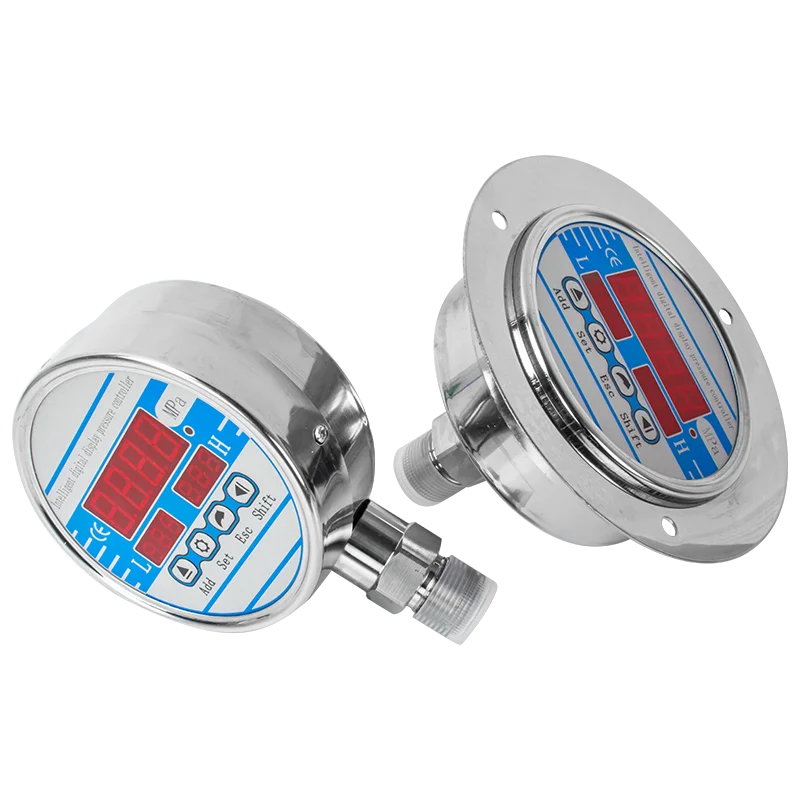

0-60Mpa Intelligent Digital Electric Contact Pressure Gauge Digital Pressure Controller Pressure Gauge Manometer
Notes: Dial size 100mm, if you need customize data, please contact us.
Description of Digital Electric Contact Pressure Gauge
<1>. Intelligent digital electric contact pressure gauge is also called intelligent digital pressure controller, is an intelligent control instrument which integrates pressure measurement, digital display and control together.
<2>. Using imported high-quality sensors and high-quality electronic components, ensure the high accuracy and stability of the instrument. With strict and precise temperature and linear compensation, the instrument adopts CPU modular signal processing, higher and lower limit display setting control, it can set control points at will.
<3>. Compared with the traditional mechanical electric contact pressure gauge, the intelligent digital electric contact pressure gauge is more accurate in measurement, more sensitive in control and more convenient in use. It is widely used in petroleum, industry, electric power, construction, medical equipment and other fields.
Technical Parameters of Digital Electric Contact Pressure Gauge
|
Product name |
Intelligent digital electric contact pressure gauge |
|
Model |
QDX50B |
|
Measuring range |
-0.1~0~100MPa (Can be customized) |
|
Measuring medium |
Gas,liquid,oil,water |
|
Pressure type |
Gage pressure, absolute pressure, differential pressure |
|
Accuracy |
0.5%FS; 0.2%FS |
|
Respond time |
<0.1S |
|
Long-term stability |
0.2% FS/year |
|
Thread type |
M20*1.5, G1/2, G1/4Â (Can be customized) |
|
Dail size |
100mm |
|
Display digits |
4 digits LED display |
|
Power supply |
9~24VDC |
|
Shell material |
304 stainless steel |
|
Ambient temperature |
-20~80℃ |
|
Relay |
Single / Dual relay, passive switch output |
|
Control logic |
5 or 4 wires control mode |
Product Features of Digital Electric Contact Pressure Gauge
Dimension of Digital Electric Contact Pressure Gauge
Control Logic of Digital Electric Contact Pressure Gauge
