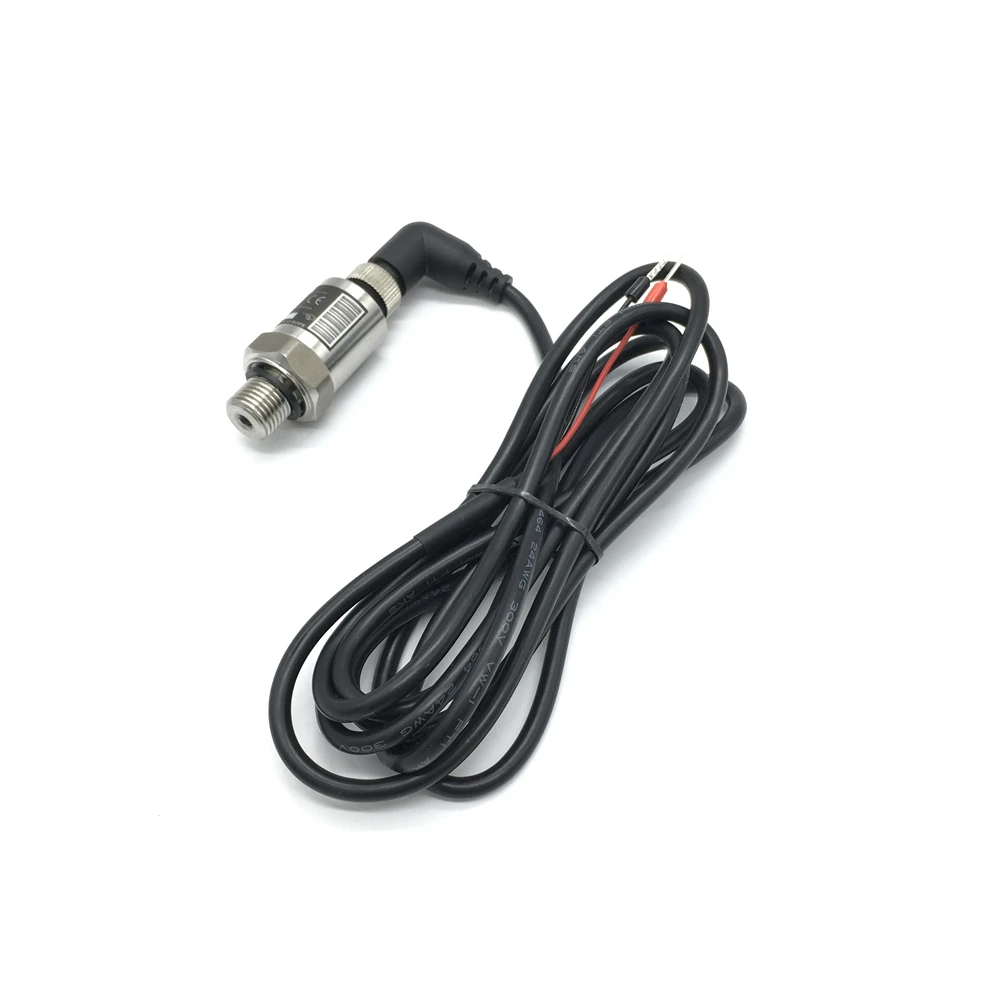

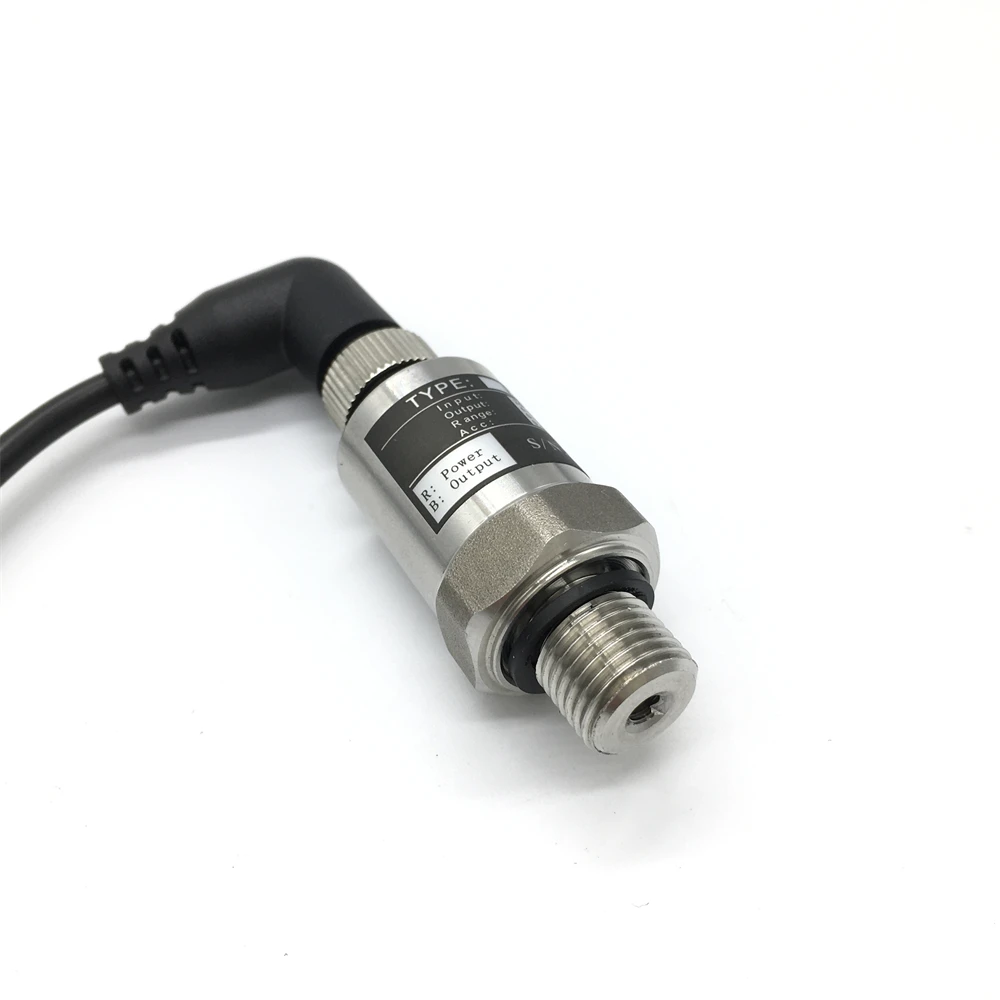

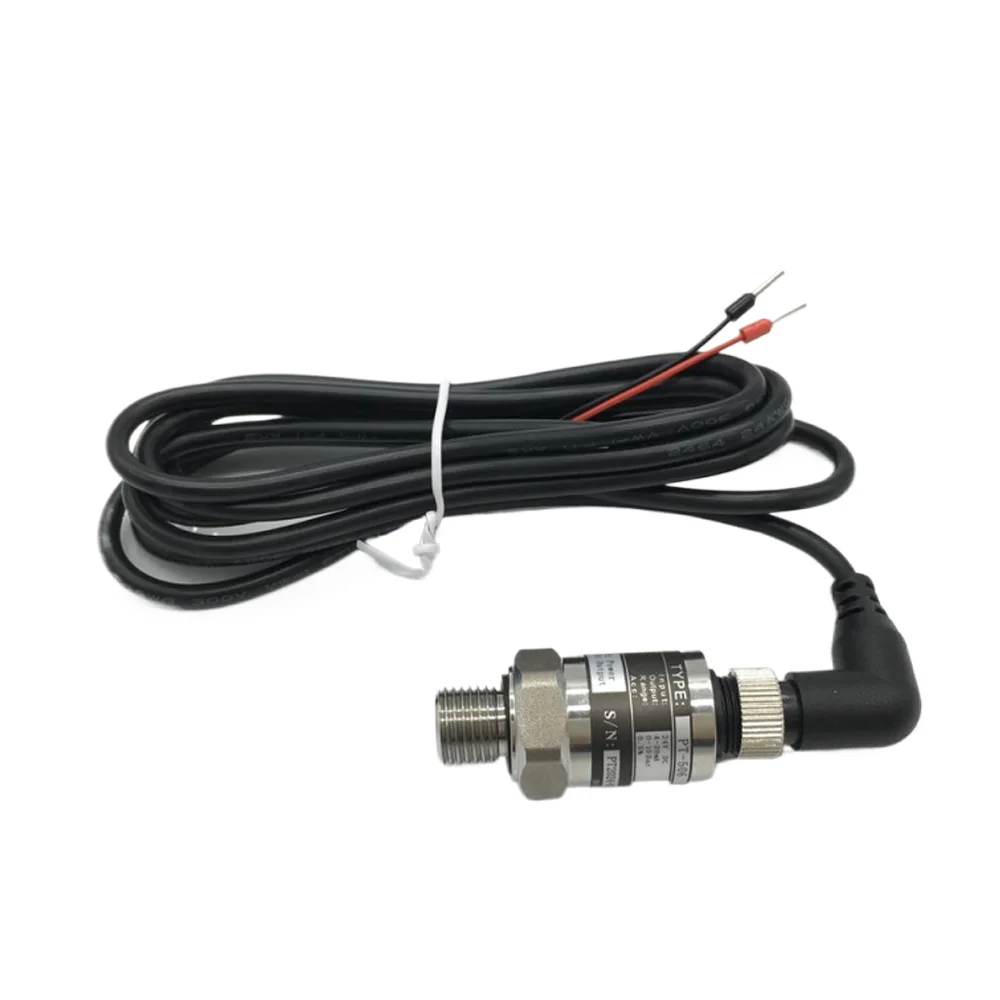

0.5%FS Pressure Transducer 0-1/1.6/2.5Mpa IP68 PT506 Pressure Transmitter Variable Frequency Water Pump Sensor DC24V G1/4 4-20mA

Capacity Range: 0~10 Bar (0~1Mpa=0~10KG) /0~16 Bar (0~1.6Mpa=0~16KG) /0~25 Bar (0~2.5Mpa=0~25KG)
Comprehensive Precision: ±0.5%FS
Working Voltage: 24VDC (Wide voltage range :10-33VDC)
Output Signal: 4-20mA
Defend Grade: IP68 (Compatible media: non corrosive media such as water, air, engine oil, etc)
Thread size: 13mm (2-port, G1/4)
Overload pressure:200%FS
Temperature drift:± 0.03%FS/°C
Overload Capacity: 2-4 times
Using Temperature Range: -40 to 85°
Housing Material:304 Stainless Steel
Pressure Connection: DIN type

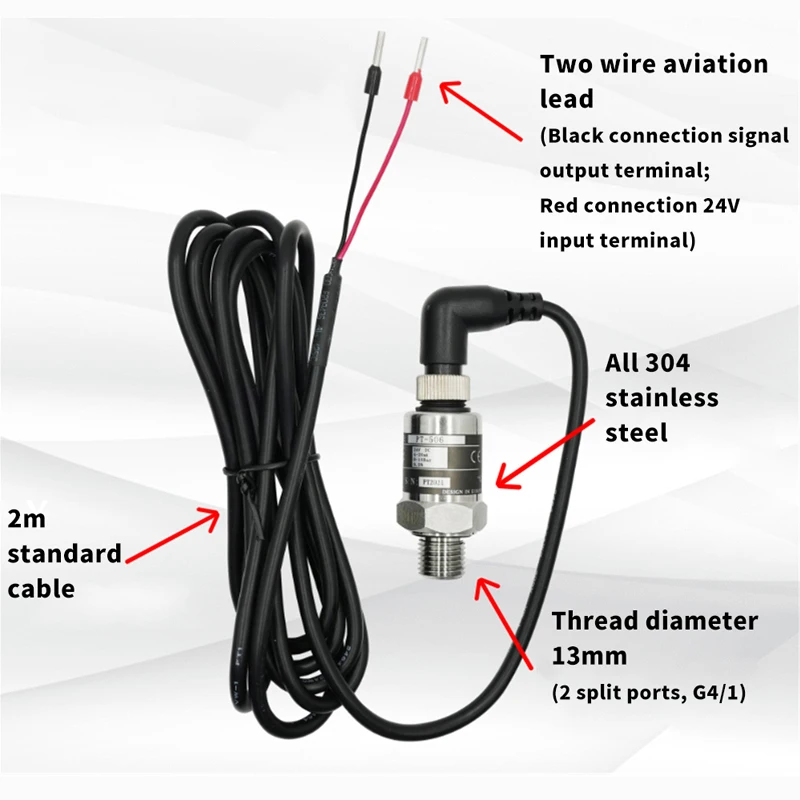

Cable Connection: Red (IN+); Black (IN-)
Cable Length: 2 meters (Customizable)

Product Overview:
PT-506 pressure transmitter is a specialized product developed by our company according to the needs of the water treatment industry, widely used in the fields of variable frequency pumps, complete water supply, and air conditioning equipment. Professional waterproof hammer impact, good electrical performance and long-term durability make it the preferred choice in similar industries and can directly replace various similar products.
Main features:
Adopting a highly integrated bridge pressure sensor signal conditioning dedicated advanced chip that meets the AEC-Q100 standard, it has a 24 bit ADC for input voltage detection, high-precision 1X~256X variable gain instrument amplification, up to 8 times digital gain, low-temperature drift 16 bit DAC, built-in MCU based universal sensor calibration logic, EEPROM programmable multiple times, and high cost-effectiveness; Multiple pressure ranges and electrical outputs; Compact structure and low cost; Good electrical performance; Excellent waterproof hammer design; The overall molded plug has better waterproof performance; Long term stability is good.

Applications:
1.Widely used in variable frequency pumps, complete water supply, air conditioning equipment, and water treatment fields.
2.Professional waterproof hammer impact, good electrical performance, and long-term stability make it the preferred choice in similar industries.
3.Simple exterior design, high cost-effectiveness, and easy installation.
4.Special leak prevention technology with good media compatibility.
5.Excellent waterproof hammer design.
6.Anti overload, strong impact resistance, and good linearity.
7.Small temperature drift, high accuracy, stable and reliable performance.
8.Excellent EMC performance and compliance with CE certification.
